s-afc install on an n/a

Thread Tools

Search this Thread

Old 04-18-10, 08:47 PM
  #1
PUPPETFIGHT

Thread Starter
iTrader: (9)

rotorybullit's Avatar

Join Date: Mar 2007
Location: oregon
Posts: 77
Likes: 0
Received 1 Like on 1 Post
s-afc install on an n/a
has anyone done this? if so what wires do i need to hook up ?
rotorybullit is offline
Reply Like
Old 04-18-10, 09:25 PM
  #2
Rotary Enthusiast

iTrader: (17)

hiroichi1515's Avatar

Join Date: Dec 2007
Location: Texas
Posts: 785
Likes: 0
Received 0 Likes on 0 Posts
Here is the link http://www.1300cc.com/howto/how2/safc.htm. have fun!!!
hiroichi1515 is offline
Reply Like
Old 04-19-10, 08:17 PM
  #3
PUPPETFIGHT

Thread Starter
iTrader: (9)

rotorybullit's Avatar

Join Date: Mar 2007
Location: oregon
Posts: 77
Likes: 0
Received 1 Like on 1 Post
i did that and it didnt seem to work . are the wires diff?
rotorybullit is offline
Reply Like
Old 04-19-10, 10:34 PM
  #4
whats going on?

iTrader: (1)

SirCygnus's Avatar

Join Date: Mar 2004
Location: atlanta ga
Posts: 4,929
Received 8 Likes on 7 Posts
Originally Posted by rotorybullit
i did that and it didnt seem to work . are the wires diff?
are they?
SirCygnus is offline
Reply Like
Old 04-21-10, 08:49 AM
  #5
Racer
iTrader: (4)

NI_Racing's Avatar

Join Date: Apr 2009
Location: Fl
Posts: 219
Likes: 0
Received 0 Likes on 0 Posts
Awesome link, thanks. Gonna give this a whirl this weekend.
NI_Racing is offline
Reply Like
Old 04-21-10, 10:01 AM
  #6
Senior Member

iTrader: (1)

Chriz88DX's Avatar

Join Date: May 2007
Location: Georgia
Posts: 387
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by SirCygnus
are they?
whats up man yout turbo gtu still running





as for the thread you need to figure out if your computer is an s4 or a s5
Chriz88DX is offline
Reply Like
Old 04-22-10, 09:07 PM
  #7
PUPPETFIGHT

Thread Starter
iTrader: (9)

rotorybullit's Avatar

Join Date: Mar 2007
Location: oregon
Posts: 77
Likes: 0
Received 1 Like on 1 Post
i have an s5, non turbo , n351 ecu.
rotorybullit is offline
Reply Like

Trending Topics

Old 04-22-10, 10:53 PM
  #8
Rotary Enthusiast

iTrader: (17)

hiroichi1515's Avatar

Join Date: Dec 2007
Location: Texas
Posts: 785
Likes: 0
Received 0 Likes on 0 Posts
If it doesn't turn on, you can try wiring it up directly to a 12v source and see if that works. If not you bought a broken unit. I believe two wires go to the 12v source, and one goes to the ground. You can check the link for the specific colors. I tested mine right on the battery before I bought it.
hiroichi1515 is offline
Reply Like
Old 04-23-10, 08:57 AM
  #9
Turbo power, activate!

iTrader: (7)

Black Knight RX7 FC3S's Avatar

Join Date: Nov 2002
Location: Philadelphia
Posts: 1,708
Received 5 Likes on 5 Posts
as hirochi said, you can test it on the battery, red wire to positive, black to ground and if it poweres up, its good, if not, its a defective unit.
Black Knight RX7 FC3S is offline
Reply Like
Old 04-23-10, 12:00 PM
  #10
Senior Member

iTrader: (1)

Chriz88DX's Avatar

Join Date: May 2007
Location: Georgia
Posts: 387
Likes: 0
Received 0 Likes on 0 Posts
red to power brown and black to ground
Chriz88DX is offline
Reply Like
Old 04-23-10, 12:54 PM
  #11
PUPPETFIGHT

Thread Starter
iTrader: (9)

rotorybullit's Avatar

Join Date: Mar 2007
Location: oregon
Posts: 77
Likes: 0
Received 1 Like on 1 Post
it has power and turns on fine. just not sure what wires to hook them to,
im gonna try a few different wires and see if i read the write up wrong.
rotorybullit is offline
Reply Like
Old 04-23-10, 01:33 PM
  #12
Senior Member

iTrader: (1)

RotorBalls's Avatar

Join Date: Mar 2001
Location: Omaha, NE
Posts: 539
Received 2 Likes on 2 Posts
Nice link...I've had my safc for a couple years now and still haven't installed it on my NA. Any recommendations on brand of wideband?
RotorBalls is offline
Reply Like
Old 04-23-10, 04:15 PM
  #13
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts

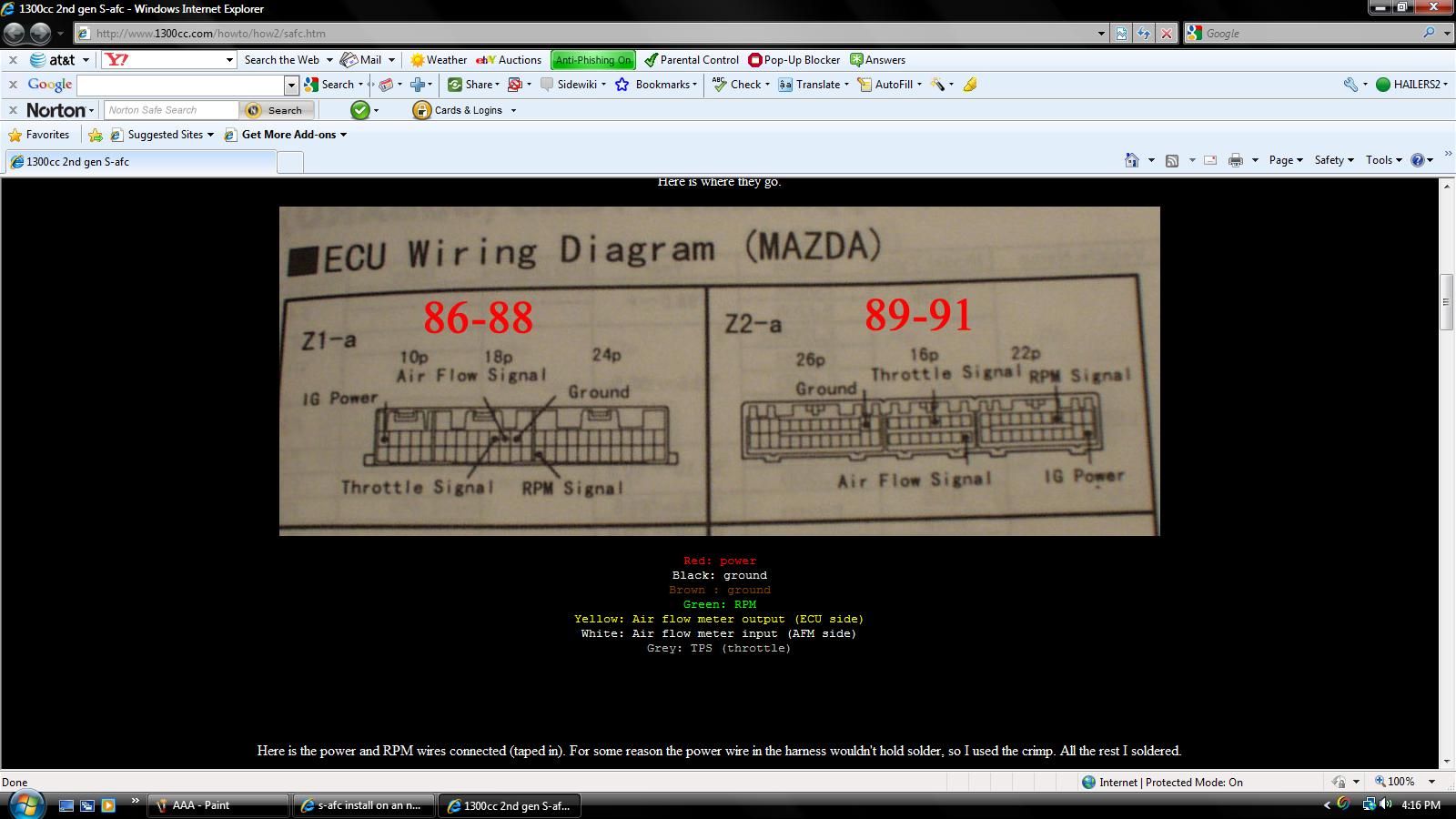

http://www.1300cc.com/howto/how2/safc.htm

Just what part of that link do you not understand?
Attached Thumbnails s-afc install on an n/a-safcinstall.jpg
HAILERS is offline
Reply Like
Old 04-23-10, 05:11 PM
  #14
PUPPETFIGHT

Thread Starter
iTrader: (9)

rotorybullit's Avatar

Join Date: Mar 2007
Location: oregon
Posts: 77
Likes: 0
Received 1 Like on 1 Post
Red face
got it workin. the pic og the ecu wiring is the ecu side, i was thinkin it was the wire side, duh.
rotorybullit is offline
Reply Like
Old 04-23-10, 05:13 PM
  #15
PUPPETFIGHT

Thread Starter
iTrader: (9)

rotorybullit's Avatar

Join Date: Mar 2007
Location: oregon
Posts: 77
Likes: 0
Received 1 Like on 1 Post
Red face
got it workin. the pic of the ecu wiring is the ecu side, i was thinkin it was the wire side, duh.
rotorybullit is offline
Reply Like
Old 04-23-10, 07:42 PM
  #16
PUPPETFIGHT

Thread Starter
iTrader: (9)

rotorybullit's Avatar

Join Date: Mar 2007
Location: oregon
Posts: 77
Likes: 0
Received 1 Like on 1 Post
anyone have any tuning tips??
rotorybullit is offline
Reply Like
Old 04-23-10, 08:45 PM
  #17
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
The pictures are looking from the WIRE side of the ECU plug. Or if no plug on the ECU, then looking directly into the ECU's jacks.
HAILERS is offline
Reply Like
Old 04-23-10, 09:45 PM
  #18
Turbo power, activate!

iTrader: (7)

Black Knight RX7 FC3S's Avatar

Join Date: Nov 2002
Location: Philadelphia
Posts: 1,708
Received 5 Likes on 5 Posts
first thing you should do to tune with the safc, get a wideband.

I dont know the a/f ratio for a n/a engine but from what I remember reading, 12:1 ratio under load is what you are looking for, 13.5-14 at idle, 14-15 at light cruising (highway)
Black Knight RX7 FC3S is offline
Reply Like
Old 04-23-10, 11:57 PM
  #19
Rotary Enthusiast

iTrader: (1)

solareon's Avatar

Join Date: Mar 2008
Location: VA Beach
Posts: 797
Likes: 0
Received 0 Likes on 0 Posts
Should sell that SAFC to somebody else and get an Rtek. More adjust-ability and no hacked up harness and full timing control
solareon is offline
Reply Like
Old 04-24-10, 12:29 PM
  #20
PUPPETFIGHT

Thread Starter
iTrader: (9)

rotorybullit's Avatar

Join Date: Mar 2007
Location: oregon
Posts: 77
Likes: 0
Received 1 Like on 1 Post
great . thanks
rotorybullit is offline
Reply Like
