Rotor housing Judgment Needed...
#3
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts
You beadblasted the inner housing surface? Uh oh. If not for that, I would guess you could fill that pit with some of the metal / epoxy putty that Mazdatrix sells (NOT JB weld!). There is a very special factory process that makes the inner contact surface. If you could get that gray residue off the inside of the surface you could inspect it and make a decision about if it would be possible to reuse it. Looks like there is a big scratch on it (second pic), which is a no-no for reusing a housing.
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
My amateur opinion is that its clean enough to be a paper weight. Remember the word amateur(probably misspelled). Only five or six engines. One failure a year after the rebuild on one. It was the outer 0'ring on the rear housing. Corrosion. Its was too close to the oring and it finally leaked big time. The wall of the groove on the rear housing collapsed. I learned my lesson.
See https://www.rx7club.com/forum/attach...postid=1350789
See https://www.rx7club.com/forum/attach...postid=1350789
#5
Full Member
Thread Starter
Join Date: Jul 2002
Location: Lexington, SC
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
I see.. maybe too close...
http://www.geocities.com/thefastn2fu...neteardown.htm
my other photos...
The Trachoid Surface has tape on the housings to protect it in the cleaning process...looks like a scratch but its not..
my other photos...
The Trachoid Surface has tape on the housings to protect it in the cleaning process...looks like a scratch but its not..
#6
Full Member
Thread Starter
Join Date: Jul 2002
Location: Lexington, SC
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Hailers...
The " metal / epoxy putty " is that a viable solution?
or a solution for about 10,000 miles? I want atleast 50k out of this engine.. thanks
or a solution for about 10,000 miles? I want atleast 50k out of this engine.. thanks
#7
What Subscription?
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts
Like I said earlier, I'll look at the housiings sunday. That corrosion looks bad. And that engine has a history of water in the front housing. I might have tried Devcon if the engine did not have a previous history of Coolant issues.
We may have a good housing in the donor engine we tear down Sunday!!! Relax and enjoy Saturday!!!
We may have a good housing in the donor engine we tear down Sunday!!! Relax and enjoy Saturday!!!
Trending Topics
#8
No longer cares
Join Date: Apr 2002
Location: just a bit north of your business
Posts: 1,345
Likes: 0
Received 0 Likes
on
0 Posts
using a combination of the epoxy and some form of agressive sealant for the o-ring doping (not hylomar) you should be able to get away with using that housing. I didn't use hylomar on my engine because I would rather not have a water soluble sealant on a water passage. I used another form of non-hardening flexible gasket maker and the name escapes me right now. (devcon product thats black and sticky as ****) considering that its an outter o-ring surface in question and the outter edge of the o-ring mating surface is still intact there will be very little load on the epoxy filling that corrosion and you'll have no likelihood of having water in the chambers from that situation.
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I'll backtrack here. It was the inner o'ring groove that collapsed from corrosion on the engine that I mentioned.

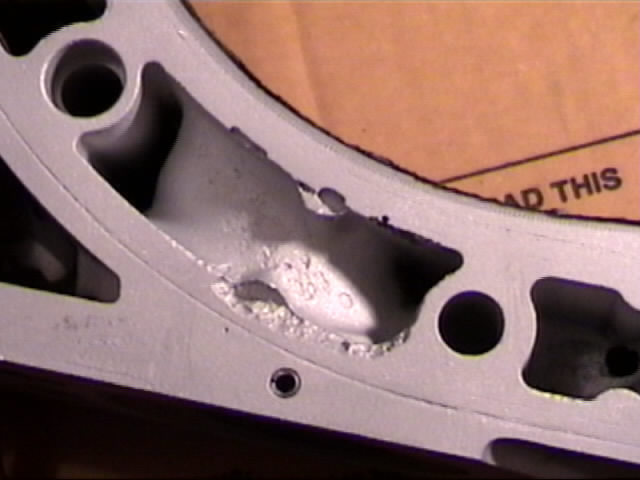

Looking at that picture of yours, the o'ring sits inboard of that roll pin in the picture. It sits inboard of that roll pin by the dia of the roll pin in the picture, so the corrosion is already in the o'ring area.
Yeah, try the Devcon and write back in a few years telling us how it worked out. I thought it over and agree with Jimmy325 to a degree. Wouldn't do it myself though. I'm too wormy.
Looking at that picture of yours, the o'ring sits inboard of that roll pin in the picture. It sits inboard of that roll pin by the dia of the roll pin in the picture, so the corrosion is already in the o'ring area.
Yeah, try the Devcon and write back in a few years telling us how it worked out. I thought it over and agree with Jimmy325 to a degree. Wouldn't do it myself though. I'm too wormy.
#11
I would also suggest getting a new housing just to make sure. (or a used in exc. condition to save money)
You don't want to be puttting too much faith in "decent" or "fixed up" housings on a high performance engine.
If you decide to fix it, then as others have said, the sealant to use is DEVCON it's what ALL the top builders use when they make their monster ports, peripheral ports, and repairing stuff.
You don't want to be puttting too much faith in "decent" or "fixed up" housings on a high performance engine.
If you decide to fix it, then as others have said, the sealant to use is DEVCON it's what ALL the top builders use when they make their monster ports, peripheral ports, and repairing stuff.
#12
Full Member
Thread Starter
Join Date: Jul 2002
Location: Lexington, SC
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
thanks to all
It looks like a may get a new housing.. I need this car to be my 'Daily Driver' (for an extended amount of time)before the wife shoots me..lol!
Engine will go in:>
http://www.geocities.com/thefastn2furious/
I just want this RX7 to be fixed and completed.. I have a Turbo II(attached photo) waiting in the wings for me to Overhual and port...
Engine will go in:>
http://www.geocities.com/thefastn2furious/
I just want this RX7 to be fixed and completed.. I have a Turbo II(attached photo) waiting in the wings for me to Overhual and port...
#13
No longer cares
Join Date: Apr 2002
Location: just a bit north of your business
Posts: 1,345
Likes: 0
Received 0 Likes
on
0 Posts
I agree that for the most trouble free easiest remedy that you would use a better housing. But when you think of the characteristics of an epoxy designed for aluminum, you're dealing with a substance that is far easier to shape than welding more aluminum to the housing and then machine down flush. The outter o-ring has to handle a whopping 15psi of fluid pressure. (not much!) and the pressure is going from the bad side of that groove outward which actually pushes the o-ring into the housing. All of this is irrelevant once the material has been replaced with the epoxy anyways and the epoxy will not corrode, possibly even preventing the housing from additional deterioration.
I'd personally go with a new housing, but if you were really hard up I was trying to make it easier on ya by offering a cheap solution.
I'd personally go with a new housing, but if you were really hard up I was trying to make it easier on ya by offering a cheap solution.
