racing seat installation
ok so i just bought 2 recaro racing seats (touring). the only thing is the shop would not install them for me. so how do i do it? i looked through the haynes manual and it doesnt give any solid info on how? is there a link that can assist me? because i will probably have to install the seats when i pick them up this afternoon as they wont fit in my rx.
aswell, i just posted a thread about the gang switch or master switch for my rx7 it is an 86 rx7 gxl NA. where is this switch? how do i locate it? there is a short in it apparently as the electrical shop pointed out to me. my windows do not roll up or down and it is very frustrating. please advise!
aswell, i just posted a thread about the gang switch or master switch for my rx7 it is an 86 rx7 gxl NA. where is this switch? how do i locate it? there is a short in it apparently as the electrical shop pointed out to me. my windows do not roll up or down and it is very frustrating. please advise!
#2
yes,thats me \/
iTrader: (1)
Join Date: Mar 2006
Location: Eaton, CO
Posts: 861
Likes: 0
Received 0 Likes
on
0 Posts
there are 4 bolts holding the stockers down i think. just unbolt that, and modify the brackets from the stockers to fit those seats(welding involved i think), or buy brackets that are rx7 specific for that seat. I am sure there is a shop that will do it, kind of weird that shop wouldnt do it.
#3
Rotary Freak
iTrader: (7)
Originally Posted by cloudlight69
ok so i just bought 2 recaro racing seats (touring). the only thing is the shop would not install them for me. so how do i do it? i looked through the haynes manual and it doesnt give any solid info on how? is there a link that can assist me? because i will probably have to install the seats when i pick them up this afternoon as they wont fit in my rx.
The OEM passenger seat has a bit of a strange slider/track arrangement in that the inner slider/track is at a different level than the outer slider/track. The inner track is kind of installed up inside the seat bottom while the outer one is at a "lower" level. That's because the inner track is actually bolted to the side of the center transmission tunnel. You will see what I mean when you remove the OEM seats.

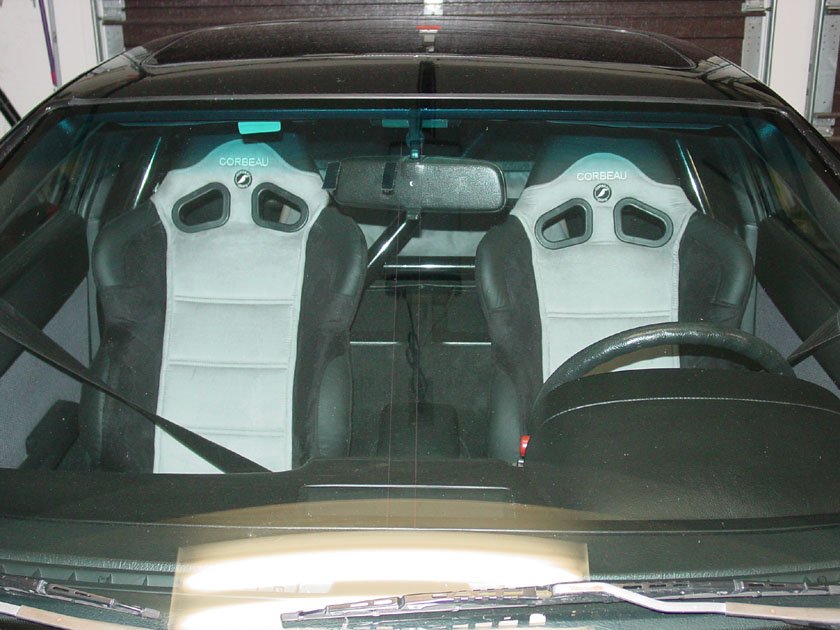

Using the Corbeau mounting brackets, the Corbeau seat fit fine in the drivers side with adequate headroom when wearing a helmet. The identical Corbeau seat bolted right in to the passenger side with the Corbeau bracket, but it sat significantly higher due to the staggered OEM mounting points. The attached image will give you an idea of what I'm referring to. So, if you need helmet headroom in the passenger side, you may run into this problem. I hope not. I ended up returning the seats and am waiting for a refund. I have put this project aside for the time being but will get back to it before Spring.
#4
very sleepy!!
Join Date: Jan 2005
Location: Tampa, FL
Posts: 1,052
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by cdaleracer669
there are 4 bolts holding the stockers down i think. just unbolt that, and modify the brackets from the stockers to fit those seats(welding involved i think), or buy brackets that are rx7 specific for that seat. I am sure there is a shop that will do it, kind of weird that shop wouldnt do it.
Originally Posted by Go48
The OEM passenger seat has a bit of a strange slider/track arrangement in that the inner slider/track is at a different level than the outer slider/track. The inner track is kind of installed up inside the seat bottom while the outer one is at a "lower" level. That's because the inner track is actually bolted to the side of the center transmission tunnel. You will see what I mean when you remove the OEM seats.
#5
Full Member
Join Date: Oct 2005
Location: Federal Way
Posts: 164
Likes: 0
Received 0 Likes
on
0 Posts
check this post out, hope it helps any.
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/need-help-installing-racing-seats-496323/
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/need-help-installing-racing-seats-496323/
Trending Topics
#8
Go48,
Noticedd you returned your seats...not to your liking? I ordered some Corbeau CR1 Seats with the brackets. Those look like the seats I got, only I got black...and by the looks of it, you have a 4pt or 6pt cage as I do. I was concerned about headroom as well as my Sparco Pro 2000's sat real high.
Any issues with the seats fitting in your car with the cage? I dont care about the passenger side...all I need is clearance for myself.
Anyhow, what type of seats are those...model. Looks like CR1's.
Thanks.
Noticedd you returned your seats...not to your liking? I ordered some Corbeau CR1 Seats with the brackets. Those look like the seats I got, only I got black...and by the looks of it, you have a 4pt or 6pt cage as I do. I was concerned about headroom as well as my Sparco Pro 2000's sat real high.
Any issues with the seats fitting in your car with the cage? I dont care about the passenger side...all I need is clearance for myself.
Anyhow, what type of seats are those...model. Looks like CR1's.
Thanks.
#9
Rotary Freak
iTrader: (7)
Originally Posted by sirshan
Go48, Noticedd you returned your seats...not to your liking? I ordered some Corbeau CR1 Seats with the brackets. Those look like the seats I got, only I got black...and by the looks of it, you have a 4pt or 6pt cage as I do. I was concerned about headroom as well as my Sparco Pro 2000's sat real high.
Any issues with the seats fitting in your car with the cage? I dont care about the passenger side...all I need is clearance for myself. Anyhow, what type of seats are those...model. Looks like CR1's.
Any issues with the seats fitting in your car with the cage? I dont care about the passenger side...all I need is clearance for myself. Anyhow, what type of seats are those...model. Looks like CR1's.
I returned the seats but kept the mounting hardware since I had drilled holes in the passenger side mount in order to mount the CR1s directly to the mount without the sliders. That gave me a bit more headroom, but not enough unfortunately. I plan to look into different Corbeau seats at a local race shop sometime after the holidays to see if one of their models will work on the passenger side. I suspect that will not work out, so plan B is to look into having a pair of OEM seats modified at an upholstery shop to add harness ports and have them recovered. Not sure that is something that can be done, but that would certainly solve the height problem.
I have an Autopower roll bar--not a cage--so there are no bars above the seats. The roll bar did not interfer with the seats at all. Good luck with your seats!
