BowlerGT

Ok I am going to be adding the switch since my rx7 flooded tonight. Anyways I was looking under the dash for the plug and I believe I found the right one, it was right above the gas pedal and it was yellow with a white plug I believe. The plug had 5 conections on it but 2 of the connections had two wires going into it for a total of 7 wires, do I still cut the middle wire and splice the switch there?

pfsantos

iTrader: (1)

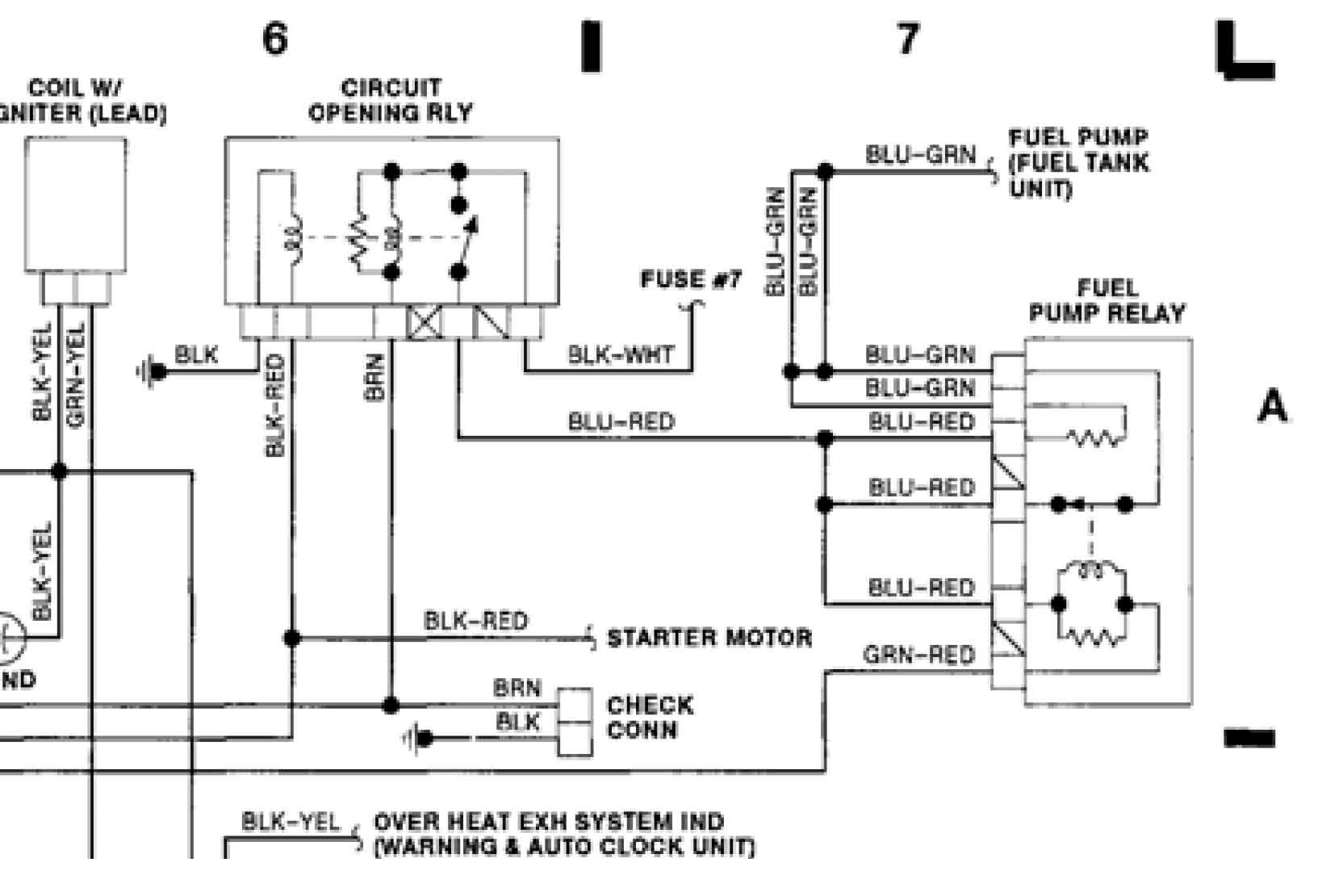

BLUE-RED WIRE to interrupt fuel pump, even while starting.

BRN wire (low current side) is nice to shut the pump off, but it will still run while starting.

BowlerGT

Thanks for the picture!

BowlerGT

Ok maybe Im missing something I didnt see that plug under the dash. I took some pictures under there maybe someone can point me in the right direction? I'm probably just blind I thought it was the yellow/clear plug but the wire colors dont match up

Jaydog8080

I have the same question as you, i cut the middle wire and it did not work.

BowlerGT

On the plug with the yellow and white, I cut the middle wire and installed my 2 prong switch and it works great, I flip it and the car dies. I think theres like a little beep sound when I flip it

Jaydog8080

was the wire black with a white strip and does this work if car is already flooded

BowlerGT

Hasnt flooded yet, I shut off the switch and let the car die when I'm done driving and just flip it on when I go to restart it.
