question about jdm swaps?
06-29-09, 12:36 AM
#1
Full Member
Thread Starter
Join Date: Sep 2008
Location: carteret nj
Posts: 235
Likes: 0
Received 0 Likes
on
0 Posts
question about jdm swaps?
So i am about to get a jdm swap pre soon AND I like to know when u use jdm swap so can i use the harness on the jdm one.? ecu's are in different location so will that be a problem
06-29-09, 05:11 AM
#4
Full Member
Join Date: Jun 2008
Location: Idaho
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
JDM harness is shorter than the U.S. harness due to the position of the ECU. You CAN use the JDM harness but many people (myself included) would say that it'd be easier to modify the U.S. N/A harness assuming you're doing a N/A to TII swap.
Trending Topics
I keep repeating myself.
06-29-09, 06:29 PM
#11
Longtime Lurker
always little things that get left out though...I turned in my idiot cluster cover to get fabricated to a gauge pod 2 months ago and the guy still hasnt finished!
06-29-09, 10:22 PM
#12
Full Member
Thread Starter
Join Date: Sep 2008
Location: carteret nj
Posts: 235
Likes: 0
Received 0 Likes
on
0 Posts
no i have a s5 t2 but who ever had it before cut the whole harness a part so i wanna use a fresh one so i dont have the problems that i am having now
06-29-09, 11:15 PM
#15
Full Member
Thread Starter
Join Date: Sep 2008
Location: carteret nj
Posts: 235
Likes: 0
Received 0 Likes
on
0 Posts
06-30-09, 12:11 PM
#18
You can consider all NA engine management harnesses of the same series to essentially be the same, whether they are for autos or manuals. That being said, NA EM harnesses are not at all the same as TII EM harnesses. You shouldn't consider adapting an NA harness for a TII; it's just not worth the trouble, and you will lose a couple things (ASV, knock box).
07-01-09, 01:23 PM
#20
Full Member
Thread Starter
Join Date: Sep 2008
Location: carteret nj
Posts: 235
Likes: 0
Received 0 Likes
on
0 Posts
not sure but they usually sell the whole swap with everything around 1200-1500 with trans and harness
07-03-09, 02:38 PM
#22
Full Member
Thread Starter
Join Date: Sep 2008
Location: carteret nj
Posts: 235
Likes: 0
Received 0 Likes
on
0 Posts
yea they have clips everything if they dont have it i no other 2 have it
JDM Engine Zone, Clifton NJ
JAPANESE ENGINES INC. Paterson nj
JDM Engine Depot Kearny nj
they all in north jersey and not that far from each other
JDM Engine Zone, Clifton NJ
JAPANESE ENGINES INC. Paterson nj
JDM Engine Depot Kearny nj
they all in north jersey and not that far from each other
07-03-09, 04:00 PM
#23
mazda mario
Join Date: Jun 2007
Location: port st lucie
Posts: 400
Likes: 0
Received 0 Likes
on
0 Posts
i have a qeustion about using a usdm s4 turbo2 engine harness on the s4 n/a being same years like 87 would it be same plugs? would it be a plug and play or i have to modified some thing i looked around no one gives a straight answer.
07-03-09, 09:19 PM
#24
Rotary Freak

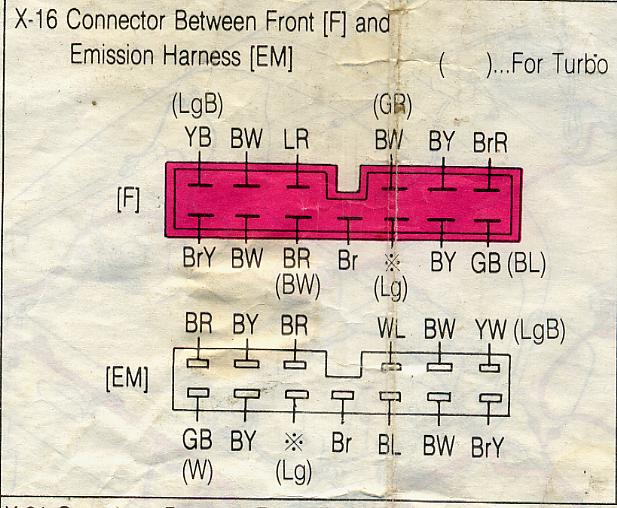

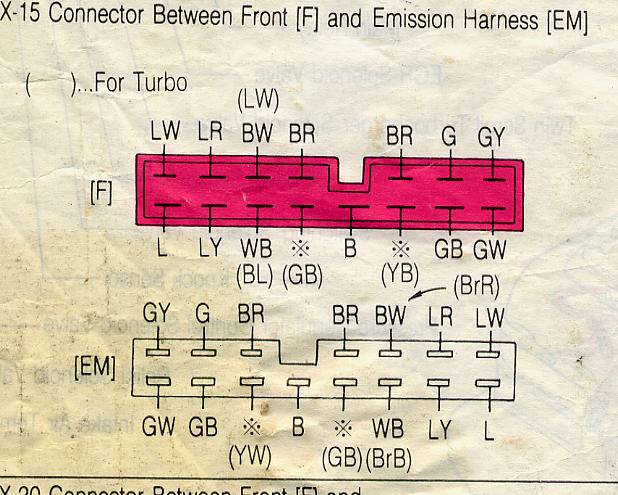

Look at the jpg attached. See the wire colors in ( )???? Those wires are all peculiar to the turbo car. If mated with a non turbo FRONT harness they will not perform their purpose.
The harness on the engine is the EM harness. See your local free online wiring diagrams for what each wire does in life.
Plus the two alternator wires are not in the Turbo EM harness. They are in the Engine harenss on a Turbo car.
Figuring out what each wire does in the harness is simple. Not all the wiring diagrams are involved. Throw all the wiring diagrams that have anything to do with the Radio, ABS, headlights,sunroof, windows, heat and air etc to the side and just deal with items that effect the engine, alt, wipers, instruments and that takes care of 90% of the wires.
The harness on the engine is the EM harness. See your local free online wiring diagrams for what each wire does in life.
Plus the two alternator wires are not in the Turbo EM harness. They are in the Engine harenss on a Turbo car.
Figuring out what each wire does in the harness is simple. Not all the wiring diagrams are involved. Throw all the wiring diagrams that have anything to do with the Radio, ABS, headlights,sunroof, windows, heat and air etc to the side and just deal with items that effect the engine, alt, wipers, instruments and that takes care of 90% of the wires.
