Pod filter

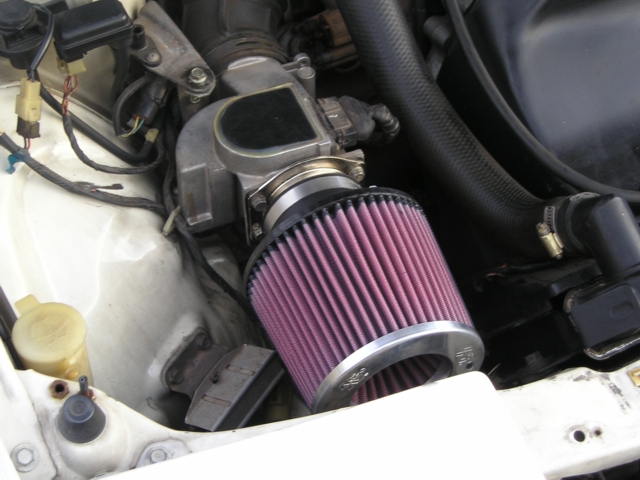

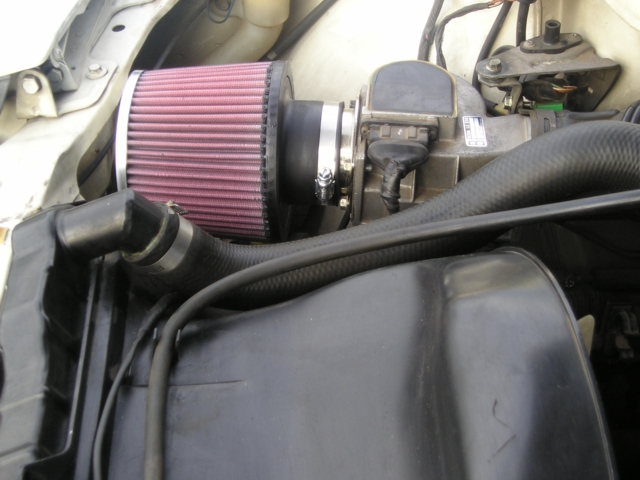

Hey guys, I put a new K&N pod filter on the RX7 today. Its all connected up correctly and works fine. Makes the car sound way meaner.
I was just wondering how people have their AFM braced. I thought of just letting it hang there. But then i saw a brace from the old air box and connected that to the AFM for a bit more stability and so it doesnt rest on the body. It still moves around alot. Is that normal?
What have you guys done?
I was just wondering how people have their AFM braced. I thought of just letting it hang there. But then i saw a brace from the old air box and connected that to the AFM for a bit more stability and so it doesnt rest on the body. It still moves around alot. Is that normal?
What have you guys done?
10-22-07, 09:50 AM
#2
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
You should brace it. Letting it rest on the body subjects it to a lot of impact stresses as it bounces off the inner fender. Also it causes the flapper to vibrate fare more then if it was mounted.
10-22-07, 11:07 AM
#3
Taste great, more filling
iTrader: (1)
Join Date: Feb 2005
Location: Dallas, TX
Posts: 2,012
Likes: 0
Received 0 Likes
on
0 Posts
I took a piece of aluminum and bent it into an L - drilled a hole at each end and bolted it to the afm on one side and to the body on the other. The second problem you'll have if you don't brace it is that it'll last about a week if any part of the filter touches anything metal, the vibration just cuts a hole right through it.
10-25-07, 04:32 AM
#4
87 Series IV RX7
Thread Starter
Join Date: Mar 2006
Location: Perth, Western Australia
Posts: 126
Likes: 0
Received 0 Likes
on
0 Posts
I got the little L shaped bracket from next to the radiator and put that on the other bracket on the strut mount and bolted it through the back of the AFM. i reckon it does the job and none of the pod or AFM touches the body
Last edited by Josh13B; 10-25-07 at 04:39 AM.
