Please help! Wiring problems T2

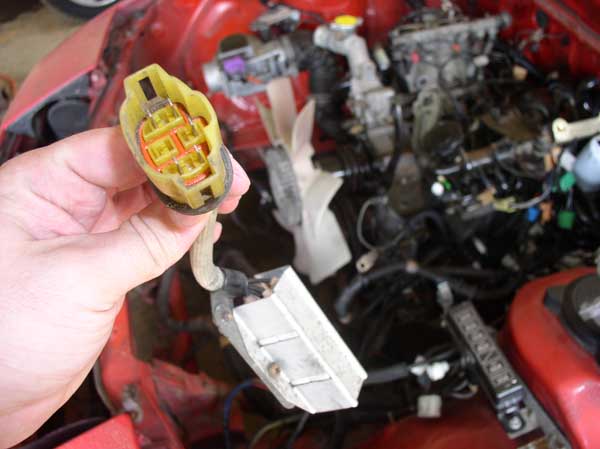

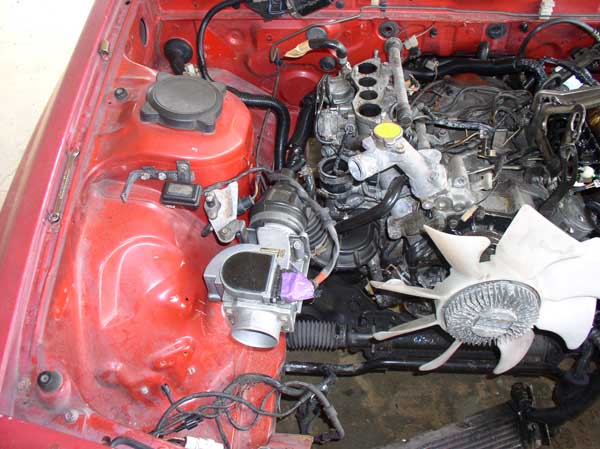

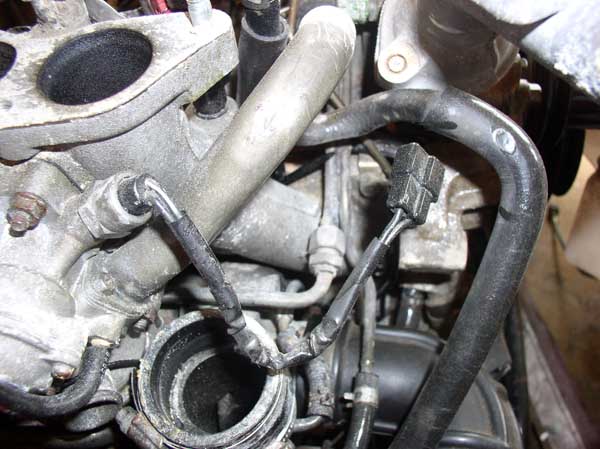

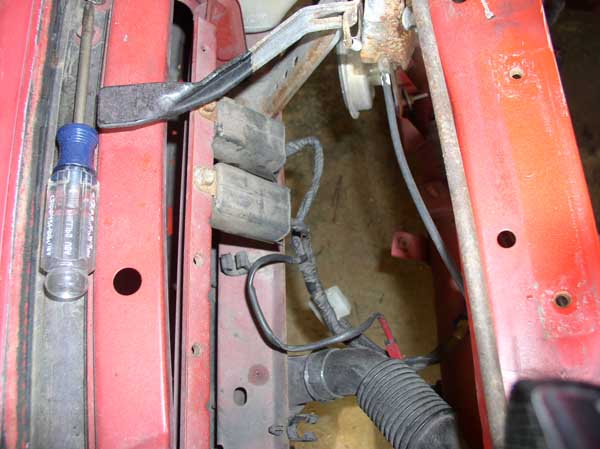

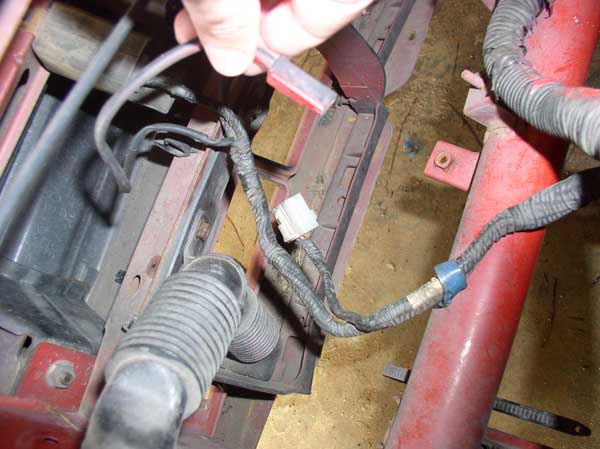

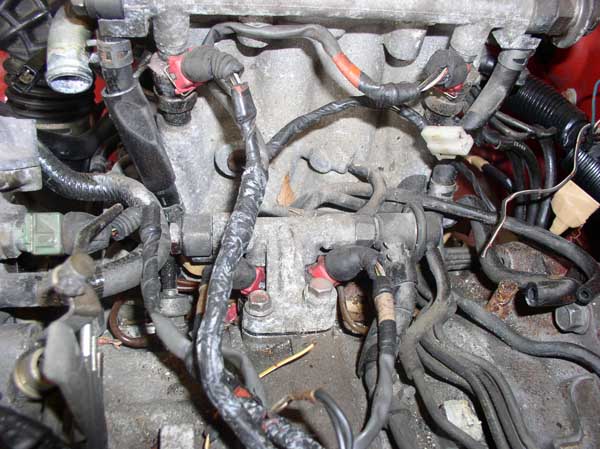

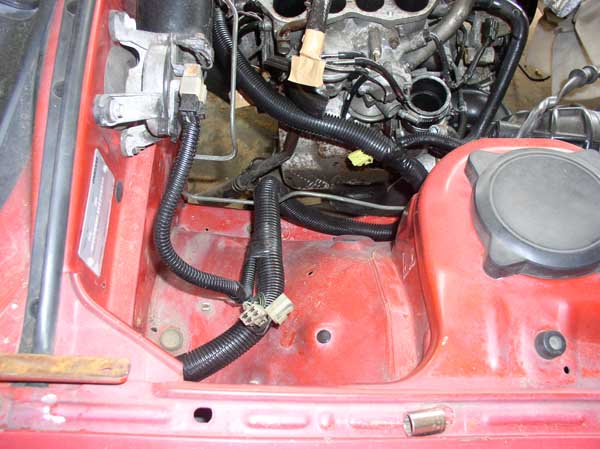

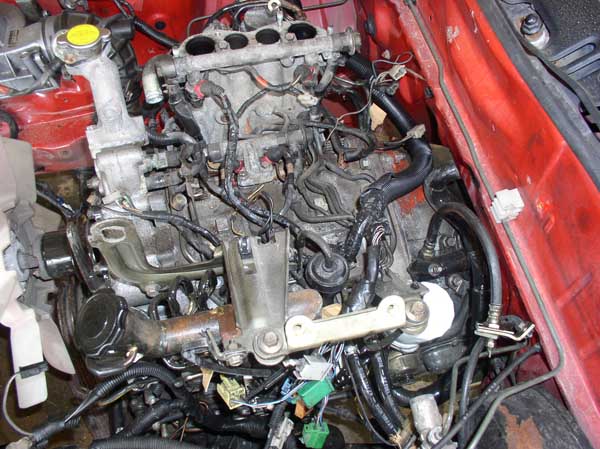

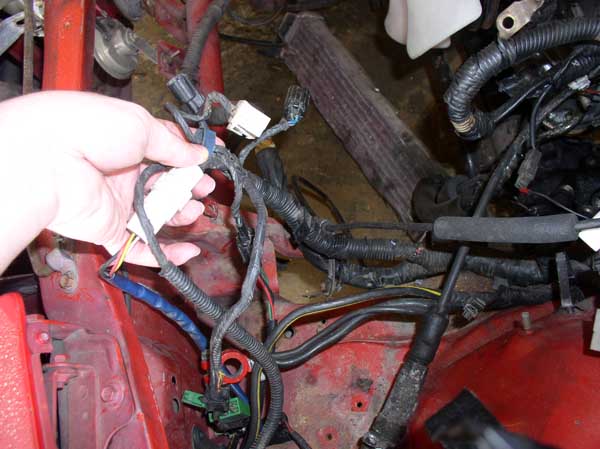

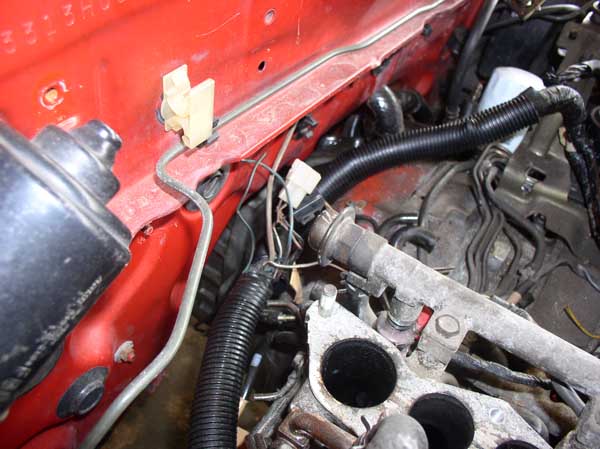

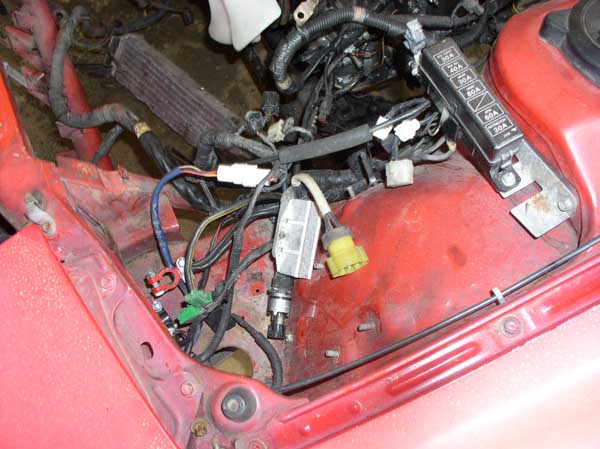

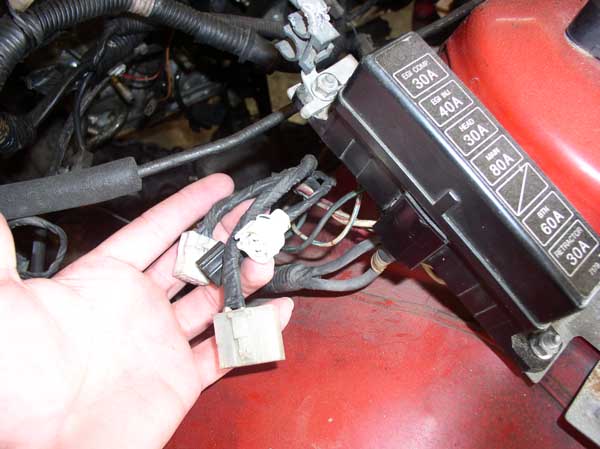

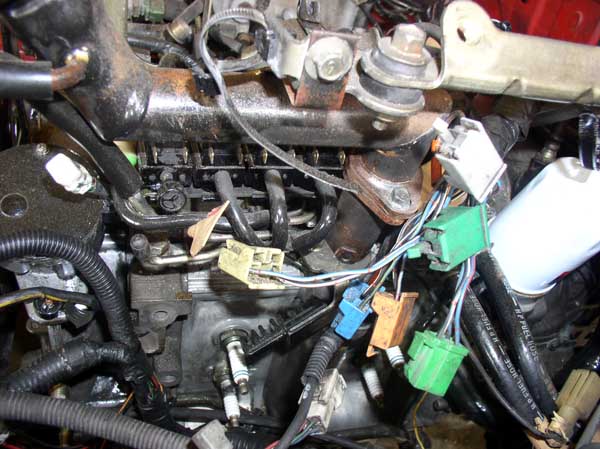

i'm doing a na to t2 swap. when i bought the car it was already gutted. so i'm having to work from scratch. i need some help on where stuff goes and what plugs go where... ANY help would be appreciated. I'm desperate! mom getting mad at trashy garage! here are some pics or things that i need help with. the most important is the engine harness with the injectors and those colored plugs on the side of the motor...
here are some pics.
here are some pics.
03-10-06, 04:18 PM
#4
Full Member
Thread Starter
Join Date: Nov 2005
Location: MS
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
re: more pics

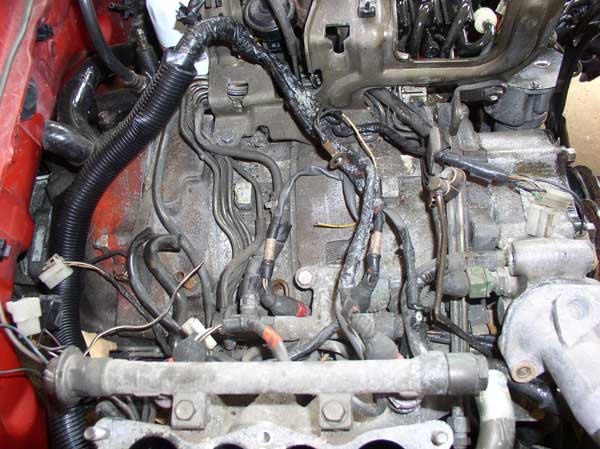

last pic... someone please help.... this has turned into a nightmare! i do have a service manual but you can't see where the wires go and what they go to. all i see if black blobs... it's not much help on wiring.
thanks guys. excuse my stupidity
thanks guys. excuse my stupidity
03-10-06, 08:05 PM
#6
Full Member
Thread Starter
Join Date: Nov 2005
Location: MS
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
does it matter on the very first pic. does it matter which order the wires are in? i can figure that out... also if i plug all them in i have like 2 left over... also on the injectors does the wires have to be on the right injector or can they just be plugged in to which ever one? ok that sentence didn't make much sence... if you don't get what i'm saying i'll try to refrase
Trending Topics
03-12-06, 11:11 AM
#8
Full Member
Thread Starter
Join Date: Nov 2005
Location: MS
Posts: 54
Likes: 0
Received 0 Likes
on
0 Posts
bump... can anyone send me some pics possibly to help me with this wiring? it's just a few plugs that i'm not sure about... the injectors and the different colored plugs on the driver side of the engine... what order do they go in and there is only 4 spots to plug them in and there are like 6 plugs... so where do the other plugs go? pics would help alot... thanks
03-12-06, 11:29 AM
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The FSM wiring schematics clearly show the colors of the wires for the individual fuel injectors.
Like for the Front Primary it might show the wires are a black/yellow and a pink/green pair of wires and for the Front Secondary the wire colors of the two wires are black/yellow and chartrues/beige.
None of those colors are correct except the black/yellow. The FSM will tell you the right colors.
The water thermo sensor should have a green/black and a black wire..........I think. I'd have to look at the free online fsm to be sure.
Like for the Front Primary it might show the wires are a black/yellow and a pink/green pair of wires and for the Front Secondary the wire colors of the two wires are black/yellow and chartrues/beige.
None of those colors are correct except the black/yellow. The FSM will tell you the right colors.
The water thermo sensor should have a green/black and a black wire..........I think. I'd have to look at the free online fsm to be sure.
