Pic Request: Cruise Control
07-06-07, 06:05 PM
#2
Winter sucks
Join Date: Jan 2004
Location: Newberg, Oregon
Posts: 3,083
Likes: 0
Received 0 Likes
on
0 Posts
http://picasaweb.google.com/micaheli...23525368841858
S5 NA.... Sorry, no S4 pics.
http://picasaweb.google.com/micaheli/CruisePics for the gallery
S5 NA.... Sorry, no S4 pics.
http://picasaweb.google.com/micaheli/CruisePics for the gallery
07-06-07, 06:28 PM
#4
Winter sucks
Join Date: Jan 2004
Location: Newberg, Oregon
Posts: 3,083
Likes: 0
Received 0 Likes
on
0 Posts
Oh.. Well, I added another one to that gallery, see if it helps.. but, I KNOW I have a pic of it. Hell. let me go take a pic of the car.
Edit.. took some pics of my parts car and put them in that gallery. The bolt on one side is busted off, but thats where it goes.
Edit.. took some pics of my parts car and put them in that gallery. The bolt on one side is busted off, but thats where it goes.
Last edited by micah; 07-06-07 at 06:36 PM.
Trending Topics
07-06-07, 10:29 PM
#11
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The bracket closest to the actuator ALMOST looks right. It would bolt to the bulkhead/firewall with two bolts, one above the other, then the actuator would bolt to the top flange of that bracket.
It ALMOST looks right. Download the parts fische and look at the section called BODY, on page 2- H16. At the top of that pabe are the numbers 6640-1. I never learned how to read the parts fische right and that's the way it is out west.
I can't remember is my 86 n/a still has the vacuum actuator or if I put an electrical actuator in it. I might look tomorrow.
It ALMOST looks right. Download the parts fische and look at the section called BODY, on page 2- H16. At the top of that pabe are the numbers 6640-1. I never learned how to read the parts fische right and that's the way it is out west.
I can't remember is my 86 n/a still has the vacuum actuator or if I put an electrical actuator in it. I might look tomorrow.
07-07-07, 07:08 AM
#12
The bracket closest to the actuator ALMOST looks right. It would bolt to the bulkhead/firewall with two bolts, one above the other, then the actuator would bolt to the top flange of that bracket.
It ALMOST looks right. Download the parts fische and look at the section called BODY, on page 2- H16. At the top of that pabe are the numbers 6640-1. I never learned how to read the parts fische right and that's the way it is out west.
I can't remember is my 86 n/a still has the vacuum actuator or if I put an electrical actuator in it. I might look tomorrow.
It ALMOST looks right. Download the parts fische and look at the section called BODY, on page 2- H16. At the top of that pabe are the numbers 6640-1. I never learned how to read the parts fische right and that's the way it is out west.
I can't remember is my 86 n/a still has the vacuum actuator or if I put an electrical actuator in it. I might look tomorrow.
Anyways, thanks for the help thus far micaheli and HAILERS.
07-07-07, 08:26 AM
#13
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I looked at my 86na.
It came without cruise.
I installed it from parts from the wreckyard.
The fwd leg of the actuator is bolted to the fender where there is a hole with nuplate.
It appears I drilled a hole in the flange on the bulkhead for the other attach hole. I looked at my 87 that WAS a na at one time and came with vacuuum operater cruise and there is NO hole in the flange on that car, so I must have drilled that hole in the flange and installled a bolt with nut. I'm assuming I must have bent the leg on the actuator for this to have worked.
The 87 NOW has the electric cruise and a electric bracket. So the old one is somewhere out in the shed most likely.
So. No help here except the knowledge that you could drill a hole in the bulkhead flange and install a bolt and nut to hold it in place. If I hadn't looked at the 87 car I wouldn't have been able to tell the 86 is installed *wrong* so to speak.
Or make a bracket out of scrap to bolt to the two holse on the bulkhead and have a flange on it to mate with the aft leg on the actuator.
It came without cruise.
I installed it from parts from the wreckyard.
The fwd leg of the actuator is bolted to the fender where there is a hole with nuplate.
It appears I drilled a hole in the flange on the bulkhead for the other attach hole. I looked at my 87 that WAS a na at one time and came with vacuuum operater cruise and there is NO hole in the flange on that car, so I must have drilled that hole in the flange and installled a bolt with nut. I'm assuming I must have bent the leg on the actuator for this to have worked.
The 87 NOW has the electric cruise and a electric bracket. So the old one is somewhere out in the shed most likely.
So. No help here except the knowledge that you could drill a hole in the bulkhead flange and install a bolt and nut to hold it in place. If I hadn't looked at the 87 car I wouldn't have been able to tell the 86 is installed *wrong* so to speak.
Or make a bracket out of scrap to bolt to the two holse on the bulkhead and have a flange on it to mate with the aft leg on the actuator.
07-07-07, 08:43 AM
#14
I looked at my 86na.
It came without cruise.
I installed it from parts from the wreckyard.
The fwd leg of the actuator is bolted to the fender where there is a hole with nuplate.
It appears I drilled a hole in the flange on the bulkhead for the other attach hole. I looked at my 87 that WAS a na at one time and came with vacuuum operater cruise and there is NO hole in the flange on that car, so I must have drilled that hole in the flange and installled a bolt with nut. I'm assuming I must have bent the leg on the actuator for this to have worked.
The 87 NOW has the electric cruise and a electric bracket. So the old one is somewhere out in the shed most likely.
So. No help here except the knowledge that you could drill a hole in the bulkhead flange and install a bolt and nut to hold it in place. If I hadn't looked at the 87 car I wouldn't have been able to tell the 86 is installed *wrong* so to speak.
Or make a bracket out of scrap to bolt to the two holse on the bulkhead and have a flange on it to mate with the aft leg on the actuator.
It came without cruise.
I installed it from parts from the wreckyard.
The fwd leg of the actuator is bolted to the fender where there is a hole with nuplate.
It appears I drilled a hole in the flange on the bulkhead for the other attach hole. I looked at my 87 that WAS a na at one time and came with vacuuum operater cruise and there is NO hole in the flange on that car, so I must have drilled that hole in the flange and installled a bolt with nut. I'm assuming I must have bent the leg on the actuator for this to have worked.
The 87 NOW has the electric cruise and a electric bracket. So the old one is somewhere out in the shed most likely.
So. No help here except the knowledge that you could drill a hole in the bulkhead flange and install a bolt and nut to hold it in place. If I hadn't looked at the 87 car I wouldn't have been able to tell the 86 is installed *wrong* so to speak.
Or make a bracket out of scrap to bolt to the two holse on the bulkhead and have a flange on it to mate with the aft leg on the actuator.
07-07-07, 02:44 PM
#17
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

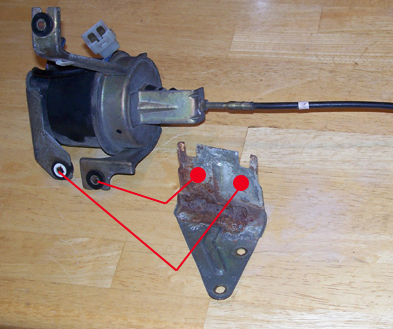

The long leg on the actuator, is going to a nutplate/hole that was already there below and aft of the strut tower. Near the canister, Works for me. A brkt would be even better....somehow.
Long leg fwd to the fender....two other holes going to the flange on the firewall/bulkhead. Like I say, I drilled only one hole and used a bolt and nut and left the other hole in the actuator just hanging out waiting for me to buy a brkt (gonna be a long wait).
07-07-07, 04:31 PM
#18
Something like that. I just went and looked again. I only drilled one hole in the flange on the bulkhead and used the most inboard of those two holes on the actuator.
The long leg on the actuator, is going to a nutplate/hole that was already there below and aft of the strut tower. Near the canister, Works for me. A brkt would be even better....somehow.
Long leg fwd to the fender....two other holes going to the flange on the firewall/bulkhead. Like I say, I drilled only one hole and used a bolt and nut and left the other hole in the actuator just hanging out waiting for me to buy a brkt (gonna be a long wait).
The long leg on the actuator, is going to a nutplate/hole that was already there below and aft of the strut tower. Near the canister, Works for me. A brkt would be even better....somehow.
Long leg fwd to the fender....two other holes going to the flange on the firewall/bulkhead. Like I say, I drilled only one hole and used a bolt and nut and left the other hole in the actuator just hanging out waiting for me to buy a brkt (gonna be a long wait).
I appreciate the pictures, but not that much.
Thanks for the offer though.
07-07-07, 05:03 PM
#19

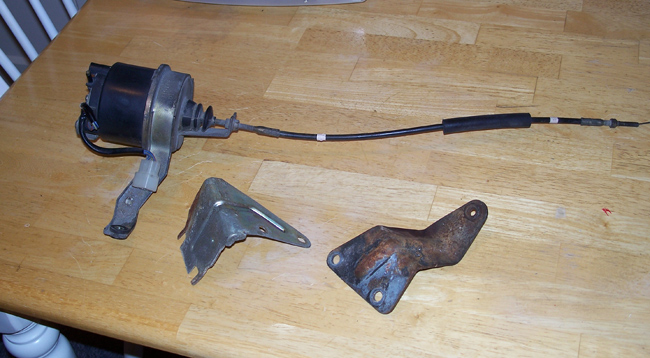

I'll take it if it's the real deal...I've been in the same boat as Baby and following this thread with great interest.
BTW, as long as we're on the subject...the actuator I got is apparently for a turbo car (all electric, no vac line) and the cable is too long for my NA.
Will this unit work if I shorten the cable?
BTW, as long as we're on the subject...the actuator I got is apparently for a turbo car (all electric, no vac line) and the cable is too long for my NA.
Will this unit work if I shorten the cable?
07-07-07, 06:20 PM
#20
Winter sucks
Join Date: Jan 2004
Location: Newberg, Oregon
Posts: 3,083
Likes: 0
Received 0 Likes
on
0 Posts
I'll take it if it's the real deal...I've been in the same boat as Baby and following this thread with great interest.
BTW, as long as we're on the subject...the actuator I got is apparently for a turbo car (all electric, no vac line) and the cable is too long for my NA.
Will this unit work if I shorten the cable?
BTW, as long as we're on the subject...the actuator I got is apparently for a turbo car (all electric, no vac line) and the cable is too long for my NA.
Will this unit work if I shorten the cable?
07-07-07, 06:32 PM
#21
The cold start assist bracket is where everything fits in.
I can take pictures of mine (S4, electric) if needed - I installed it from a friend's TII (he no longer had room for it, or it wouldn't fit, or something).
Remember, there are THREE parts to the cruise control - the actuator (either electric or vacuum), the lever in the dash, and the computer (up in the driver's footwell side area).
-=Russ=-
I can take pictures of mine (S4, electric) if needed - I installed it from a friend's TII (he no longer had room for it, or it wouldn't fit, or something).
Remember, there are THREE parts to the cruise control - the actuator (either electric or vacuum), the lever in the dash, and the computer (up in the driver's footwell side area).
-=Russ=-
07-07-07, 11:46 PM
#22
I'll take it if it's the real deal...I've been in the same boat as Baby and following this thread with great interest.
BTW, as long as we're on the subject...the actuator I got is apparently for a turbo car (all electric, no vac line) and the cable is too long for my NA.
Will this unit work if I shorten the cable?
BTW, as long as we're on the subject...the actuator I got is apparently for a turbo car (all electric, no vac line) and the cable is too long for my NA.
Will this unit work if I shorten the cable?
I'll pass on the deal and let clokker go for it.
The cold start assist bracket is where everything fits in.
I can take pictures of mine (S4, electric) if needed - I installed it from a friend's TII (he no longer had room for it, or it wouldn't fit, or something).
Remember, there are THREE parts to the cruise control - the actuator (either electric or vacuum), the lever in the dash, and the computer (up in the driver's footwell side area).
-=Russ=-
I can take pictures of mine (S4, electric) if needed - I installed it from a friend's TII (he no longer had room for it, or it wouldn't fit, or something).
Remember, there are THREE parts to the cruise control - the actuator (either electric or vacuum), the lever in the dash, and the computer (up in the driver's footwell side area).
-=Russ=-
07-07-07, 11:54 PM
#23
If I remember correctly, the cruise control bracket uses the same bolt holes as the cold start assist bracket. I don't have my cold start assist, so I'm not 100% sure how the brackets line up, but I do know they overlap.
Also, the turbo (electric) cruise control has a longer cable. It needs to wrap around the turbo manifold somehow. I just have mine ziptied off out of the way and looping around to use the excess - it works fine.
-=Russ=-
Also, the turbo (electric) cruise control has a longer cable. It needs to wrap around the turbo manifold somehow. I just have mine ziptied off out of the way and looping around to use the excess - it works fine.
-=Russ=-
07-09-07, 10:47 AM
#24
If I remember correctly, the cruise control bracket uses the same bolt holes as the cold start assist bracket. I don't have my cold start assist, so I'm not 100% sure how the brackets line up, but I do know they overlap.
Also, the turbo (electric) cruise control has a longer cable. It needs to wrap around the turbo manifold somehow. I just have mine ziptied off out of the way and looping around to use the excess - it works fine.
-=Russ=-
Also, the turbo (electric) cruise control has a longer cable. It needs to wrap around the turbo manifold somehow. I just have mine ziptied off out of the way and looping around to use the excess - it works fine.
-=Russ=-
