CartieTheTranscendent

I'm trying to find a control arm that looks like this

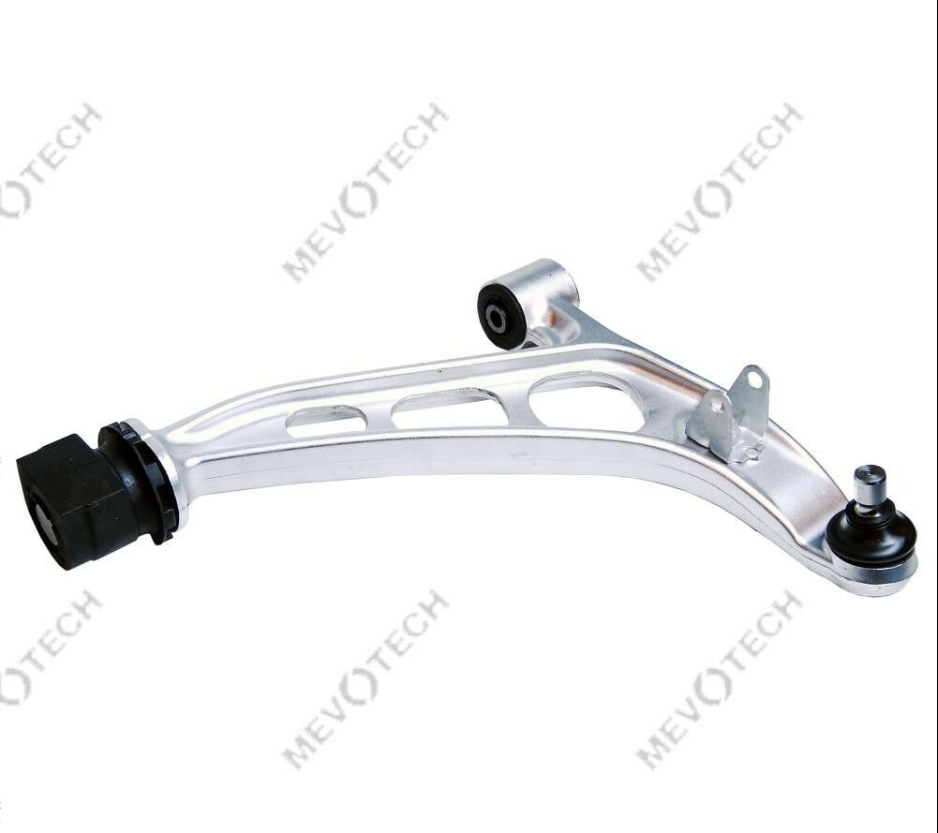

Whenever I try to search for a control arm this is what I find

It doesn't look anything like my control arm, so I was wondering would this still work and is there a place that sells a control arm like the first photo? I'd also like to know the part number for the control arm too in case I have to go to a dealer. This is for my front right.
Thanks.


This is my right control arm that I have to replace. (You can ignore the red arrow)

Hot_Dog

Mazda p/n's are:
FB01-34-310B Lower Control Arm (Right) - NLA
FB01-34-360B Lower Control Arm (Left) - NLA

86-88 LCA's no longer available (NLA) from Mazda. You should be able to pickup that right LCA from either a used parts dealer, the for sale section of this board or Ebay.

Checkout this Ebay ad: https://www.ebay.com/i/201994941545?...CABEgKCuPD_BwE

Hot_Dog

The LCA with integral ball joint is for 89-91 RX7's. Rockauto sells them. Just wondering why you need a new LCA?

CartieTheTranscendent

Thanks a lot! The car was curbed so the lower control arm and ball joint were bent.
