adjustable lower control arms
I saw a picture of a set of adjustable lower control arms on a datsun 510. So i decided to try to make some of my own for my first gen.heres my progress so far. coments are welcome i want some feedback.
first i got a lower control arm at the wrecking yard.

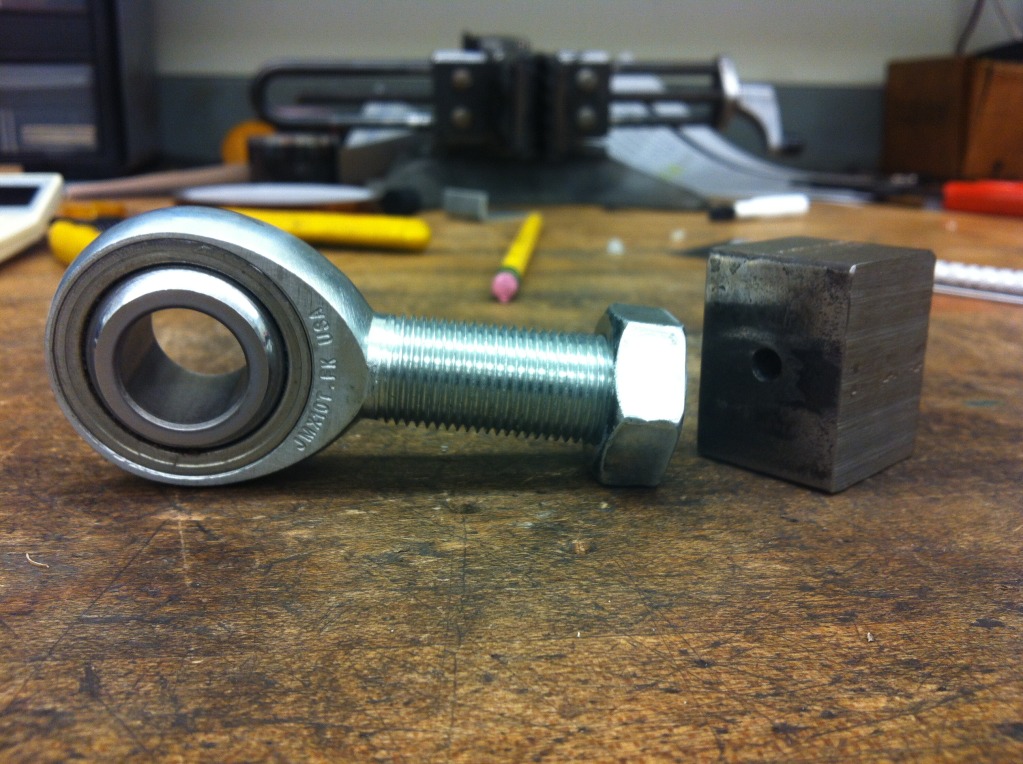

second i went and got a 3 piece teflon lined chromoly heim joint 5/8-18 thread pitch
third i cut some pieces of 1'' by 1 1/2'' steel rod then drilled a hole down the center
thats what i got so far.
first i got a lower control arm at the wrecking yard.
second i went and got a 3 piece teflon lined chromoly heim joint 5/8-18 thread pitch
third i cut some pieces of 1'' by 1 1/2'' steel rod then drilled a hole down the center
thats what i got so far.
#4
Senior Member
iTrader: (3)
something along the lines of cut more off of the control arm and weld a nut inside the control arm, attached to one of these
Stainless Steel Double Adjuster, 5/8-18 Threads, 4-1/4 Inch Length - Speedway Motors, America's Oldest Speed Shop
and then a female rod end. with jam nuts of course. would allow much easier adjustments
Stainless Steel Double Adjuster, 5/8-18 Threads, 4-1/4 Inch Length - Speedway Motors, America's Oldest Speed Shop
and then a female rod end. with jam nuts of course. would allow much easier adjustments
#5
Full Member
Thread Starter
Join Date: Jul 2007
Location: norwalk CA.
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
That's a real good idea, Using that double adjuster.
That's something I kind of didn't consider because I don't
See myself making many adjustments that often. I kind of
Concider it of of those things where I'll set it and forget it.
But obviously check it every so often
That's something I kind of didn't consider because I don't
See myself making many adjustments that often. I kind of
Concider it of of those things where I'll set it and forget it.
But obviously check it every so often
Trending Topics
#8
Full Member
Thread Starter
Join Date: Jul 2007
Location: norwalk CA.
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts

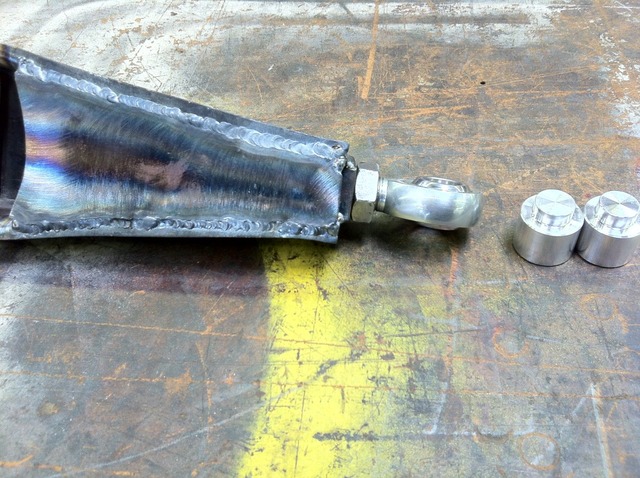

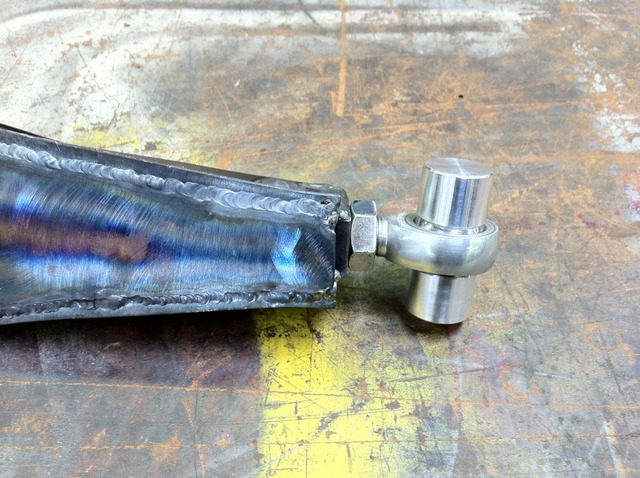

I got alittle more done this week. i made a gusset and welded it in and also made some spacers to center the arm on the crosmember i still need to drill the spacers to the right diameter.
#10
Full Member
Thread Starter
Join Date: Jul 2007
Location: norwalk CA.
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
I still need to order a new ball joint and powder coat the arm then i have to do it all over again for the other arm that currently is still on the car.
then after i do that i will have to align the car with the specs i want.
PS. not sure i understand about the faith on the bolt...
then after i do that i will have to align the car with the specs i want.
PS. not sure i understand about the faith on the bolt...
