In over my head - s4-s5 intake swap - emmisions removal - and 6 port elimination
hows it goin fellow rx7 enthusiats. i have a 88 NA
i decided that i wanted to do a s4-s5 intake manifold swap and while i had that off to do the emmisions removal and while i was there i decided to take out my seized 6 port actuators.
now my car doesnt start. and i have a few questions
is the fuel pressure regulator different on an s5? bc i used the s5 fuel rails. (not the injectors.)
what would the symptom be of a car that shakes when trying to start it?
i decided that i wanted to do a s4-s5 intake manifold swap and while i had that off to do the emmisions removal and while i was there i decided to take out my seized 6 port actuators.
now my car doesnt start. and i have a few questions
is the fuel pressure regulator different on an s5? bc i used the s5 fuel rails. (not the injectors.)
what would the symptom be of a car that shakes when trying to start it?
#2
The Addiction of Wankel
iTrader: (5)
Join Date: Nov 2001
Location: Bakersfield
Posts: 407
Likes: 0
Received 0 Likes
on
0 Posts
Did you remove the aws? I had the same problem as you after switching over and doing the tb mod. Found out there was a vaccum leak preventing me from getting the engine going. After that I have to give it a little gas from the throttle pedal because I removed the aws (stupid idea). Hope this helps.
#3
Top Down, Boost Up
iTrader: (7)
You don't need the AWS to start the car. The BAC will already boost startup idle for a bit anyhow. I removed mine when I swapped manifolds, but I kept my thermowax, so idle jumps to 3000 RPM from the BAC, then drops to 1500 until it warms up.
The S4 & S5 fuel pressure regulators are the same. You can't swap the S4 rails over since the primary is too tall, and the secondary bolt pattern is different.
The biggest problem I ran into doing the swap was grinding enough of the block down to get the UIM to seal against the LIM. It took 3 tries to get it right, and when it wasn't seated properly, the car would have massive idle surges, then stall. This may be an issue to check out if your thermowax/AWS/BAC are all gone, since initial idle will be low enough that it might not even start.
The S4 & S5 fuel pressure regulators are the same. You can't swap the S4 rails over since the primary is too tall, and the secondary bolt pattern is different.
The biggest problem I ran into doing the swap was grinding enough of the block down to get the UIM to seal against the LIM. It took 3 tries to get it right, and when it wasn't seated properly, the car would have massive idle surges, then stall. This may be an issue to check out if your thermowax/AWS/BAC are all gone, since initial idle will be low enough that it might not even start.
#5
Red Rotary Rocket
Thread Starter
Join Date: Nov 2007
Location: Syracuse NY
Posts: 237
Likes: 0
Received 0 Likes
on
0 Posts
i got it to fire on one rotor but it seems like the rear rotor is constanly flooding. i did break one of the little brown plastic things that go in underneath the injectors. so i put another one in from the s4 but they are different so the injector sank in too much. so i took my injector washers i had laying around and made the injector the right height. (and i kept the brown plastic thing in)
the only reason i bring this up is cuz the rotor thats not fireing is the one that i had to mess with the injector.
another thing real quick. i ran my bacv to the top of the thorttle body like is says in the "how to" thread. and now im wondering where the one that comes from the back of the block goes (seeing that i took the stock spot to run the bacv

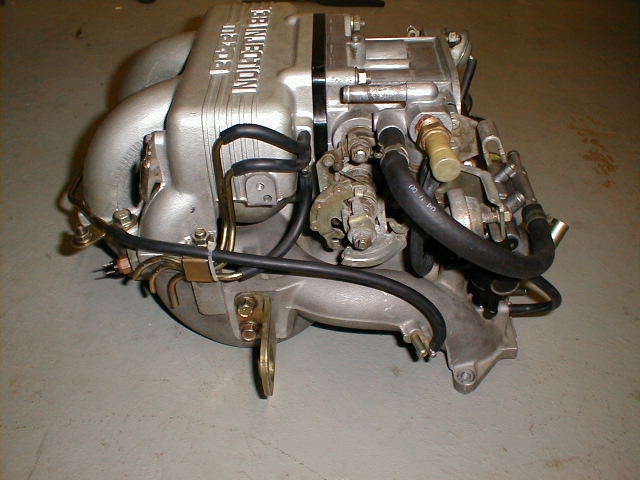

heres a pic
the only reason i bring this up is cuz the rotor thats not fireing is the one that i had to mess with the injector.
another thing real quick. i ran my bacv to the top of the thorttle body like is says in the "how to" thread. and now im wondering where the one that comes from the back of the block goes (seeing that i took the stock spot to run the bacv
heres a pic
#7
Top Down, Boost Up
iTrader: (7)
More info here: https://www.rx7club.com/showthread.p...lerated+warmup
The thermowax is not part of this system, since it works on it's own, while the BAC and air bypass solenoid valve (AWS for short, ABS is taken for obvious reasons) work together. Why do you think the BAC is connected to the air bypass valve, but the thermowax is not? The thermowax is just a separate warmup device.
Trending Topics
#8
Top Down, Boost Up
iTrader: (7)
1revin, how do you know the rear rotor is flooding while the front is not? Are the rear rotor's plugs soaked in gas when you pull them?
And for the routing of the coolant lines through the BAC to the TB, you would just go from the rear iron to the other connection on the thermowax (facing the driver's side). An alternative is to bypass the BAC altogether and just route a hose undernear the UIM & up to that same side. Either way you have to make sure the coolant lines do not touch the throttle cable, or you will end up wearing a hole in them. Here's a pic of my setup.
http://members.***.net/kiljaden84/S5%20manifold%202.JPG
The hose parallel to the firewall just loops out of the way and then back under the UIM to the water pump housing, while the other goes to the rear iron. The BAC works just fine without water to keep it at a constant temp. And the benefit is there is no water line to get in the way of the OMP rod.
And for the routing of the coolant lines through the BAC to the TB, you would just go from the rear iron to the other connection on the thermowax (facing the driver's side). An alternative is to bypass the BAC altogether and just route a hose undernear the UIM & up to that same side. Either way you have to make sure the coolant lines do not touch the throttle cable, or you will end up wearing a hole in them. Here's a pic of my setup.
http://members.***.net/kiljaden84/S5%20manifold%202.JPG
The hose parallel to the firewall just loops out of the way and then back under the UIM to the water pump housing, while the other goes to the rear iron. The BAC works just fine without water to keep it at a constant temp. And the benefit is there is no water line to get in the way of the OMP rod.
