Oil Filter Pedastal Removal

Anyone ever taken off the oil filter pedastal? How hard is it to do? I've found a few posts that say there's 2 10mm bolts that hold it on, can't seem to find them on the pedastal. Can the pedastal be removed while the engine is still in the car? Or are these couple of bolts something that cannot be reached easily?
Reply
Old Oct 16, 2004 | 10:56 AM
  #2
strikland's Avatar
Full Member
Tenured Member 05 Years

Joined: Dec 2003
Posts: 144
Likes: 0
From: Athens, GA
the bolts are on the underside of it. One of them also holds a clip or something, looking for that may help you out. You can get the pedestal off w/o removing the engine, you just need a small 10mm wrench, and some bandaids for the cuts you'll get on your knuckles.

I may have a pic of this, lemme look (the pedestal, not my knuckles).

edit: here ya go, ripped straight from the FSM.
Attached Images
File Type: bmp

Last edited by strikland; Oct 16, 2004 at 11:04 AM.
Reply
Old Oct 16, 2004 | 11:03 AM
  #3
Sir Rupert Hobo's Avatar
seven-less
Tenured Member 15 Years

Joined: Apr 2003
Posts: 2,082
Likes: 0
From: city of houston.... y0!

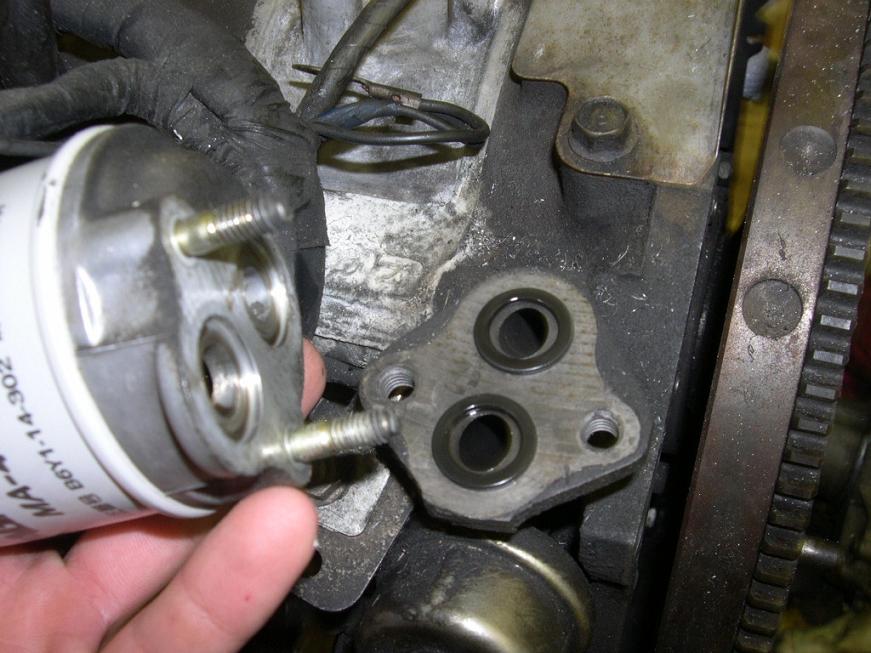

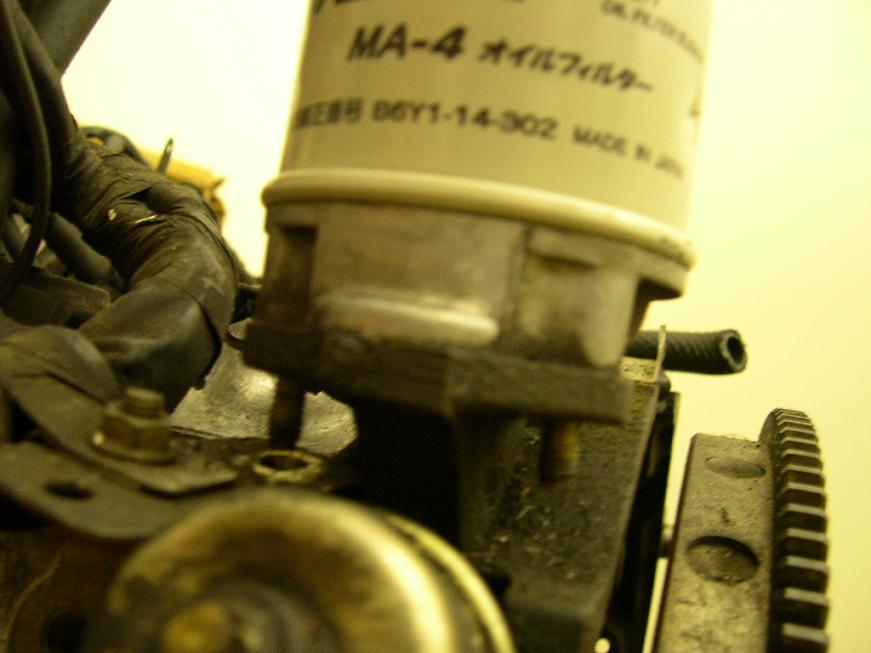

here are some pics..
Attached Thumbnails Oil Filter Pedastal Removal-dscn0074.jpg   Oil Filter Pedastal Removal-dscn0078.jpg
Reply
Old Oct 16, 2004 | 11:07 AM
  #4
ky_rx7_boy's Avatar
Thread Starter
Junior Member
Tenured Member 05 Years

Joined: Oct 2004
Posts: 11
Likes: 0
From: Kentucky
Hey, thanks Strickland. Yeah, if you have a picture that would be great, maybe then I could get a better look at where the bolts go. So when you say underside, do you mean on the engine block?
Reply
Old Oct 16, 2004 | 11:08 AM
  #5
ky_rx7_boy's Avatar
Thread Starter
Junior Member
Tenured Member 05 Years

Joined: Oct 2004
Posts: 11
Likes: 0
From: Kentucky
Thanks alot Hobo!
