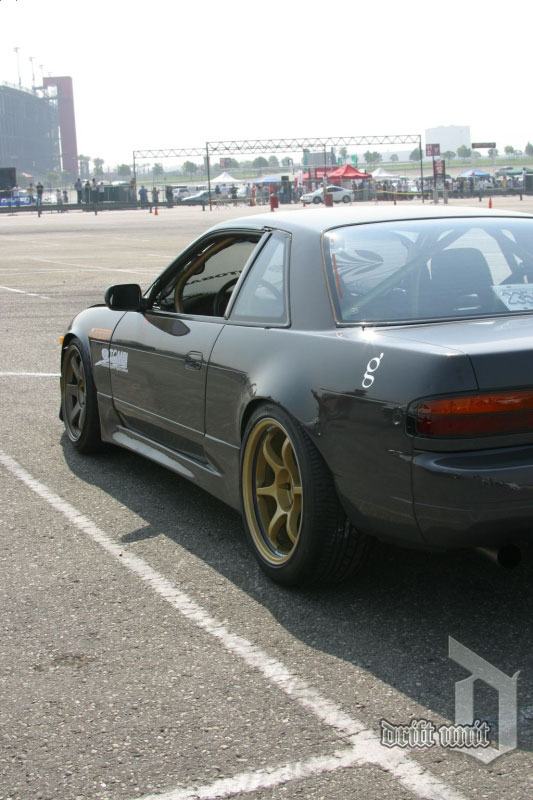

Hey guys I need help on the new wheel i'm getting. Just want to make sure is it fit. I'm getting volk racing gram light 17" 9.5 with 22 offset all around with concave. below is the pic of concave, I know I have flare the fenders. thanks



I think it's too tight up front.
It'll hit everything on the inside.


-Ted



that picture doesnt look like gram lights.



Good eye...
It looks like Volk Racing TE-37's in front, and Advan RG's in the rear.


-Ted



the pic is not a gramlight it's advan wheel, but it have concave just want to show how the wheel look like.



9.5 +22 would be too tight up front.



yea thats a bit too tight for the front.. I put a 17x9" 22mm with a 275/40/17 on front with my coilovers. so with some slight spacers you could probly get er done.



thanks



With a 17x9.5 and 22mm offset, the clearance from strut housing to the inside of the wheel will be 14mm LESS than a stock 16x7 turbo wheel.

The outside edge of the wheel will EXTEND an extra 50mm from what a stock 16x7 turbo wheel ends at.
