Need Help Now

i am trying to replace my drivers side door handle aand i just cant seem to get it out i got one bolt out and cant see the other but i do know where it is. how do i get the linkage off so i can get it out of my way??? need to do this like now lol
Reply
Old Jun 24, 2007 | 11:47 AM
  #2
Evil Aviator's Avatar
Rotorhead
Tenured Member 15 Years

Joined: Feb 2001
Posts: 9,136
Likes: 39
From: Charlottesville, Virginia, USA
The other bolt is inside of the oval hole in the door. You may need to roll the window up or down to access the bolt because the glass can get in the way. Remove with a deep socket, 10mm I think.
Attached Thumbnails Need Help Now-door-inside-2.jpg   Need Help Now-door-inside-handle-bolt.jpg
Reply
Old Jun 24, 2007 | 11:52 AM
  #3
2slw4u's Avatar
Thread Starter
ZOOM-ZOOM
Tenured Member 15 Years
iTrader: (4)

Joined: Aug 2006
Posts: 336
Likes: 0
From: Colorado
thanks i got it installed
Reply
Old Jun 24, 2007 | 11:53 AM
  #4
Evil Aviator's Avatar
Rotorhead
Tenured Member 15 Years

Joined: Feb 2001
Posts: 9,136
Likes: 39
From: Charlottesville, Virginia, USA
More pics that may help:

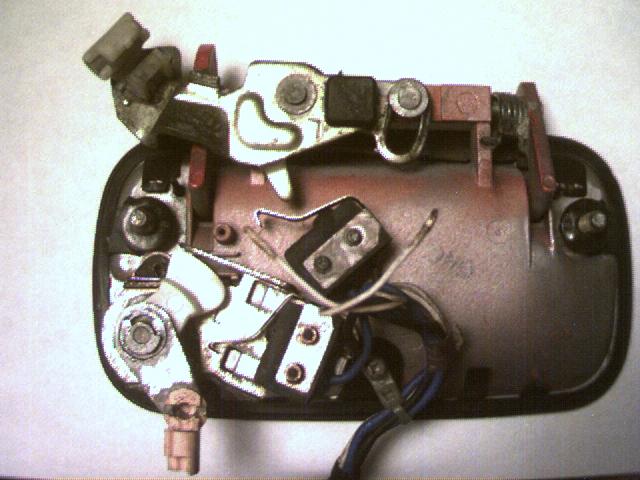

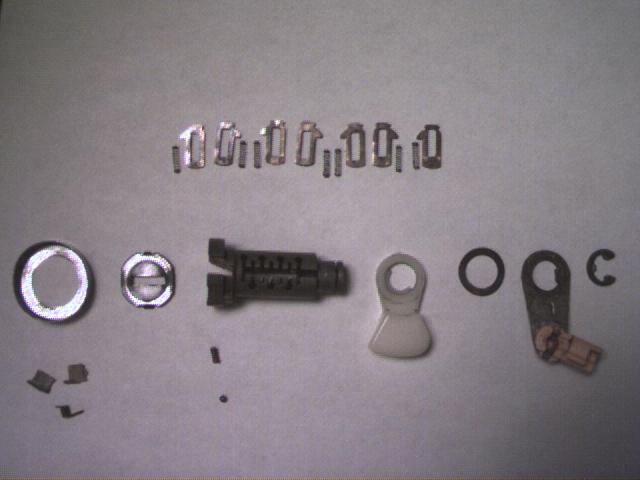

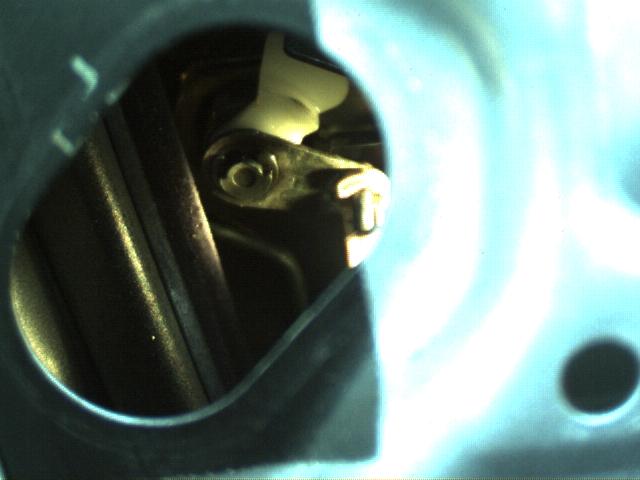

Attached Thumbnails Need Help Now-door-lock-back-complete.jpg   Need Help Now-door-handle-rod.jpg   Need Help Now-door-lock-exploded.jpg   Need Help Now-door-lock-rod.jpg
Reply
Old Jun 24, 2007 | 11:55 AM
  #5
Evil Aviator's Avatar
Rotorhead
Tenured Member 15 Years

Joined: Feb 2001
Posts: 9,136
Likes: 39
From: Charlottesville, Virginia, USA
OK, if it does't work quite right, just adjust the vertical rod up and down in the clamshell type nylon clamp.
Reply
Old Jun 24, 2007 | 05:30 PM
  #6
2slw4u's Avatar
Thread Starter
ZOOM-ZOOM
Tenured Member 15 Years
iTrader: (4)

Joined: Aug 2006
Posts: 336
Likes: 0
From: Colorado
it works great
Reply
Old Jun 24, 2007 | 05:58 PM
  #7
87rx7girl's Avatar
Banned. I got OWNED!!!

Joined: Mar 2005
Posts: 526
Likes: 0
From: san antonio TX
removing door handle 101

step one. put tape around the door handle on the outside.
2. put your window all the way down.
3. take off your door pannle
4 unbolt the 2 bolts and remove the lock arm
5. wiggle the door handle threw to the front with any force nessasary. bringing the latch arm to the exterior of the car.

doing so will now make you able to remove the arm that you can not remove from inside the door. and it will make it 10x easier on you.

you need to get the latch arm threw to the front of the door.
Reply
Old Jun 24, 2007 | 06:39 PM
  #8
clokker's Avatar
Cake or Death?
Tenured Member 10 Years
iTrader: (2)

Joined: Jan 2007
Posts: 10,249
Likes: 64
From: Mile High
Originally Posted by 87rx7girl
step one. put tape around the door handle on the outside.
2. put your window all the way down.
3. take off your door pannle
4 unbolt the 2 bolts and remove the lock arm
On S5s one nut is accessible with the window UP and the other with the window DOWN.
