Need help. ID these wires.
02-13-04, 01:50 AM
#5
Well.
A goes no where/ Just 2 dead wires.
After thought. I'm almost guessing the temp sensor behind the water pump. I can't remember if that is connected to the EFI harness or the other one though.
After Mapping out my NA harness I figred out the White plug(B) is the ACV one.
D could be the O2 snesor. I'll have to check my hanresses again.
A goes no where/ Just 2 dead wires.
After thought. I'm almost guessing the temp sensor behind the water pump. I can't remember if that is connected to the EFI harness or the other one though.
After Mapping out my NA harness I figred out the White plug(B) is the ACV one.
D could be the O2 snesor. I'll have to check my hanresses again.
02-13-04, 02:02 AM
#6
Glock Lover
Join Date: Mar 2001
Location: Currently residing in St Charles, MO
Posts: 2,223
Likes: 0
Received 0 Likes
on
0 Posts
Now that I look at your second picture, i recall something. The two wires look like they should be in a plug similar to the white one a little behind it on the harness. I believe these two run under the hump of the UIM, and one goes to the cylindrical thing on the top of the UIM, and the other plug goes to something near the rear of the UIM between it and the firewall. Theyre usually the last two things you unhook before the UIM becomes completely free from the engine.
Trending Topics
02-13-04, 02:19 PM
#9
Well I'm pretty sure it's not the BAC.
If you look in the background I believe that square grey plug is the BAC. That is closer to the injector plugs.
I included a crappy pic to show the placement of the above pictures inline of the harness.
A is where the ABCD pic is and B is where the 2 wires are.
If you look in the background I believe that square grey plug is the BAC. That is closer to the injector plugs.
I included a crappy pic to show the placement of the above pictures inline of the harness.
A is where the ABCD pic is and B is where the 2 wires are.
Last edited by Digi7ech; 02-13-04 at 02:22 PM.
02-13-04, 02:39 PM
#10
Zoom Zoom Boooom
Join Date: Mar 2001
Location: Freakmont, CA
Posts: 987
Likes: 0
Received 0 Likes
on
0 Posts
- A; not sure, the picture crops out the connectors on the end take a pic of the connectors it would help a lot.
- B&C; ACV connectors (there are two connections on the ACV each connection has two wires)
- D; O2 sensor even though that connector on the end is not a factory Mazda connector.
- 2 wires off the injector harness: water temp on back of the water pump housing. Again looks to be an "altered" blue connector not factory Mazda.
If all else fails you should "tone out" each wire with the FSM’s ECU pin out detail and figure it out. Do you need the PDF of the FSM's engine management section? Let me know I can e-mail it to you.
- Dana “where there is a rotary in need, there is a friend indeed”
- B&C; ACV connectors (there are two connections on the ACV each connection has two wires)
- D; O2 sensor even though that connector on the end is not a factory Mazda connector.
- 2 wires off the injector harness: water temp on back of the water pump housing. Again looks to be an "altered" blue connector not factory Mazda.
If all else fails you should "tone out" each wire with the FSM’s ECU pin out detail and figure it out. Do you need the PDF of the FSM's engine management section? Let me know I can e-mail it to you.
- Dana “where there is a rotary in need, there is a friend indeed”
02-13-04, 02:57 PM
#11
A= Terminates to 2 dead wires. No connector on them at all.
Are you sure about the Pump and O2 sensor?
I swear that the O2 sensor plug on my NA went under the Intake manifold
As for the water sensor. I thought the plug went from the harness to the sensor and was a direct shoot off.
Why would it be place at the injectors and have to cross over itself?
I have a full FSM for a S4 but I couldn;t find pics of a full harness. Only the pin pic and broken pieces of emissions parts.
Are you sure about the Pump and O2 sensor?
I swear that the O2 sensor plug on my NA went under the Intake manifold
As for the water sensor. I thought the plug went from the harness to the sensor and was a direct shoot off.
Why would it be place at the injectors and have to cross over itself?
I have a full FSM for a S4 but I couldn;t find pics of a full harness. Only the pin pic and broken pieces of emissions parts.
02-13-04, 04:31 PM
#12
Zoom Zoom Boooom
Join Date: Mar 2001
Location: Freakmont, CA
Posts: 987
Likes: 0
Received 0 Likes
on
0 Posts
You don't need a whole engine harness break out drawing you just need a couple of things.
- Multi meter
- FSM
- Paper and pen (write down your notes)
- Tape (to label the wire once you have figured it out)
Lets take that O2 wire for example. Take you multi meter set it to a continuity check (when this is selected when you touch the two terminals together you should hear a tone).
Take one terminal and plug it into pin # 2D, take the other terminal and touch the wire we think is the O2 wire if you get a sound your golden.
Time consuming but easy.
- Dana
- Multi meter
- FSM
- Paper and pen (write down your notes)
- Tape (to label the wire once you have figured it out)
Lets take that O2 wire for example. Take you multi meter set it to a continuity check (when this is selected when you touch the two terminals together you should hear a tone).
Take one terminal and plug it into pin # 2D, take the other terminal and touch the wire we think is the O2 wire if you get a sound your golden.
Time consuming but easy.
- Dana
02-13-04, 04:49 PM
#13
Damn you. Your making me work.
Fine Now I gotta find my multimeter and get it done once I get home.
I guess I can just figure it out from the pin outs at the ecu.
I should take another pic of the harnes. I'v redone the ECU to firewall section so it's nice and neat.
I also relocated the knock sensor so I can easily mount it next to the ECU and FCD.
Fine Now I gotta find my multimeter and get it done once I get home.
I guess I can just figure it out from the pin outs at the ecu.
I should take another pic of the harnes. I'v redone the ECU to firewall section so it's nice and neat.
I also relocated the knock sensor so I can easily mount it next to the ECU and FCD.
Last edited by Digi7ech; 02-13-04 at 04:51 PM.
02-17-04, 08:34 PM
#15
OK I'm Back. I did tone out the plugs and half went no where. The others were grounds goin to plug 3a I think.
Now Color group A in the first pic. I took the wrapping off around that.
It is 3 wires.
1 is the O2 wire with the metal ground cable.
another is a Ground.
I have no Idea what the other is.
Once I get home I can give the color codes of the wires.
I don't have a Haynes so if someone with on could check them up for me it would be awesome.
Now Color group A in the first pic. I took the wrapping off around that.
It is 3 wires.
1 is the O2 wire with the metal ground cable.
another is a Ground.
I have no Idea what the other is.
Once I get home I can give the color codes of the wires.
I don't have a Haynes so if someone with on could check them up for me it would be awesome.
02-23-04, 08:16 PM
#16
OK, SO I can remember. Me and J-rat compared the plugs and group A was the O2 sensor and the BAC plug.
B and C were for the ACV.
D----......mmmm Aux fan i think we guessed.

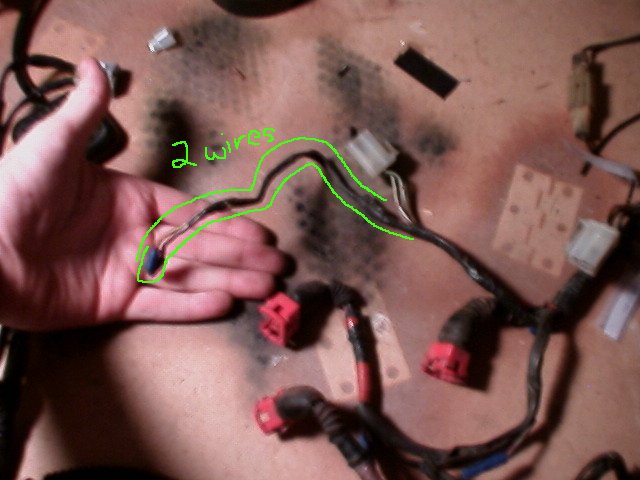

The 2 wires in the second pic are the Water sensor plug that goes to the back of the water pump housing.
Now I just have to get some 10 ohm/10watt resistors and place them inline and find the Voltage pin on the ECU so I can get everything ready to install.
B and C were for the ACV.
D----......mmmm Aux fan i think we guessed.
The 2 wires in the second pic are the Water sensor plug that goes to the back of the water pump housing.
Now I just have to get some 10 ohm/10watt resistors and place them inline and find the Voltage pin on the ECU so I can get everything ready to install.
