Need Electriacal Help Please
Hello,
I am finishing up a TII swap and have run into a major electrical problem.
I also completed a battery relocation while I was at it. I have voltage at the battery, the remote terminals, both sides of the main fuse, and also have power at every fuse.

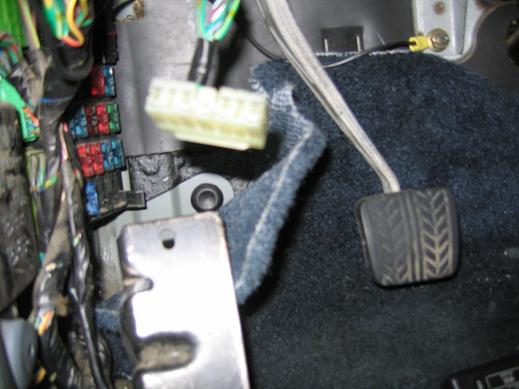

My son, who is gone now in the Marines, unhooked the throttle cable at which time he apparently unhooked some of the wiring under the dash to complete this task. The conector at the little sliver box underneath the dash was unplugged. I plugged this back in. I found 2 other connectors (see attached pics) and have not been able to determine where they go.
When I turn the ignition key to the on position my stereo amps have power, the clock turns on and runs, but I have no other dash lights, with the exception of the add coolant and oil level lights. Both are empty at this time. Also the conecter for the oil level and coolant level are both on after I plugged back in and they stay on (buzzing) regardless what position the key is in.
I attempted to turn the engine over but there is absoluttely nothing.

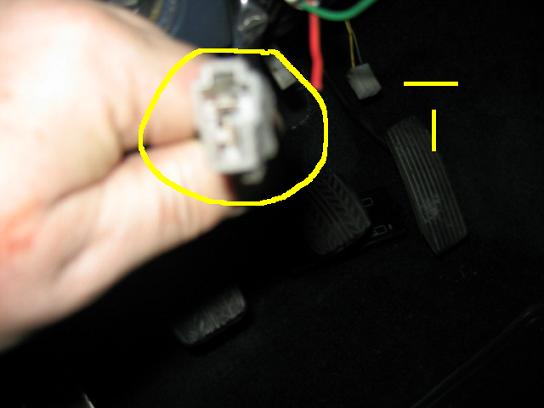

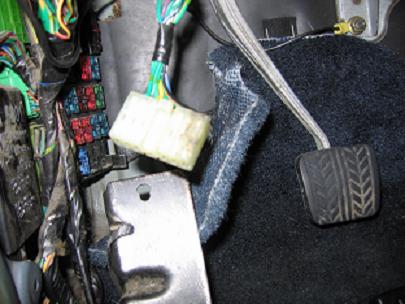

The connector in pic 1 and 2 is on the left side near the fuse box itsled and the connector in pic 2 is near (above) the gas pedal.
Any help would be greatly appreciated.
Thanx
Michael
I am finishing up a TII swap and have run into a major electrical problem.
I also completed a battery relocation while I was at it. I have voltage at the battery, the remote terminals, both sides of the main fuse, and also have power at every fuse.
My son, who is gone now in the Marines, unhooked the throttle cable at which time he apparently unhooked some of the wiring under the dash to complete this task. The conector at the little sliver box underneath the dash was unplugged. I plugged this back in. I found 2 other connectors (see attached pics) and have not been able to determine where they go.
When I turn the ignition key to the on position my stereo amps have power, the clock turns on and runs, but I have no other dash lights, with the exception of the add coolant and oil level lights. Both are empty at this time. Also the conecter for the oil level and coolant level are both on after I plugged back in and they stay on (buzzing) regardless what position the key is in.
I attempted to turn the engine over but there is absoluttely nothing.

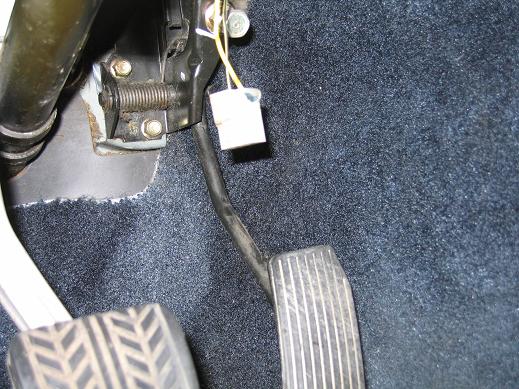

The connector in pic 1 and 2 is on the left side near the fuse box itsled and the connector in pic 2 is near (above) the gas pedal.
Any help would be greatly appreciated.
Thanx
Michael
Last edited by devdog1one; 02-20-05 at 05:38 PM. Reason: spelling
02-20-05, 05:43 PM
#2
West-coast Hoser... eh
Join Date: Feb 2004
Location: Victoria BC, Canada
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
the wide one is for your gauge cluster.. or looks like it at least.
pull it out and straight through on the right side you'll see the male connector it needs to go in.
As for the other one,.. looks like it might be the plug into the fuel pump relay located near/above the gas pedal.
hope that gives some ideas/helps.
pull it out and straight through on the right side you'll see the male connector it needs to go in.
As for the other one,.. looks like it might be the plug into the fuel pump relay located near/above the gas pedal.
hope that gives some ideas/helps.
02-20-05, 06:54 PM
#3
Senior Member
Thread Starter
Join Date: Jul 2002
Location: Mt. Pleasant, MI
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts
Not it
The wires are way to short to go to th eguage cluster.
The second wire over by the gas pedal just loops up by the fuel pump relay.
I still don't have power to the starter. Everything is gounded well.
Thanx
Michael
The second wire over by the gas pedal just loops up by the fuel pump relay.
I still don't have power to the starter. Everything is gounded well.
Thanx
Michael
02-20-05, 07:07 PM
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The multi-socket plug might very well be for the instrument cluster. On the back of the cluster you have two round plugs in the harness. The other end of the harness is only a foot or so away and looks similar to the one in the picture.
Give us the wire colors on the other plugs, not the multi-socket one. Then we can tell you what they are for. One is probably for the inhibit sw that should be on the clutch pedal.
Give us the wire colors on the other plugs, not the multi-socket one. Then we can tell you what they are for. One is probably for the inhibit sw that should be on the clutch pedal.
02-20-05, 07:23 PM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The clutch interlock switch should have a black/green wire and a black/red wire.
The connector b/t the two meter round plugs and the front harness should be a 21pin connector. Ten holes on top and eleven on the bottom. The very middle wire in the bottom row should be a red/white wire.
I got this info from the free online factory service manual. Wiring section. Its the series four 88 model. Sorry, didn't pay attention to your year car.
The connector b/t the two meter round plugs and the front harness should be a 21pin connector. Ten holes on top and eleven on the bottom. The very middle wire in the bottom row should be a red/white wire.
I got this info from the free online factory service manual. Wiring section. Its the series four 88 model. Sorry, didn't pay attention to your year car.
02-20-05, 07:33 PM
#6
Senior Member
Thread Starter
Join Date: Jul 2002
Location: Mt. Pleasant, MI
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts
Colors
One wire is black with a yellow stripe running lengthwise and the other is yellow with what appears to be orange (light brown maybe) stripes that round the wire about every 1.5 inches.
What would make the oil level and add coolant buzzers stay on even with the key off?
Thanx
Michael
What would make the oil level and add coolant buzzers stay on even with the key off?
Thanx
Michael
