name that plug!!!!! **pics**
12-18-05, 11:04 PM
#1
name that plug!!!!! **pics**

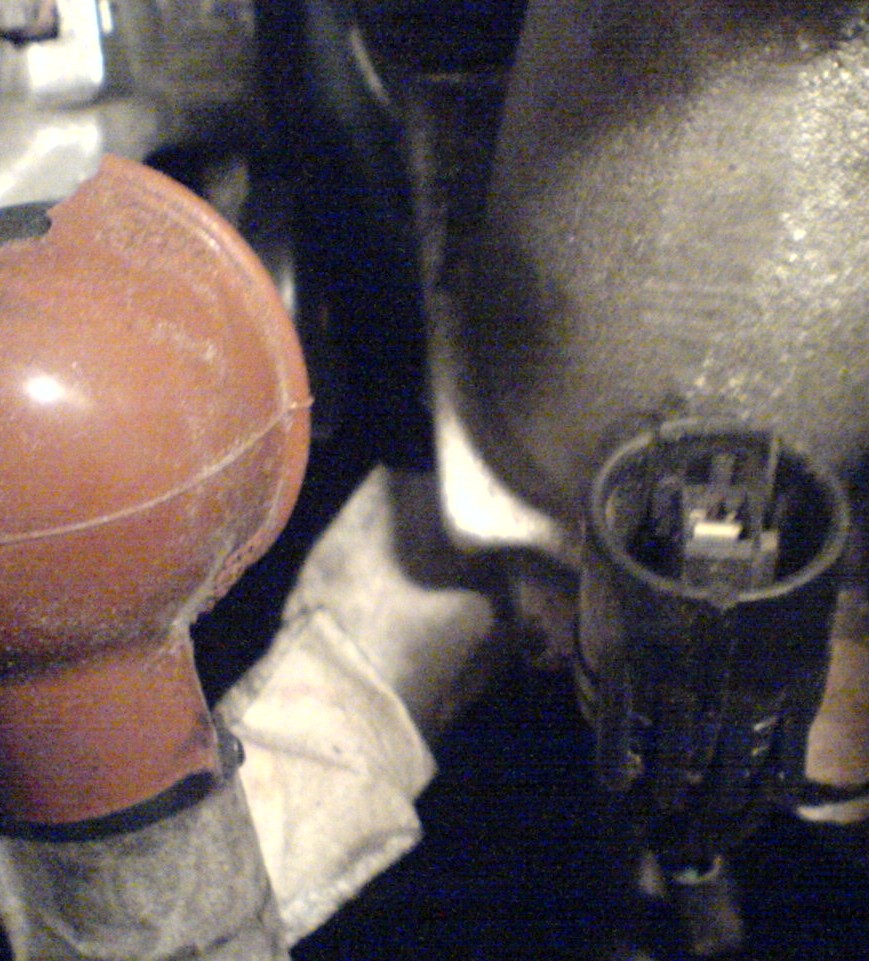

ok here are the hints:
1. it is black
2. the shape is round
3. one hole where pin goes in
4. green wrie w/ black stripe & black surround
5. it is at the end of the harness in the group of wires with the pirmaries and water pump plug
I put the whole thing together and it ran like *** so i took the manifolds apart to replace the rubber fuel injector grommets. I had this sticking out near the alt. but could not find where to plug it in. I don't know if this plug has anything to do with the poor running or not.
Ask if more pics or info could help.....
1. it is black
2. the shape is round
3. one hole where pin goes in
4. green wrie w/ black stripe & black surround
5. it is at the end of the harness in the group of wires with the pirmaries and water pump plug
I put the whole thing together and it ran like *** so i took the manifolds apart to replace the rubber fuel injector grommets. I had this sticking out near the alt. but could not find where to plug it in. I don't know if this plug has anything to do with the poor running or not.
Ask if more pics or info could help.....
12-18-05, 11:06 PM
#2
Nurse I need 1300cc's NOW
that looks like the plug for the fuel adjustent. the dial located ight next to the MAP sensor.. although what the hell is it doing near the alternator?? but i could be wrong. but ive only pulled harnesses from s4's sorry
12-19-05, 12:47 AM
#4
who shall win the grand prize? is it a plug for the MAP sensor (i still don't know what or where that is) as alwayssideways said? or could it be an optional plug for the water pump?
If sommone could fill me in on this map thing that would be nice
If sommone could fill me in on this map thing that would be nice
12-19-05, 01:39 AM
#6
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Ignore all of the above...
Correct answer: temp switch for the auxilary electric fan fitted to some models. If you don't have the fan (located in front of the AC condensor) then you won't have the temp switch, hence the spare plug. If you do have the fan, it should be plugged into the back of the temp switch on the back of the water pump housing.
Correct answer: temp switch for the auxilary electric fan fitted to some models. If you don't have the fan (located in front of the AC condensor) then you won't have the temp switch, hence the spare plug. If you do have the fan, it should be plugged into the back of the temp switch on the back of the water pump housing.
Trending Topics
12-19-05, 09:36 AM
#8
Originally Posted by NZConvertible
Ignore all of the above...
Correct answer: temp switch for the auxilary electric fan fitted to some models. If you don't have the fan (located in front of the AC condensor) then you won't have the temp switch, hence the spare plug. If you do have the fan, it should be plugged into the back of the temp switch on the back of the water pump housing.
Correct answer: temp switch for the auxilary electric fan fitted to some models. If you don't have the fan (located in front of the AC condensor) then you won't have the temp switch, hence the spare plug. If you do have the fan, it should be plugged into the back of the temp switch on the back of the water pump housing.
