NA front cover tap/oil feed and return lines
ok i have tried searching and have found no solid answers really.

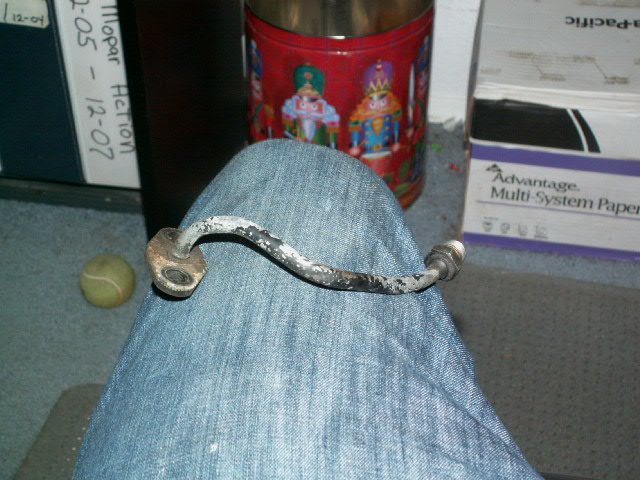

i have a frankenstein engine, s4 turbo irons and s5 NA housings and s5 NA front cover. i need to tap my font cover so i can have a oil return line, what size should i tap the front cover? also i have the stock hard line that connects to the turbo, should i just switch to all SS braided lines instead of trying o hunt down all the stock oil lines.
i have a frankenstein engine, s4 turbo irons and s5 NA housings and s5 NA front cover. i need to tap my font cover so i can have a oil return line, what size should i tap the front cover? also i have the stock hard line that connects to the turbo, should i just switch to all SS braided lines instead of trying o hunt down all the stock oil lines.
#2
Senior Member
iTrader: (4)
Join Date: Jan 2009
Location: Amherst, Massachusetts
Posts: 298
Likes: 0
Received 0 Likes
on
0 Posts
That pic is the feed line not the return line yea? I have a similar problem since the return line I have from my s4 engine doesn't fit my s5 turbo. I've been researching using AN fittings and braided lines. If you went that route, all you'd have to do is drill and tap for the AN fitting that would bolt right to the front cover.
Trending Topics
#8
Top Down, Boost Up
iTrader: (7)
You definitely need to make the drain larger. It needs to be large enough to prevent excess pressure from building inside the CHRA. Pressure will drive oil past the seals into the intake/exhaust. Use -10 (5/8" OD) for the drain. That'll be comparable size to stock.
Another thing to avoid would be 90º fittings. Use 45º fittings, and make sure the drain line will not be sitting horizontal to ensure proper flow.
Another thing to avoid would be 90º fittings. Use 45º fittings, and make sure the drain line will not be sitting horizontal to ensure proper flow.
#9
Senior Member
Thread Starter
iTrader: (2)
Join Date: Dec 2008
Location: lynnwood, WA
Posts: 387
Likes: 0
Received 0 Likes
on
0 Posts
hmm ok ill retap it larger then the reason i went with that is becase i went based off of the feed line or whatevewr line is in the picture..good to now thoughim glad you guys told me.
#11
Senior Member
Thread Starter
iTrader: (2)
Join Date: Dec 2008
Location: lynnwood, WA
Posts: 387
Likes: 0
Received 0 Likes
on
0 Posts
yeah i measured the feed line and its 1/4 inch accross on the inside diameter, and i found a -AN fitting that was a -6AN fitting with a 1/4 inch inside diameter so i figured i would go with that.. but ill definetley change that.
