msd location
04-05-11, 10:54 PM
#2
I mounted mine on top of the fan shroud. Ran the wires all nice and neat between the radiator and upper support. I believe you are supposed to mount it in the cab preferably. But anywhere you find room that will keep it from the elements.
If you are only installing one, it has to be to the primary coils. It takes two more for the trailing coils.
If you are only installing one, it has to be to the primary coils. It takes two more for the trailing coils.
04-06-11, 09:25 AM
#4
Rotary Freak
Mount it on the frame that holds the hood latch. You know, the frame just aft of the frame that holds the numerous relays in front of the radiator. You mount it there to keep it cool. Notice the ribs on the MSD..........they are there to remove heat.
That said and after buying and installing three of these in the past......................on a non race car, non super duper hot rod RX...............waste of money imho. Better off having put the money in DBA or LEXCX or heck, just COP or XOM. I'd at least made some money to buy something of more use.

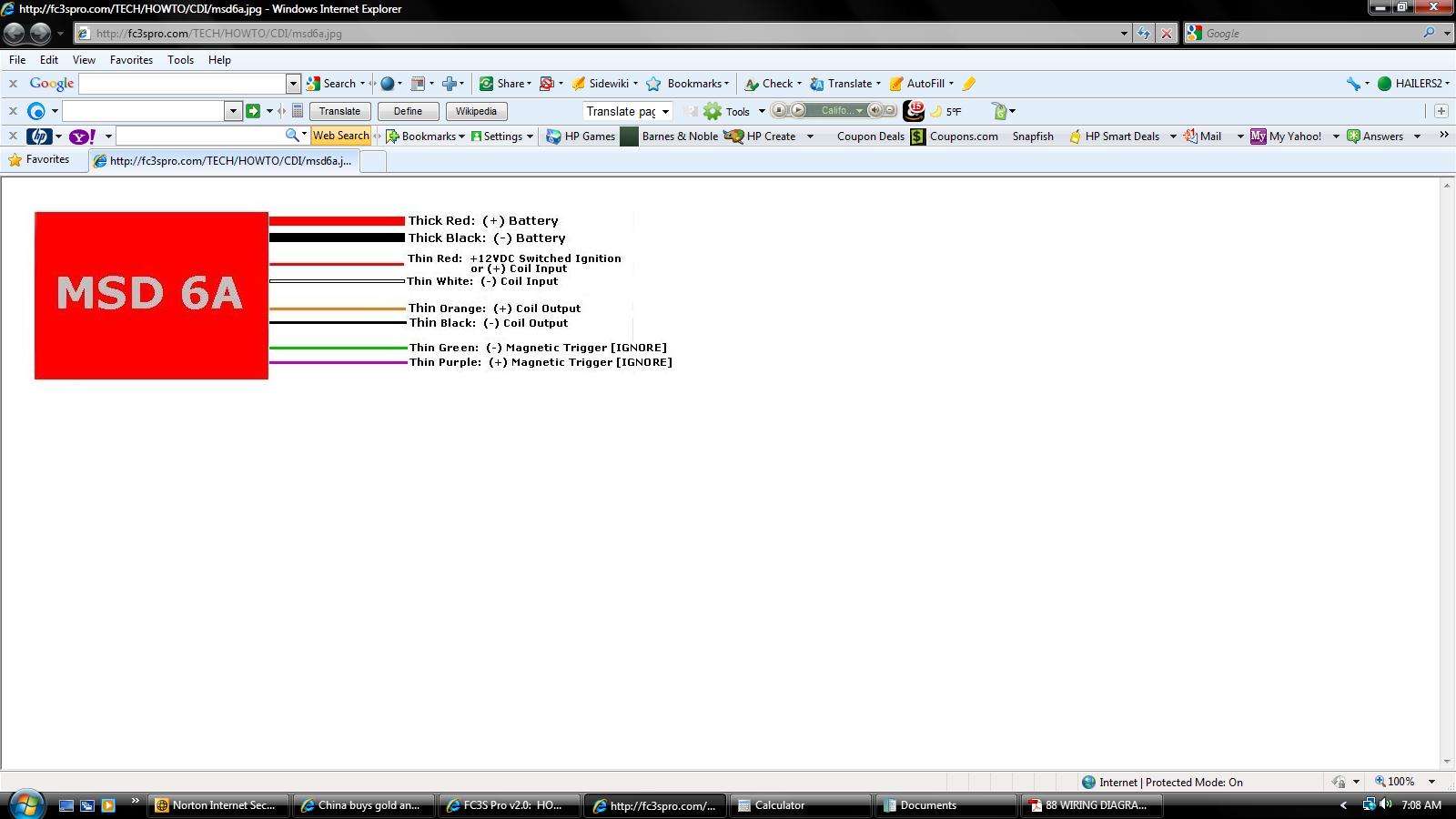

Someone posted the two jpg attached recently. Might be of some help to you. You might have to go the FC3S PRO site to see the pictures better than what is attached.
That said and after buying and installing three of these in the past......................on a non race car, non super duper hot rod RX...............waste of money imho. Better off having put the money in DBA or LEXCX or heck, just COP or XOM. I'd at least made some money to buy something of more use.
Someone posted the two jpg attached recently. Might be of some help to you. You might have to go the FC3S PRO site to see the pictures better than what is attached.
04-07-11, 10:36 AM
#6
Junior Member
Thread Starter
Join Date: Mar 2010
Location: Florida
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
well i am not buying it. My dad had one he was going to use on another car, but he got ride of the car before he got around to installing it, so he said I could have it.
