Mass Air Flow sensor help
Hey im making my own cold air intake so i was taking apart my stock air box assembly and i took out my mass air flow sensor and it had some wires hanging out so i pulled them off and i took it inside and i realized i didnt see which one connected to what, if anyone with a second gen rx7 could take those 2 screws out from the side and pull it out about an inch and take a pic of the wires conencted to the wire harness i would greatly apreciate it, it would save me hours of trial and error.
#3
DOWNSTAIRS MIXUP
Join Date: Mar 2003
Location: Lampasas, TX
Posts: 2,723
Likes: 0
Received 0 Likes
on
0 Posts
I'd love to help, but I have an S5 (and yours is an 87, making it an S4). Unfortunately, they have different MAF's. The 86-88 (S4's) have a trap door type MAF. The 89-91 (S5's) have the straight through ones. Just be patient, someone will help as long as you bump the thread.
#5
Junior Member
Join Date: Nov 2004
Location: Las Vegas
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
Did the wires for the AFM pull out of the AFM connector? Im pretty sure when you take out the air box thats the only connector that would have to be disconnected.
Take some pics if you can.
Take some pics if you can.
#6
1986 Rx-7
Thread Starter
iTrader: (4)
Join Date: Apr 2005
Location: Wyoming
Posts: 514
Likes: 0
Received 0 Likes
on
0 Posts
well theres a side port from the afm and i tried to unclip it but i couldnt so i unscrewed it and on the wiring harness there are prongs that stick out, the afm has wires that fit snugly over the prongs, ill go get some pics if i can get my digi to work
Trending Topics
#8
1986 Rx-7
Thread Starter
iTrader: (4)
Join Date: Apr 2005
Location: Wyoming
Posts: 514
Likes: 0
Received 0 Likes
on
0 Posts
Ok lets see if they work
ok well i have the pictures uploaded and they say they are attached, in manage atachments but why arent they showing up?
Last edited by BuujinBejiita; 04-27-05 at 09:31 PM.
#11
Junior Member
Join Date: Nov 2004
Location: Las Vegas
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
Guess they didnt work.....
Youre ok if you just leave the AFM hooked up and you unbolt if from the Air box.
But I dont really understand what youre saying. If you cant get the pics to work just explain it again. Im confused.
Youre ok if you just leave the AFM hooked up and you unbolt if from the Air box.
But I dont really understand what youre saying. If you cant get the pics to work just explain it again. Im confused.
#12
Lives on the Forum
Let me get this straight- there's a clip attached to the external plug on the AFM to kkep it from vibrating off, and you didn't know this, so you couldn't get the plug off, so you unscrewed the connector retaining screws and pulled on the whole mess, yanking the INTERNAL wiring out of the plug???
Hmm, those wire colors are not going to be in the schematics, so someone with an open AFM is going to have to help you...Sorry...
BTW, a lot of plugs on our cars have these clips on them...
Hmm, those wire colors are not going to be in the schematics, so someone with an open AFM is going to have to help you...Sorry...
BTW, a lot of plugs on our cars have these clips on them...
#15
1986 Rx-7
Thread Starter
iTrader: (4)
Join Date: Apr 2005
Location: Wyoming
Posts: 514
Likes: 0
Received 0 Likes
on
0 Posts

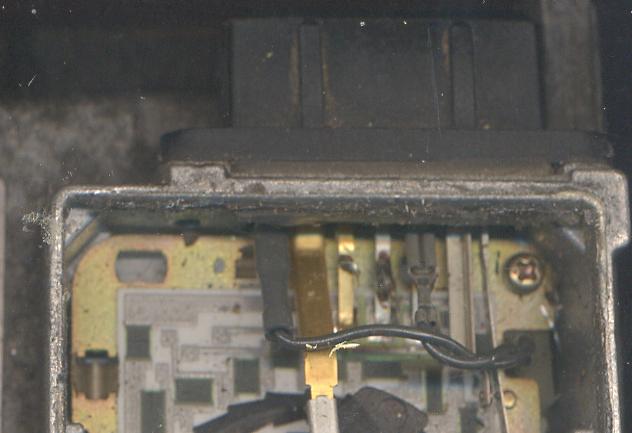

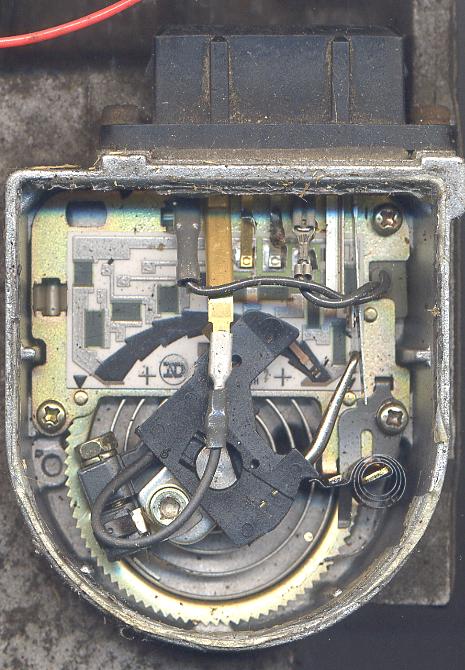

ok ill try to go into detail if u give me your email i can send you the pics, but the meter sits right behind the box right, theres a port on the side where the wiring harness plugs into it, there are 2 screws that hold it in, i unscrewed them and pulled it out and there are 3 wires that have little clips that go onto the wiring harness. so i pulled them off carefully and i just dont know what one goes to the wiring harness
#19
I am 2Furious
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
you can probably get another maf real cheap in the for sale section. All those standalone people don't need them anymore.
https://www.rx7club.com/a-100/
S4 is 1986-1988. S5 is 1989-1991. S4 turbo has 180 HP stock. S5 turbo has 200 HP stock.
https://www.rx7club.com/a-100/
S4 is 1986-1988. S5 is 1989-1991. S4 turbo has 180 HP stock. S5 turbo has 200 HP stock.
