Old Sep 18, 2014 | 04:07 PM
  #26
Erifx's Avatar
Thread Starter
Full Member

Joined: Jul 2011
Posts: 168
Likes: 0
From: Zimmerman, MN

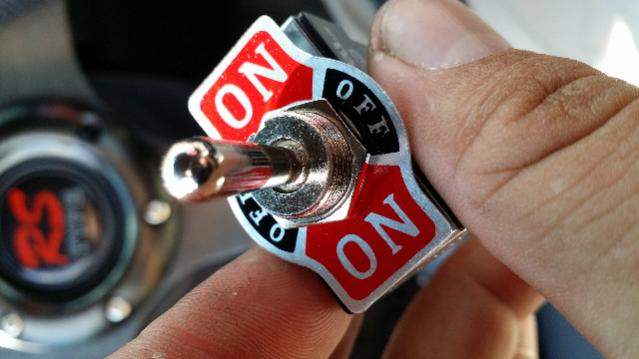

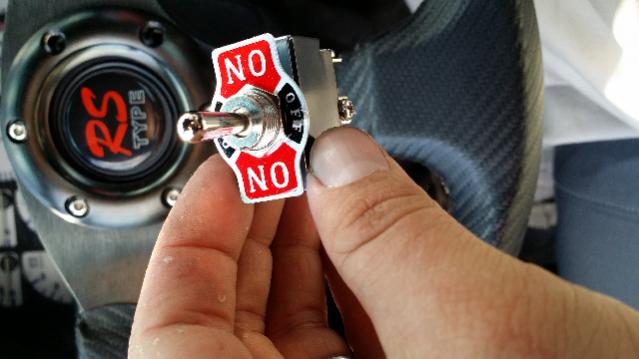

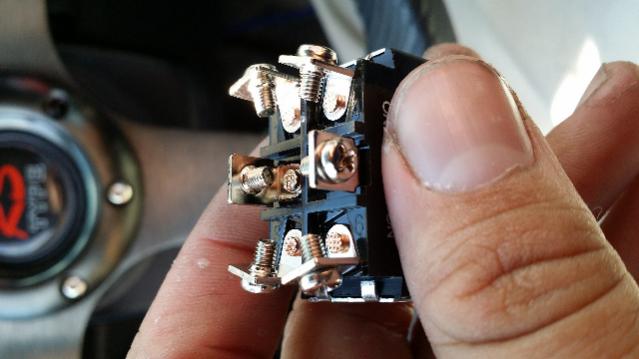

Here's the switch.





Attached Thumbnails Logicon-forumrunner_20140918_160555.jpg
Reply
Old Sep 18, 2014 | 04:11 PM
  #27
Erifx's Avatar
Thread Starter
Full Member

Joined: Jul 2011
Posts: 168
Likes: 0
From: Zimmerman, MN

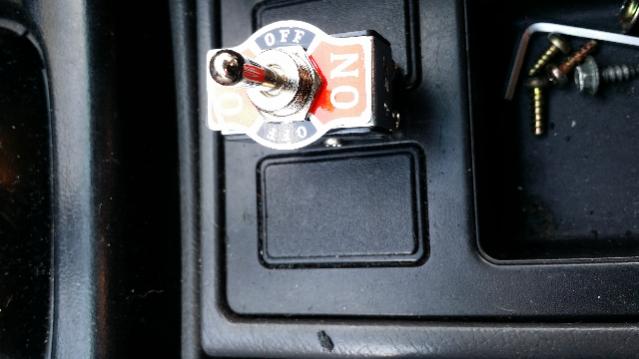

My plan is to run the wires to here.
Reply
Old Sep 18, 2014 | 04:12 PM
  #28
Erifx's Avatar
Thread Starter
Full Member

Joined: Jul 2011
Posts: 168
Likes: 0
From: Zimmerman, MN
Reply
Old Sep 19, 2014 | 10:16 AM
  #29
jjwalker's Avatar
MECP Certified Installer
Tenured Member 05 Years

Joined: Feb 2009
Posts: 3,176
Likes: 3
From: Mesquite, TX-DFW
If those wires are reversing polarity to control the motor, you are going to need to use relays.

It's called "5 wire" and 12volt.com will have a schematic on how to wire up reversing polarity door locks. Just because it says "door locks", the theory is the same.
Reply
Old Sep 19, 2014 | 12:23 PM
  #30
Erifx's Avatar
Thread Starter
Full Member

Joined: Jul 2011
Posts: 168
Likes: 0
From: Zimmerman, MN
I going to try window switches first
Reply
Old Sep 19, 2014 | 01:27 PM
  #31
jjwalker's Avatar
MECP Certified Installer
Tenured Member 05 Years

Joined: Feb 2009
Posts: 3,176
Likes: 3
From: Mesquite, TX-DFW
Originally Posted by Erifx
I going to try window switches first
That would work, just not nearly as reliable over the long term.
