I'm trying to remove LIM, does anyone have a writeup on removing it, specifically all the bolt locations?

I swear I got them all, and it just won't budge.... =/

--Gary



check the FSM, don't know where one is now. It should give you an idea of whats connected to it. I'll go count the bolts/take a pic of mine.



There are 6 bolts that have to come off



Wow Thanks Aesop that's awesome!

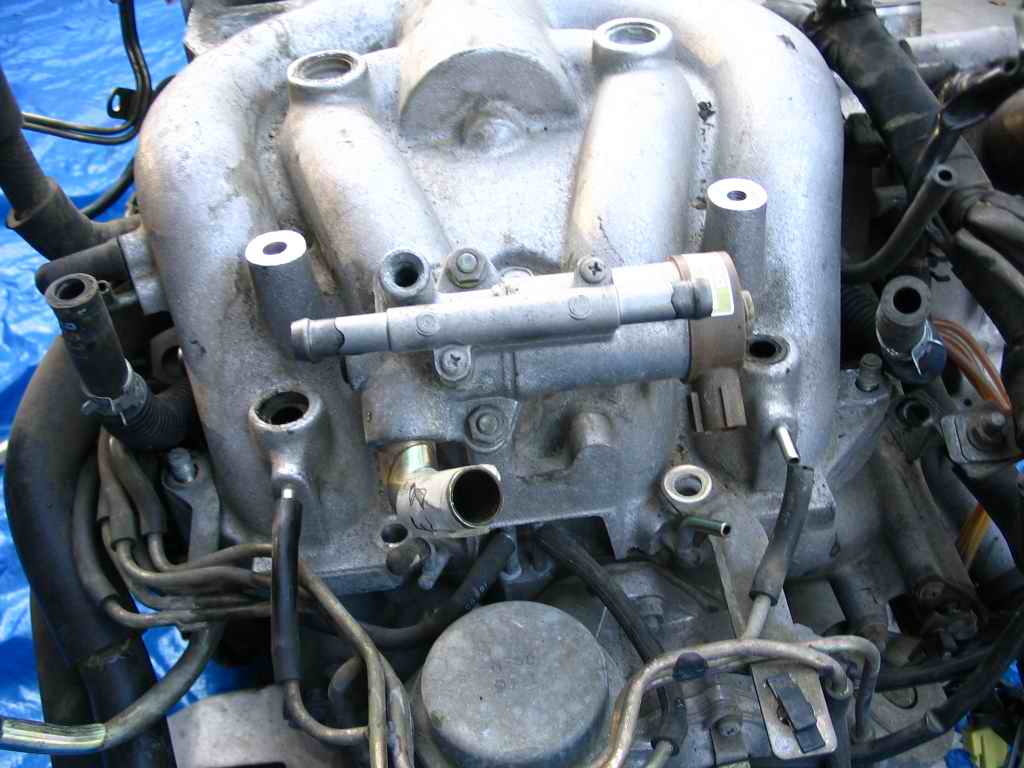

I thought this was considered the LIM, but I guess I'm talking about the UIM still? Here's a picture of where I'm at...




Sorry about the confusion especially since you did all the drawings too, but I'm sure I'll be needing those next anyhow hahah..

Thanks,

--Gary



well look where i noted the studs on the LIM that are circled and say UIM bolts, thats what you need to take off to get the UIM off, my pattern is from an s4, might be different, but thats about where they should be



Smack It



Holy OXIDIZED HELL



ROTFL!

Thanks, the guy I bought it from thought it was cool to detail it.

He didn't use a base to neutralize the cleaner.

-_-;;

--Gary
