lights wont work
#1
"Royal Flush 2o9"
Thread Starter
Join Date: Sep 2010
Location: modesto ca
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
lights wont work
finally got wiring done n cant get any lights to work but the front blinkers. it keeps blowing fuses looking for help maybe a link to wiring dia.
#4
Senior Member
iTrader: (4)
Join Date: Jan 2009
Location: Amherst, Massachusetts
Posts: 298
Likes: 0
Received 0 Likes
on
0 Posts
In addition to the above statements, I would refrain from simply replacing fuses constantly. If a circuit blows a fuse more than once it happened due to excessive amperage, which means you have an electrical problem to fix before you replace the fuse. Cheap fuses break so your more expensive electrical components don't have to .
#5
"Royal Flush 2o9"
Thread Starter
Join Date: Sep 2010
Location: modesto ca
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts

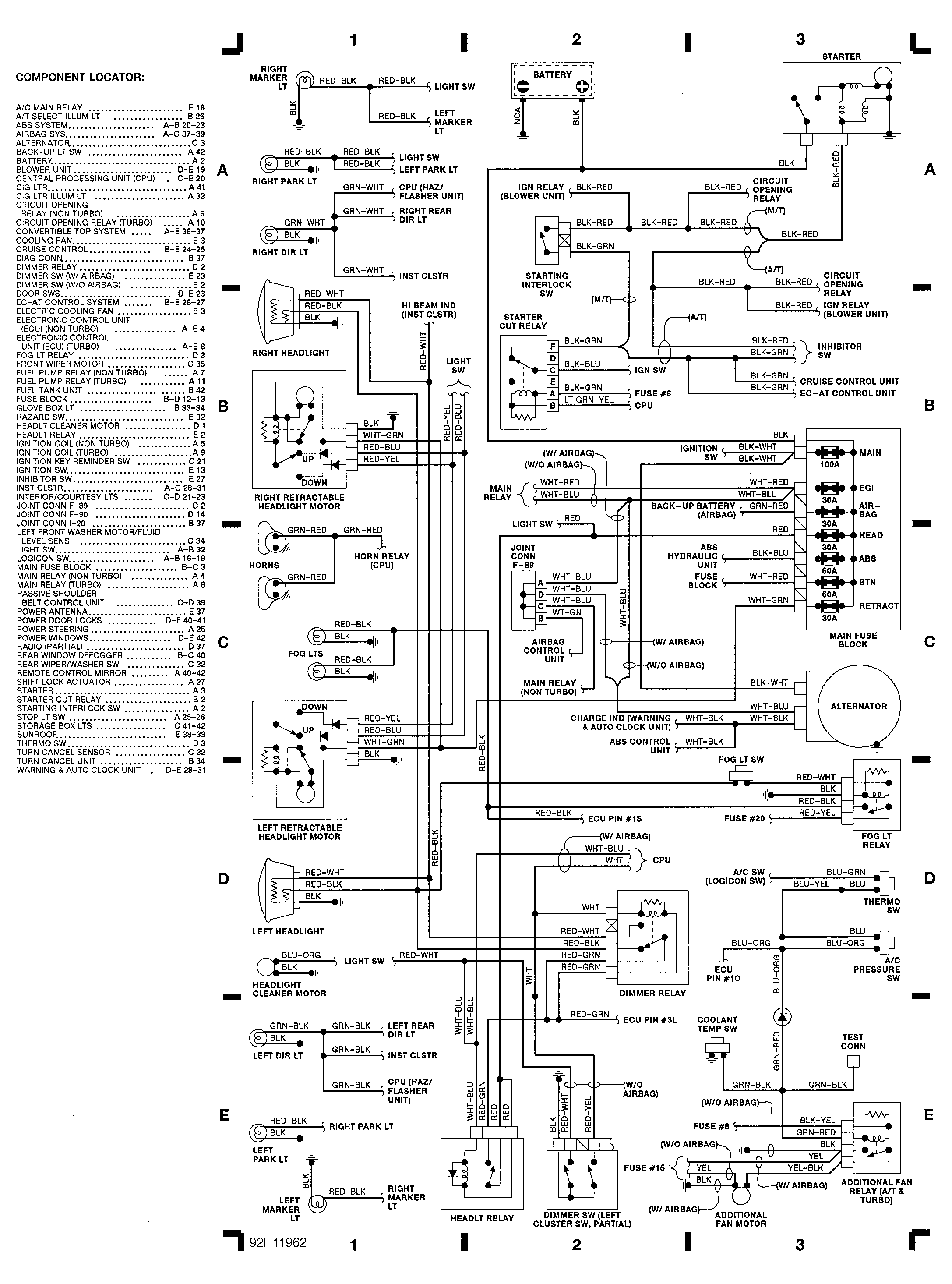

thx 4 pic should help me out. n went to junkyard n ripped 1 apart got an idea where everything went. i took out the black cpu box dat connects to harness that goes to the rear n opened it up found a blown capister fixed that maybe be fix for it. i also found out that i have 2 wires cut. it goes from the cluster surrond from the turn signal could also be the prob. ill put the wire colors pn wen i found out later maybe u guys no wat the wires do
#6
Rotary Freak
Pull the plug off your series fours headlight switch.
Jumper the White/Green wire to the Red/Black wire in the plug. The tail lights and the side marker lights should light up.........proving the problem is not on that side of the circuit but with the switch side of the circuit.
If the those lights don't come on when doing that..........make sure the White/Green wire in the headlight switch plug is hot .
If talking HEADLIGHTS on your series four car.................then pull the headlight switch plug off. Jumper the White/Green wire to the Red/Blue wire in that plug. The headlight assy's should rise up. Lights will not come on.
To make the headlights come on......jumper the pure Black wire to the Red/White wire in the plug. The headlights should come on. If they don't, then the headlight fuse in the engine bay is bad or the headlight relay is problematic.
See the free and online electrical schematics for your series four lighting problem.
As far as the headlights go, all the headlight switch does is send a Ground from the headlght switch to the headlight relay to turn 'em on.
If you don't know how or what jumpering a plug means....................tough.
Jumper the White/Green wire to the Red/Black wire in the plug. The tail lights and the side marker lights should light up.........proving the problem is not on that side of the circuit but with the switch side of the circuit.
If the those lights don't come on when doing that..........make sure the White/Green wire in the headlight switch plug is hot .
If talking HEADLIGHTS on your series four car.................then pull the headlight switch plug off. Jumper the White/Green wire to the Red/Blue wire in that plug. The headlight assy's should rise up. Lights will not come on.
To make the headlights come on......jumper the pure Black wire to the Red/White wire in the plug. The headlights should come on. If they don't, then the headlight fuse in the engine bay is bad or the headlight relay is problematic.
See the free and online electrical schematics for your series four lighting problem.
As far as the headlights go, all the headlight switch does is send a Ground from the headlght switch to the headlight relay to turn 'em on.
If you don't know how or what jumpering a plug means....................tough.
#7
"Royal Flush 2o9"
Thread Starter
Join Date: Sep 2010
Location: modesto ca
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
alright i found out that i got 2 cut wires the red/black n white/green which r main ones? does any no where i can get the harness at? its the lilttle 1 that goes up to the cluster surrond on left where u the blinker switch is
