just posting pics of work im doing
05-05-10, 11:58 AM
#51
Banned. I got OWNED!!!
Thread Starter
iTrader: (4)
Join Date: Oct 2009
Location: az
Posts: 1,110
Likes: 0
Received 0 Likes
on
0 Posts
track only car
i thought long and hard about shaving it. wait until you see the intake manifold i have planned...just waiting to hear back about getting the flange laser and cnc machined
i thought long and hard about shaving it. wait until you see the intake manifold i have planned...just waiting to hear back about getting the flange laser and cnc machined
05-05-10, 01:32 PM
#53
Banned. I got OWNED!!!
Thread Starter
iTrader: (4)
Join Date: Oct 2009
Location: az
Posts: 1,110
Likes: 0
Received 0 Likes
on
0 Posts
2 sources, industrial metal supply and davis salvage. i use alot of remnants so its super cheap...the big aluminum tubing and DOM tubing i buy new.
05-13-10, 12:45 AM
#60
Banned. I got OWNED!!!
Thread Starter
iTrader: (4)
Join Date: Oct 2009
Location: az
Posts: 1,110
Likes: 0
Received 0 Likes
on
0 Posts
not sure yet, maybe stock maybe aftermarket hell maybe dry sump...havent gotten that far yet, if i do drysump i can reinforce the mounts more

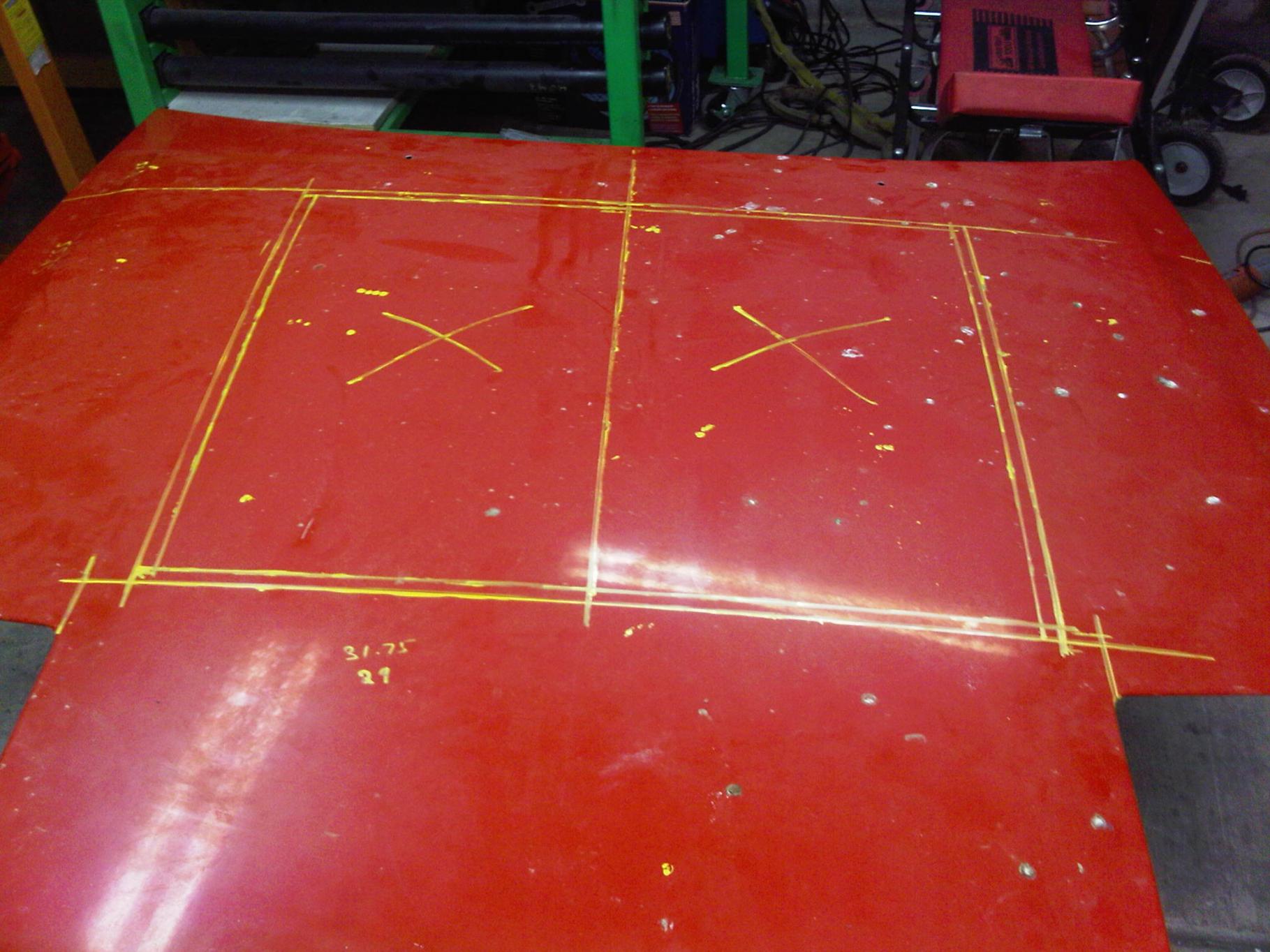

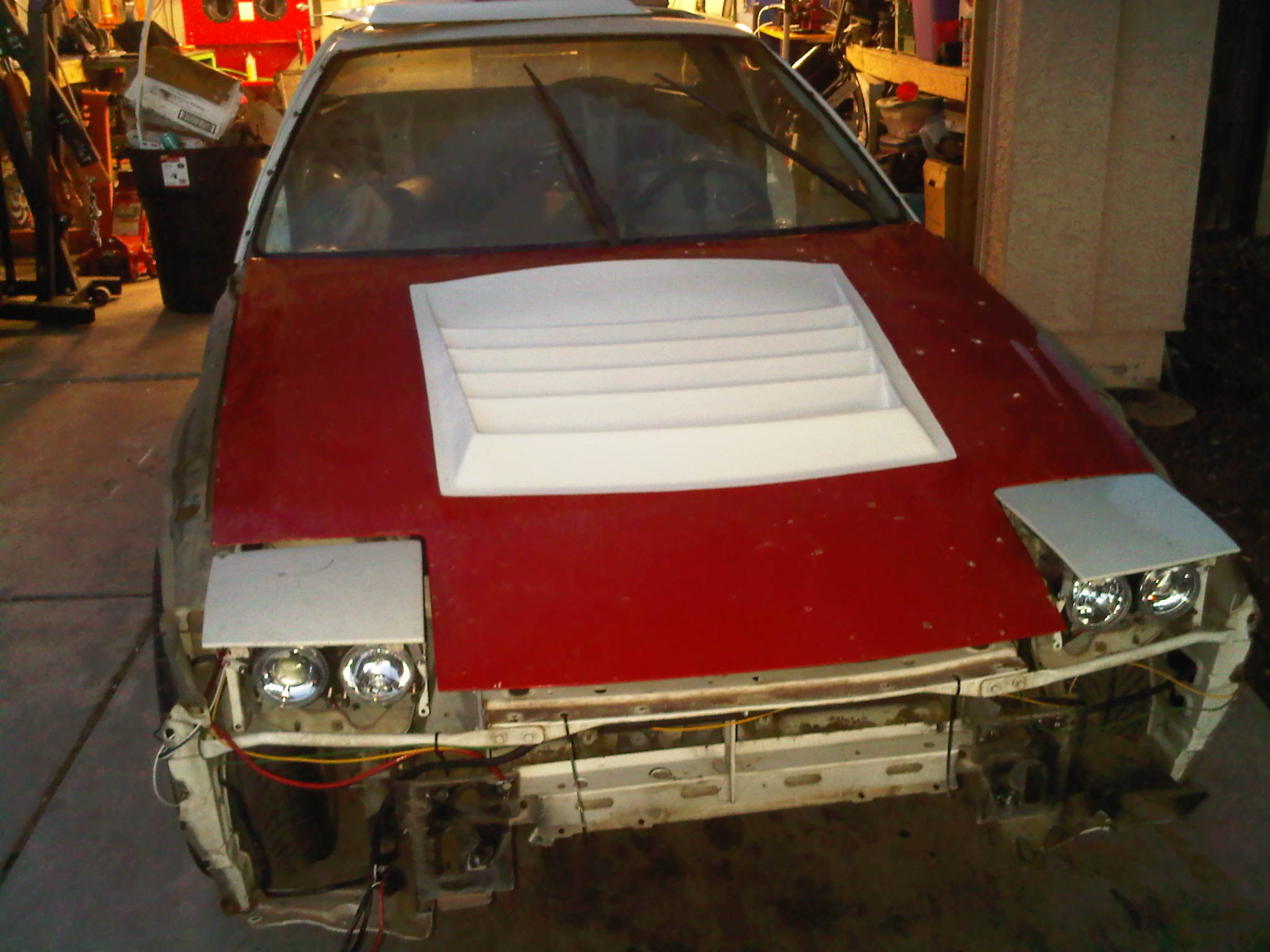

here is a pic of the hood, took a little work to get the hole cut..just have to find a way to reinforce it
here is a pic of the hood, took a little work to get the hole cut..just have to find a way to reinforce it
Last edited by Gurew; 05-13-10 at 12:48 AM.
05-14-10, 02:13 PM
#66
Banned. I got OWNED!!!
Thread Starter
iTrader: (4)
Join Date: Oct 2009
Location: az
Posts: 1,110
Likes: 0
Received 0 Likes
on
0 Posts

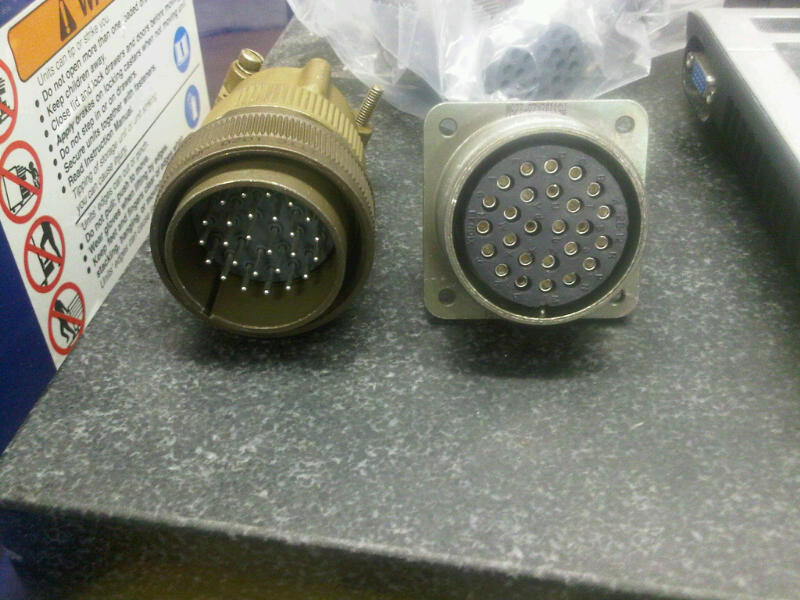

military connector for my engine harness, these are TRUE military connectors..not those queer cheap bastard china knock offs...amphenol brand

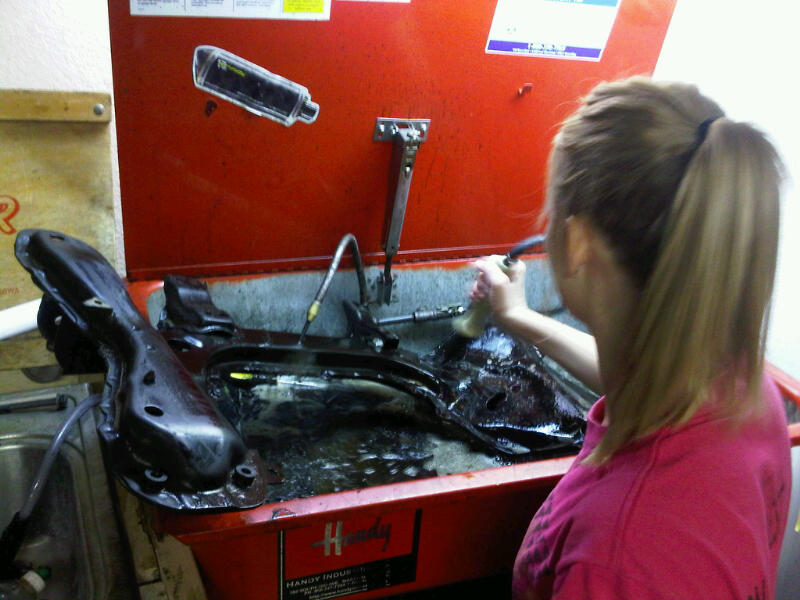

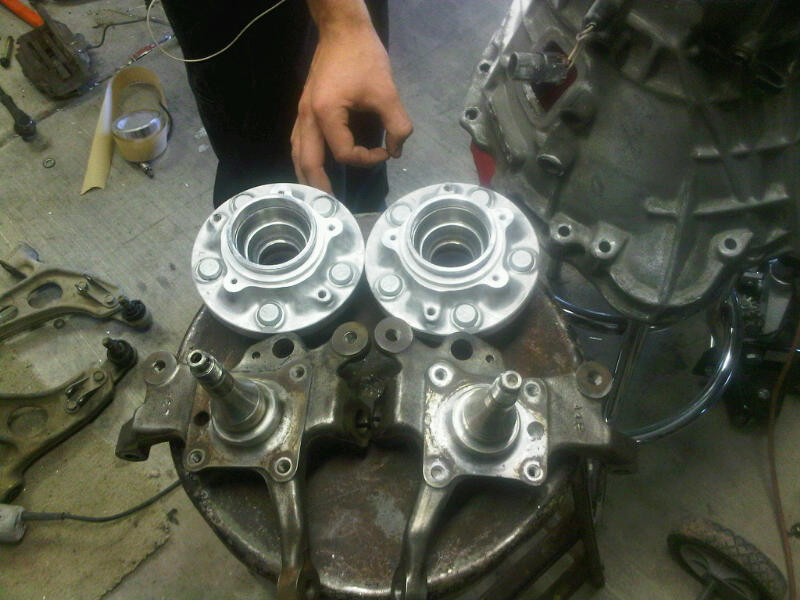

cleaned up parts, ready to mod the steering knuckle clean up some more then powdercoat all this stuff black, put new bearings grease up and put it all back together! all i need todo is source some heim joints m14 dia, 12x1.25..and im not buying some damn ksports....$120 for 2 joints is stupid
05-15-10, 02:14 AM
#70
Banned. I got OWNED!!!
Thread Starter
iTrader: (4)
Join Date: Oct 2009
Location: az
Posts: 1,110
Likes: 0
Received 0 Likes
on
0 Posts
so i was scratching my head trying to figure out how to get the damn wheel bearing races out of the hubs....after some hard thinking i got them out by doing this...

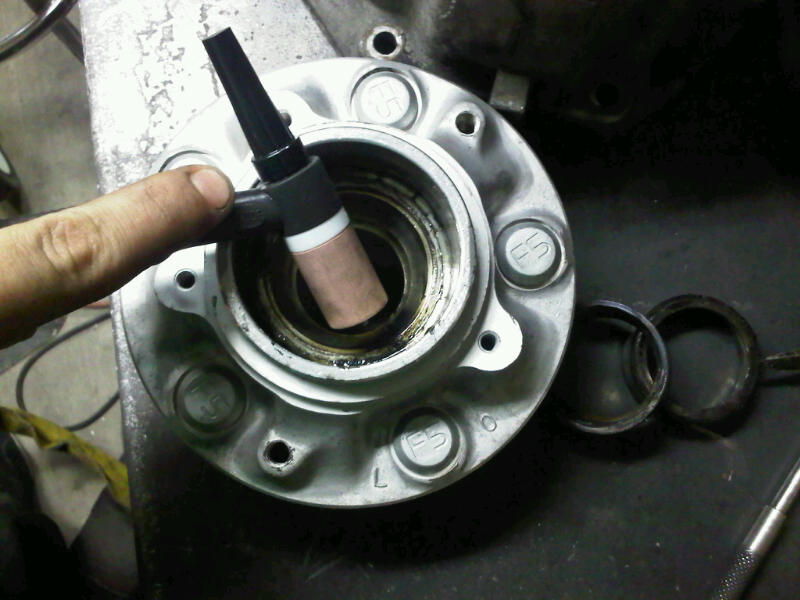

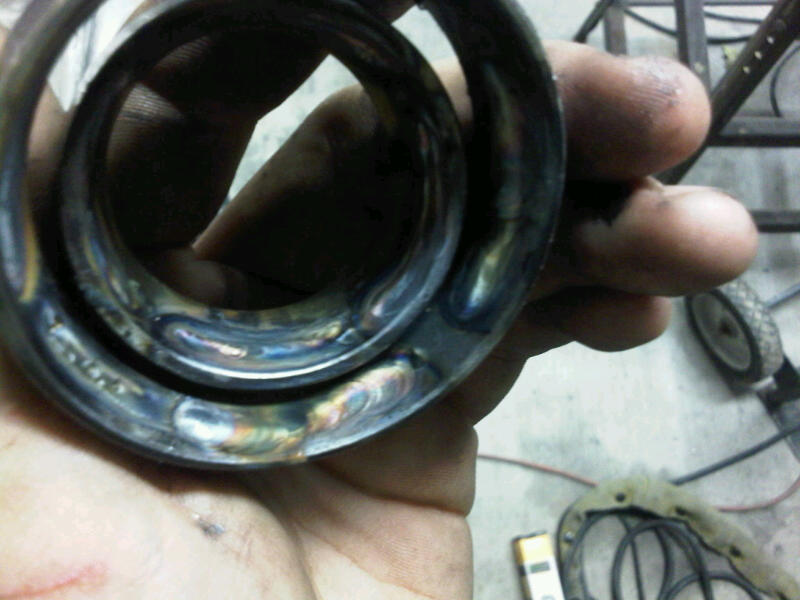

using the tig welder with a balled tungsten, welded a bead (without filler rod) 360 degrees around the bearing race...afterwards i slammed it on the table upside down and the bearing races fell out ( a few i had to barely tap out with a punch, but it moved about half way so i could EASILY get a punch in there...)
pic of what i did and pic of the after math! works like a charm and i suggest it to everyone with the tools to do so....1/16 tungsten @ 130amps moving pretty fast just to spread the heat around, wear mig gloves on both hands...have the hammer and punch ready
using the tig welder with a balled tungsten, welded a bead (without filler rod) 360 degrees around the bearing race...afterwards i slammed it on the table upside down and the bearing races fell out ( a few i had to barely tap out with a punch, but it moved about half way so i could EASILY get a punch in there...)
pic of what i did and pic of the after math! works like a charm and i suggest it to everyone with the tools to do so....1/16 tungsten @ 130amps moving pretty fast just to spread the heat around, wear mig gloves on both hands...have the hammer and punch ready
