Installed 8" touch screen in the visor!!

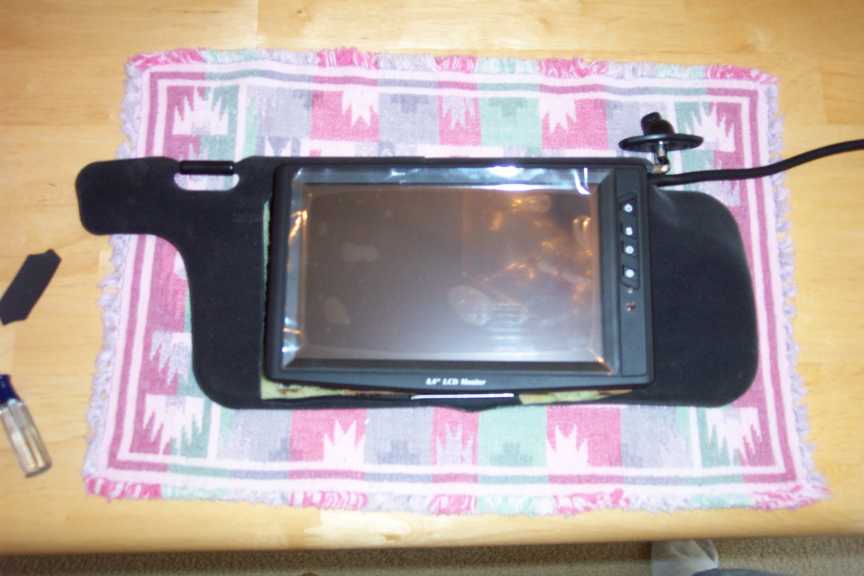

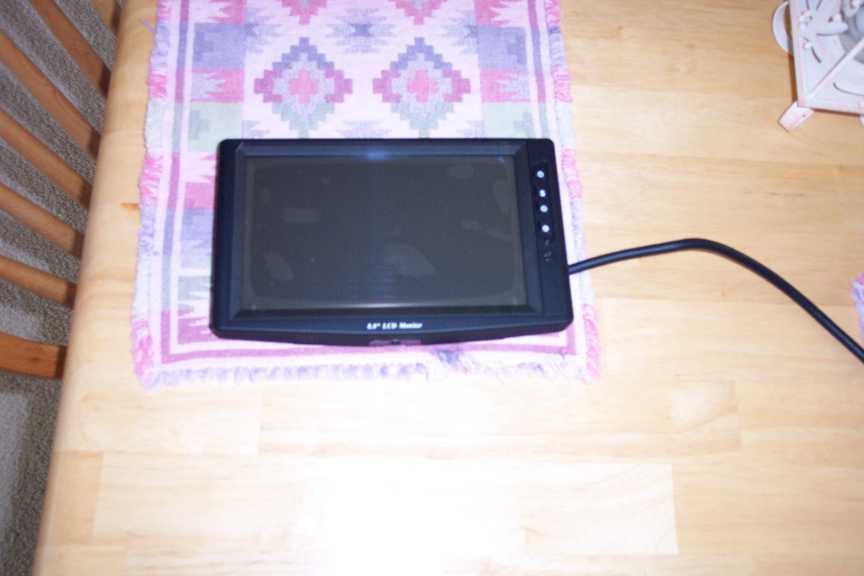

Well I decided to run the Aircon system and I needed a place to control it from so I searched forever to find this, it was at MP3 car, decent price nice specs and it fits well in the space.

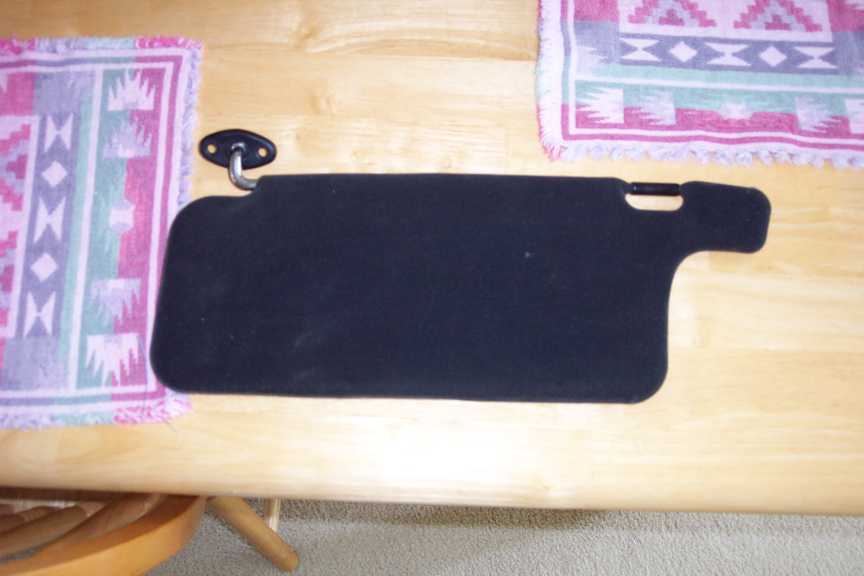

First I took pics of everything

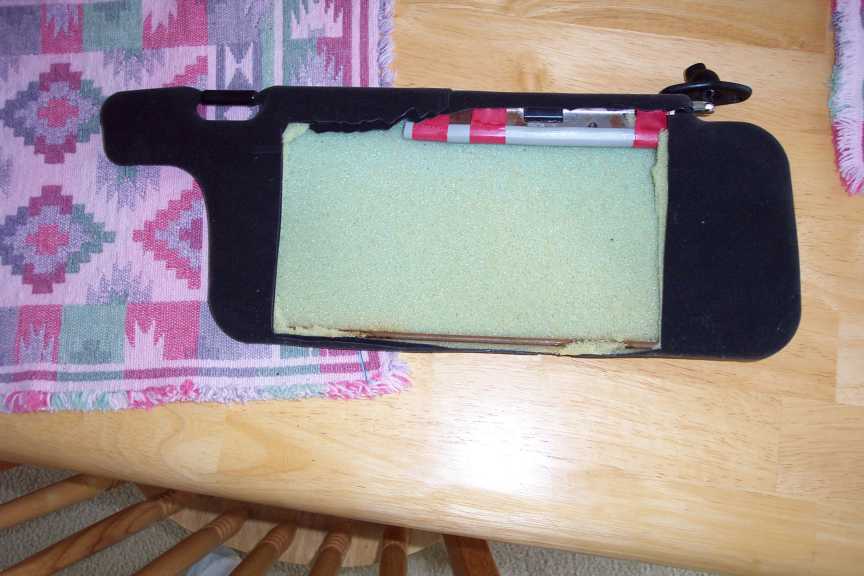

then cut into the visor

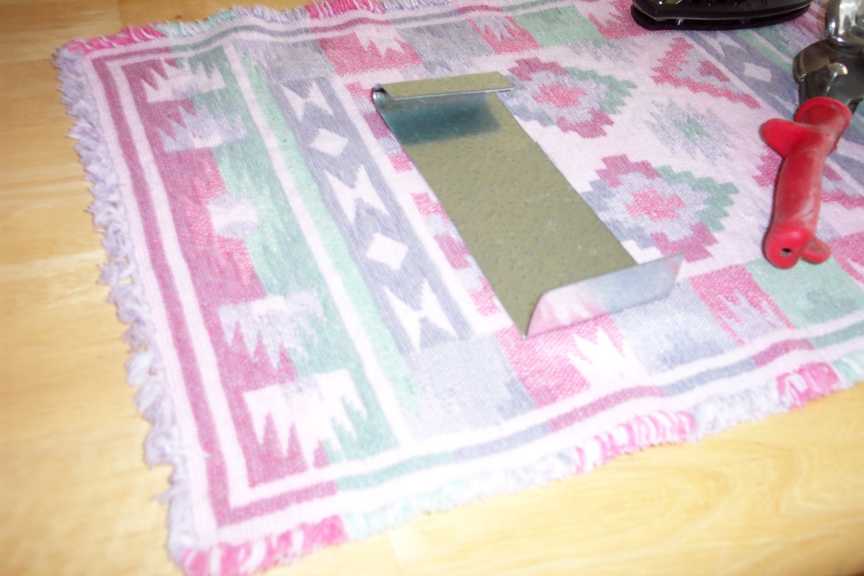

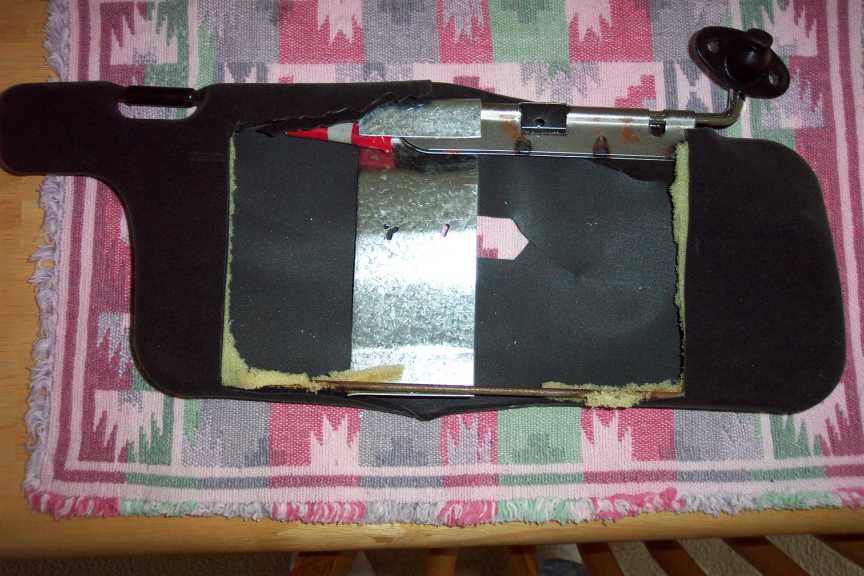

measured it up, cut and formed the bracket
measured for the mounting holes and drilled them out
went to ACE to get the mounting hardware that fit in the holes on the back and bottom of the monitor
Now it is off to upholstry to match the headliner.
First I took pics of everything
then cut into the visor
measured it up, cut and formed the bracket
measured for the mounting holes and drilled them out
went to ACE to get the mounting hardware that fit in the holes on the back and bottom of the monitor
Now it is off to upholstry to match the headliner.
#6
resU deretsigeR
iTrader: (3)
Join Date: Aug 2005
Location: Yep
Posts: 681
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by tinvestor
I have to work on the weight issue a little but it will be fine.
#7
Former Moderator. RIP Icemark.
Originally Posted by jkimbro
It'd be a small issue, just one that you may forget about until it keeps dropping down in front of your face when you hit a bump.
I used to have a small Alpine remote EQ control panel in there, that was 1/4 of the size of that panel, and it kept falling down all the time.
Gonna need a whole spring assembly to keep that bugger up.
And you sure hacked up the visor cloth... what's up with that????
Last edited by Icemark; 07-14-06 at 04:43 PM.
Trending Topics
#10
Rotary Enthusiast
Thread Starter
Join Date: May 2005
Location: bartlett IL
Posts: 919
Likes: 0
Received 0 Likes
on
0 Posts
want to register my completely illegal car in AZ at your adress?
I need the tint and to be able to tell the cops that "its legal in AZ"
By the way love the targa did you do it?
Alright third and final edit. You drop off the car and your checkbook and I will have her done in a couple years
I need the tint and to be able to tell the cops that "its legal in AZ"
By the way love the targa did you do it?
Alright third and final edit. You drop off the car and your checkbook and I will have her done in a couple years
Last edited by tinvestor; 07-14-06 at 05:06 PM.
#11
Rotary Enthusiast
Thread Starter
Join Date: May 2005
Location: bartlett IL
Posts: 919
Likes: 0
Received 0 Likes
on
0 Posts
OK here is the "floppy sunvisor" fix.
This will work on any floppy sunvisor however the upholstry will need reworking.
To do this you will need a bolt and a nylon nut or a regular nut and a nylon lock washer use 10/24 or slightly smaller
you will also need a drill and a bit of apropriate size according to the bolt size you choose

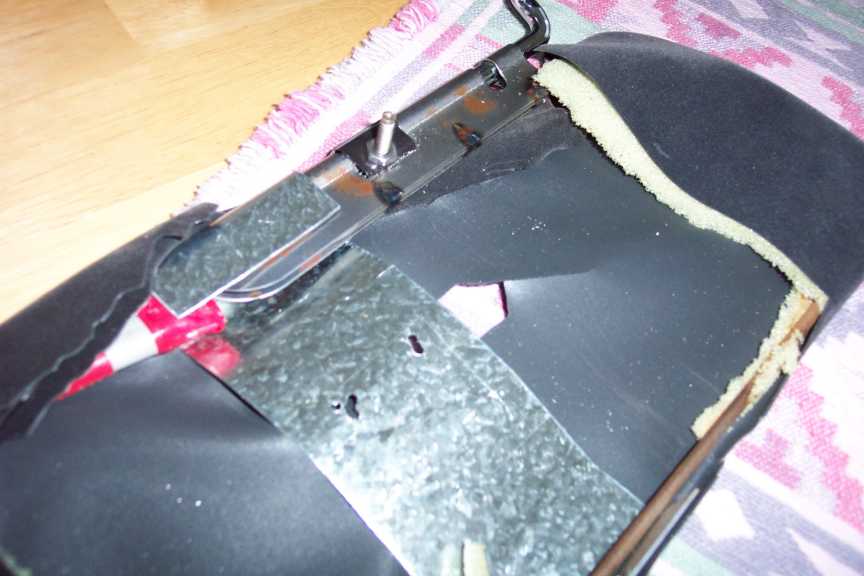

after you uncover the framework you will see a black piece of spring steel wrapped around the upper part of the frame a little less than midway from the right. Shown in the first pic with the hole already drilled in it. after you find it and drill a hole near the bottom of it big enough to fit the chosen hardware, I used 10/24 but you can go smaller if you want but no bigger than that. I used a long bolt that I will trim down after I post. once you drill it and put the hardware on tighten the assembly to the desired stiffness. This is very sensitive a 1/4 from contact is almost too much you may also want to use locktite to keep it from getting lose.
