injector swap ?
Hey, i did a search on the topic and nothing really answered my question, anyways.
so i swapped an s5 turbo engine into an s4 car and my question is. when using the high imp s5 injectors with a n332 ecu, how would i go by making everything work out, bypassing the solenoid res package? keeping it? or what?
sorry if i sound n00b, im just a kid and im trying to do the swap by myself so i need as much help as i can get, thanks guys.
-mitch
so i swapped an s5 turbo engine into an s4 car and my question is. when using the high imp s5 injectors with a n332 ecu, how would i go by making everything work out, bypassing the solenoid res package? keeping it? or what?
sorry if i sound n00b, im just a kid and im trying to do the swap by myself so i need as much help as i can get, thanks guys.
-mitch
01-19-08, 03:35 PM
#5
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
The ECU has nothing to do with it. If you're using high-imp injectors with a harness that has a resistor pack, you need to bypass it. All FC ECU's must see a high-imp load.
01-19-08, 05:20 PM
#6
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

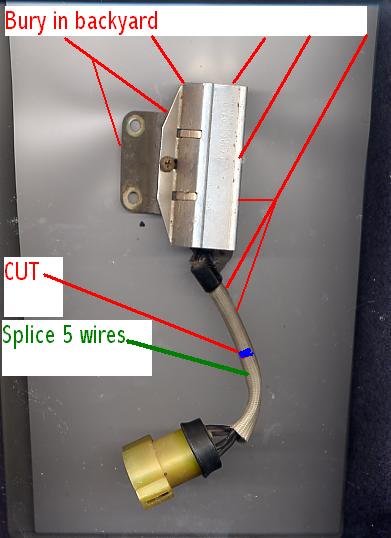

Pay no attention to the words on my jpg. Just look at the pack.
01-19-08, 05:22 PM
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
If you DO have that pack on your car, all you do is cut the wires (all five) about in the middle of that pigtail harness. Then solder or crimp ALL five together and cover with shrink tubing or whatever. Reinstall the round plug on the EM harness and your through. That is you through IF your new engine has high impedence injectors.
Trending Topics
01-21-08, 01:07 PM
#9
Senior Member
Join Date: Nov 2005
Location: Austin,TX
Posts: 268
Likes: 0
Received 0 Likes
on
0 Posts
I have an s4 n/a, and I am swapping a 13bt into my car. But I am retaining the n/a harness, what do i have to do to use high imp. injectors? also what makes high imp. injectors better?
