Identify this plug...

Thread Tools

Search this Thread

Old 10-31-08, 02:43 PM
  #1
7 UP URS!
Thread Starter

FC3S Drift's Avatar

Join Date: Apr 2002
Location: Where Florida begins.
Posts: 396
Likes: 0
Received 0 Likes on 0 Posts
Identify this plug...

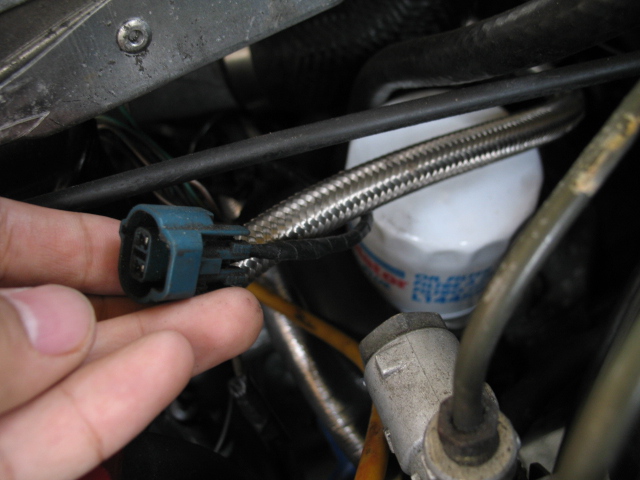

... please. its located under the stock intercooler on the TB side.
Attached Thumbnails Identify this plug...-picture.jpg
FC3S Drift is offline
Reply Like
Old 10-31-08, 02:45 PM
  #2
rotary tech
iTrader: (9)

fcforlife's Avatar

Join Date: Jan 2007
Location: tracy/stockton ca
Posts: 795
Likes: 0
Received 0 Likes on 0 Posts
looks like the bacv plug some infor on your car would be nice s4 or s5 t2 or na
fcforlife is offline
Reply Like
Old 10-31-08, 02:48 PM
  #3
Senior Member

jmkogut's Avatar

Join Date: Aug 2008
Location: Washington
Posts: 409
Likes: 0
Received 0 Likes on 0 Posts
It's a TII. That photograph makes it look odd though.
jmkogut is offline
Reply Like
Old 10-31-08, 02:49 PM
  #4
7 UP URS!
Thread Starter

FC3S Drift's Avatar

Join Date: Apr 2002
Location: Where Florida begins.
Posts: 396
Likes: 0
Received 0 Likes on 0 Posts
bah, sorry, its a S5 TII with a rebuilt JDM motor.
FC3S Drift is offline
Reply Like
Old 10-31-08, 02:59 PM
  #5
rotary tech
iTrader: (9)

fcforlife's Avatar

Join Date: Jan 2007
Location: tracy/stockton ca
Posts: 795
Likes: 0
Received 0 Likes on 0 Posts
which harness is it on? the main harness or the cas positive bat cable? i have a plug that looks like that but is white and it connects under my trailing coil pack. the coil pack has two plug ins a four wire then a smaller one that looks like that. mines white so im not 100 percent sure.
fcforlife is offline
Reply Like
Old 11-02-08, 12:31 PM
  #6
Rotary Enthusiast

iTrader: (2)

Furb's Avatar

Join Date: May 2005
Location: E-L Netherlands
Posts: 1,165
Likes: 0
Received 0 Likes on 0 Posts
i believe it is for the duty solonoid...
Furb is offline
Reply Like
Old 11-02-08, 12:38 PM
  #7
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
No wire colors= no answer, just WAGS
HAILERS is offline
Reply Like

Trending Topics

Old 11-02-08, 01:08 PM
  #8
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes on 1,848 Posts
looks like the boost control solenoid connector. only one thats blue
j9fd3s is offline
Reply Like
Old 11-03-08, 02:11 PM
  #9
Rotary Enthusiast

iTrader: (2)

Furb's Avatar

Join Date: May 2005
Location: E-L Netherlands
Posts: 1,165
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by j9fd3s
looks like the boost control solenoid connector. only one thats blue

that's what i said
the FSM refers to it as duty solenoid
Furb is offline
Reply Like
Old 11-03-08, 03:26 PM
  #10
My girl

iTrader: (3)

Houstonderk's Avatar

Join Date: Apr 2004
Location: Andrews AFB, MD
Posts: 2,173
Likes: 0
Received 2 Likes on 2 Posts
Is it just one wire? And color of wire would help to.
