IC project complete *PICS*
06-09-05, 08:09 PM
#4
Senior Member
Thread Starter
Join Date: May 2003
Location: In a house
Posts: 520
Likes: 0
Received 0 Likes
on
0 Posts
-ebay 24x12x3 core | 3in id/od
-2.5in butt welded/mandrel bent aluminum tubing
-silicone couplers/reducers
-higgi tb adapter
-custom steel mounting brackets
-ss regular hose clamps
-welded nipple for bac valve and some other idle valve
-bov will be welded later, i think on the turbo side
-waiting on shorter air filter, will only make hard pipe if i go EMS
-have to cut a few mm's out of the lower headlight frame
-will have upper radiator panel made
-same with lower ducting
-oil filter is accessible
-spark plugs will be removed from under the car now
-everything is a very tight fit, don't know how engine vibration will affect it yet ...will adjust rb engine brace to be stiffer
-car was damaged by previous owner, noticable by the black primered areas that started to show rust
-battery in the passenger bin
-relocated pcv valve slightly
-tb cable is ziptied in
that's it for now ...don't ask about cost :cry: ...it is a rewarding experience to make something work from scratch
only problems were two vacuum leaks that i fixed immediately and kicked myself in the shin for making
-2.5in butt welded/mandrel bent aluminum tubing
-silicone couplers/reducers
-higgi tb adapter
-custom steel mounting brackets
-ss regular hose clamps
-welded nipple for bac valve and some other idle valve
-bov will be welded later, i think on the turbo side
-waiting on shorter air filter, will only make hard pipe if i go EMS
-have to cut a few mm's out of the lower headlight frame
-will have upper radiator panel made
-same with lower ducting
-oil filter is accessible
-spark plugs will be removed from under the car now
-everything is a very tight fit, don't know how engine vibration will affect it yet ...will adjust rb engine brace to be stiffer
-car was damaged by previous owner, noticable by the black primered areas that started to show rust
-battery in the passenger bin
-relocated pcv valve slightly
-tb cable is ziptied in
that's it for now ...don't ask about cost :cry: ...it is a rewarding experience to make something work from scratch
only problems were two vacuum leaks that i fixed immediately and kicked myself in the shin for making
Last edited by SidewaysFC; 06-09-05 at 08:15 PM.
06-09-05, 08:17 PM
#6
Senior Member
Thread Starter
Join Date: May 2003
Location: In a house
Posts: 520
Likes: 0
Received 0 Likes
on
0 Posts
bumper will need minor cutting on lower half of opening, though i may cut upwards for more surface area for the air. i did the best i could at pushing it back without it hitting anything and blocking flow.
if anyone knows of a bumper that has better backspacing for a fmic like this please let me know.
if anyone knows of a bumper that has better backspacing for a fmic like this please let me know.
06-09-05, 08:20 PM
#7
Open up! Search Warrant!
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts
I got that same "ebay special" IC coming in the mail. I didn't take my bumper off yet but it looks like there is more room in there then I was thinking. Looks good man. For the BOV they have these for Greddy and HKS. I got one like this for my Type R BOV.
Trending Topics
06-09-05, 08:52 PM
#9
Senior Member
Thread Starter
Join Date: May 2003
Location: In a house
Posts: 520
Likes: 0
Received 0 Likes
on
0 Posts
Thanks!
Welds were done by 2 different shops, 1 over charged me, the other didn't match the ID's up too well but was cheaper ...go figure lol.
All the segments were cut once, with minor edge trimming for the other pipes to line up ...I used up 3 u-bends completely and maybe 4 feet of straight pipe.
Welds were done by 2 different shops, 1 over charged me, the other didn't match the ID's up too well but was cheaper ...go figure lol.
All the segments were cut once, with minor edge trimming for the other pipes to line up ...I used up 3 u-bends completely and maybe 4 feet of straight pipe.
06-09-05, 11:50 PM
#12
A girl smoking rice boys
Join Date: May 2005
Location: Panama City, FL
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts

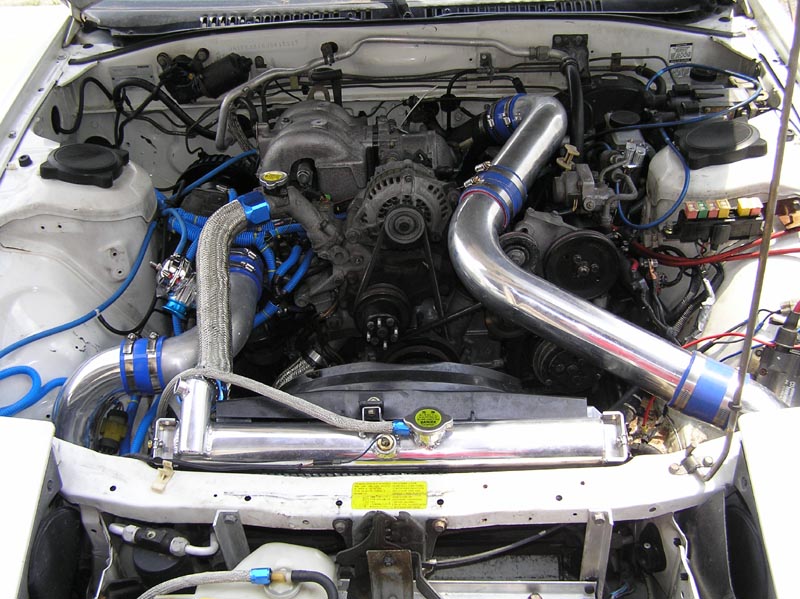

Mine. Total cost $195.00
Work was done by iceblue. We used a set of six 90o mandrel bent aluminum and 2 U bends. Two 2in to 3in adaptors were made at local exhaust shop. High temp silicon hose, 2ft 3in.
How did yours favor in price?
My pipe - https://www.rx7club.com/attachment.p...hmentid=112538
Work was done by iceblue. We used a set of six 90o mandrel bent aluminum and 2 U bends. Two 2in to 3in adaptors were made at local exhaust shop. High temp silicon hose, 2ft 3in.
How did yours favor in price?
My pipe - https://www.rx7club.com/attachment.p...hmentid=112538
Last edited by baby doll; 06-09-05 at 11:52 PM.
06-10-05, 09:38 AM
#13
Senior Member
Thread Starter
Join Date: May 2003
Location: In a house
Posts: 520
Likes: 0
Received 0 Likes
on
0 Posts
I SAID NOT TO ASK ABOUT PRICE!!!!!! jk...
eh ...same as Greddy kit +/- depending on where you look. I have seen the kit go for $735
for imagination purposes though:
$200 core
$200 piping ...includes the bitch place that charged me $30 for no reason
$100 silicone and clamps
then theres welding, the bracket, little paint, battery relocation, etc.
like i said, if you love your works of arts, your creations or the result of building your own **** ...then this is the route to take.
btw - Greddy doesn't compare to me
eh ...same as Greddy kit +/- depending on where you look. I have seen the kit go for $735
for imagination purposes though:
$200 core
$200 piping ...includes the bitch place that charged me $30 for no reason
$100 silicone and clamps
then theres welding, the bracket, little paint, battery relocation, etc.
like i said, if you love your works of arts, your creations or the result of building your own **** ...then this is the route to take.
btw - Greddy doesn't compare to me
Last edited by SidewaysFC; 06-10-05 at 09:40 AM.
06-10-05, 10:08 AM
#15
87 T2
Join Date: Jun 2002
Location: florida
Posts: 924
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by baby doll
Mine. Total cost $195.00
Work was done by iceblue. We used a set of six 90o mandrel bent aluminum and 2 U bends. Two 2in to 3in adaptors were made at local exhaust shop. High temp silicon hose, 2ft 3in.
How did yours favor in price?
My pipe - https://www.rx7club.com/attachment.p...hmentid=112538
Work was done by iceblue. We used a set of six 90o mandrel bent aluminum and 2 U bends. Two 2in to 3in adaptors were made at local exhaust shop. High temp silicon hose, 2ft 3in.
How did yours favor in price?
My pipe - https://www.rx7club.com/attachment.p...hmentid=112538
06-10-05, 10:18 AM
#16
Haven't we ALL heard this
Wow! Great job man!
I understand what you are saying about doing it your self and the satisfaction that comes from that. You might not have saved any money doing it your self....but by the way it looks you could lie and tell people it is a kit...and they would not know it
James
I understand what you are saying about doing it your self and the satisfaction that comes from that. You might not have saved any money doing it your self....but by the way it looks you could lie and tell people it is a kit...and they would not know it
James
06-10-05, 12:53 PM
#18
Senior Member
Thread Starter
Join Date: May 2003
Location: In a house
Posts: 520
Likes: 0
Received 0 Likes
on
0 Posts
I couldn't possibly use silicone on the welds near the bends. Though I could have used 45* silicone bends ...but then a weld is much cheaper and cleaner.
Thanks James. I painted the pipes black so my engine bay looked more OEM-like.
Yeah. I probably could have gotten more performance from an EMS system, but this mod let me have less downtime. Plus, it's actual visual proof that I get what I paid for. I would never know that I had an EMS by looking at the car ...so I guess that justifies it better.
Thanks James. I painted the pipes black so my engine bay looked more OEM-like.
Yeah. I probably could have gotten more performance from an EMS system, but this mod let me have less downtime. Plus, it's actual visual proof that I get what I paid for. I would never know that I had an EMS by looking at the car ...so I guess that justifies it better.
06-10-05, 01:25 PM
#19
Full Member
Join Date: May 2005
Location: da souf
Posts: 147
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by hondahater
very nice! But why would you weld anything? Couldn't you just cut the pieces you want and use sylicone couplers and tbolt clamps?
edit: nevermind if you did that you would have pretty much one big coupler
edit: nevermind if you did that you would have pretty much one big coupler
06-10-05, 02:46 PM
#20
i am legendary
Join Date: Sep 2003
Location: Kirkland, WA
Posts: 8,478
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by baby doll
Mine. Total cost $195.00
Work was done by iceblue. We used a set of six 90o mandrel bent aluminum and 2 U bends. Two 2in to 3in adaptors were made at local exhaust shop. High temp silicon hose, 2ft 3in.
How did yours favor in price?
My pipe - https://www.rx7club.com/attachment.p...hmentid=112538
Work was done by iceblue. We used a set of six 90o mandrel bent aluminum and 2 U bends. Two 2in to 3in adaptors were made at local exhaust shop. High temp silicon hose, 2ft 3in.
How did yours favor in price?
My pipe - https://www.rx7club.com/attachment.p...hmentid=112538
Last edited by ddub; 06-10-05 at 02:48 PM.
06-12-05, 03:19 PM
#24
Senior Member
Thread Starter
Join Date: May 2003
Location: In a house
Posts: 520
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by snub disphenoid
the S5 bumper...
How cheap?
06-21-05, 03:07 AM
#25
Passing life by
Originally Posted by dDuB
Is this car both yours and iceblue's or something? Because that's the same picture he posted before of his project.
Oh yea I blew the budget through the roof and had to cut minor corners in the end. Like not fix sun roof, temp non proper battery relocation, no radio, Gehto exhaust, things like that.
