how to wire jdm ftp's and s5 fog lights to a switch in a s4
#1
how to wire jdm ftp's and s5 fog lights to a switch in a s4

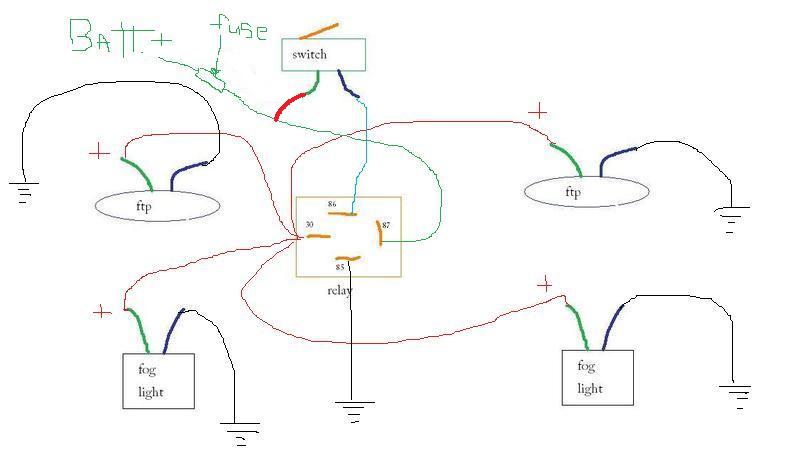

I know this is probably a simple question but i would like if someone could give me some input on how this would all work. I would basically like to have the s5 fog lights and jdm ftp's wired into the stock fog light switch. I have attached a simple diagram and would appreciate it if someone could connect the wires for me. I think i know what needs to be done but would like a 2nd opinion.
#2
Winter Rotary
iTrader: (5)
On my car, the previous owner tapped into the secondary light harness up under the dash before it gets to the switch itself. A single wire runs from the harness to the lights up front, which are grounded to the chassis. When the parking lights are on, so are the fogs, but they go off once the headlights pop up.
#3
On my car, the previous owner tapped into the secondary light harness up under the dash before it gets to the switch itself. A single wire runs from the harness to the lights up front, which are grounded to the chassis. When the parking lights are on, so are the fogs, but they go off once the headlights pop up.
#5
NASA geek
iTrader: (2)
Make sure to use sufficeint wire gauges for power to the relay and to the fogs/FTP and use simular ground size (like 12 AWG.). The switch wire can be smaller in Gauge (like 22 AWG.). Make sure the relay is rated for the amount of current you'll be drawing from it, add both fogs and FTP's for total wattage/current draw and make sure your relay is rated HIGHER.
http://www.lunghd.com/Tech_Articles/...ay_diagram.JPG
~Mike..............
http://www.lunghd.com/Tech_Articles/...ay_diagram.JPG
~Mike..............
#6
thanks a lot mike. i can ground the lights to the chassis right? i dont have to run it all the way back to the battery (relocated)? same with the relay? now to figure out how many amps these lights will pull..i cant imagine it's very much.
can i run the power wire like this so i dont have 2 wires going to the battery? or should it be on the other side of the fuse?
can i run the power wire like this so i dont have 2 wires going to the battery? or should it be on the other side of the fuse?
Last edited by 87 t-66; 09-17-08 at 02:12 PM.
#7
NASA geek
iTrader: (2)
Ground is ground. You can ground the lights and relay anywere so as along as it makes good contact with the chassis all seperate or join them all at a common spot. Use the same size ground wires as you do + supply wires. Your switch power can come from anywere so long as its a + 12V source. i'd leave the + wire from your batt and fuse solid straight to your relay and not splice into it. What is the wattage of all the bulbs your using? I assume the fogs are H3 bulbs which are typically 55 Watters..... whats in the FTP lenses?
~Mike...............
~Mike...............
Trending Topics
#8
NASA geek
iTrader: (2)
Converting Watts to Amps:
The conversion of Watts to Amps is governed by the equation, Amps = Watts/Volts
For example 12 watts/12 volts = 1 amp
Lets assume all 4 bulbs are 55 watters.
55 X 4= 220 Watts
220watts/12v= 18.3 Amps.
So you'd use a 30 Amp relay and 25 amp fuse and you'll be fine.
~Mike..............
The conversion of Watts to Amps is governed by the equation, Amps = Watts/Volts
For example 12 watts/12 volts = 1 amp
Lets assume all 4 bulbs are 55 watters.
55 X 4= 220 Watts
220watts/12v= 18.3 Amps.
So you'd use a 30 Amp relay and 25 amp fuse and you'll be fine.
~Mike..............
#9
Converting Watts to Amps:
The conversion of Watts to Amps is governed by the equation, Amps = Watts/Volts
For example 12 watts/12 volts = 1 amp
Lets assume all 4 bulbs are 55 watters.
55 X 4= 220 Watts
220watts/12v= 18.3 Amps.
So you'd use a 30 Amp relay and 25 amp fuse and you'll be fine.
~Mike..............
The conversion of Watts to Amps is governed by the equation, Amps = Watts/Volts
For example 12 watts/12 volts = 1 amp
Lets assume all 4 bulbs are 55 watters.
55 X 4= 220 Watts
220watts/12v= 18.3 Amps.
So you'd use a 30 Amp relay and 25 amp fuse and you'll be fine.
~Mike..............
#11
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
where the switch is located is a bit confusing...Adam..see if this diagram is any good.In this thread here..What you would do it parallel the circuits and put it to a switch(instead of high and low). https://www.rx7club.com/showthread.p...hts+on+a+relay
#12
where the switch is located is a bit confusing...Adam..see if this diagram is any good.In this thread here..What you would do it parallel the circuits and put it to a switch(instead of high and low). https://www.rx7club.com/showthread.p...hts+on+a+relay

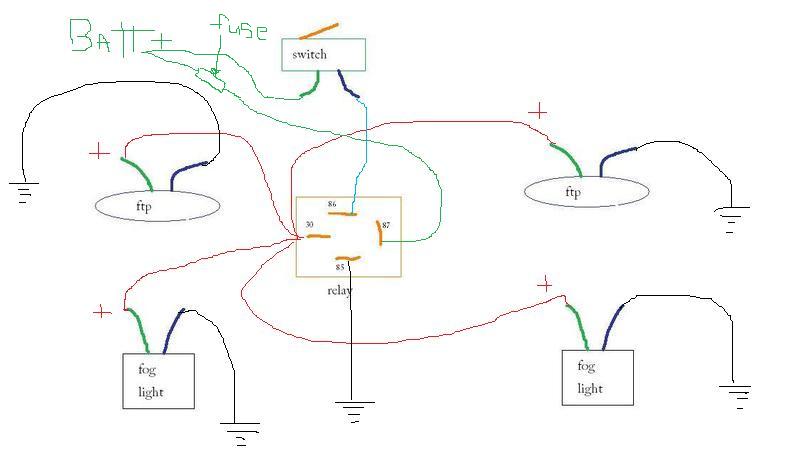

i am trying to use the stock fog light switch in the center console. i want it to be independent of the stock lighting system. the link you posted makes the diagram above look correct. time to get out the multimeter i guess.
Last edited by 87 t-66; 09-20-08 at 04:55 PM.
#13
NASA geek
iTrader: (2)
I work at NASA and wire AIRCRAFT for a living amoungst other stuff (mechanical, aero, and machinest). Yes, this little diagram is correct, double check your stuff, good luck.
~Mike.............
EDIT: If you ground one side of the switch all you'd do is create a straight up SHORT and blow what ever source you pulled your 12v source from. Its a simple switch, all your doing is turning on or off a 12+ Volt source, the relay has a ground thus completing the circut when the switch is "switched".
~Mike.............
EDIT: If you ground one side of the switch all you'd do is create a straight up SHORT and blow what ever source you pulled your 12v source from. Its a simple switch, all your doing is turning on or off a 12+ Volt source, the relay has a ground thus completing the circut when the switch is "switched".
Last edited by RacerXtreme7; 09-20-08 at 10:58 PM.
#14
NASA geek
iTrader: (2)
I work at NASA and wire AIRCRAFT for a living amongst other stuff (mechanical, aero, and machinist). Yes, this little diagram is correct, double check your stuff, good luck.
~Mike.............
EDIT: If you ground one side of the switch all you'd do is create a straight up SHORT and blow what ever source you pulled your 12v source from. Its a simple switch, all your doing is turning on or off a 12+ Volt source, the relay has a ground thus completing the circuit when the switch is "switched".
oops, double posted after I edited my great grammar and spelling lol
~Mike.............
EDIT: If you ground one side of the switch all you'd do is create a straight up SHORT and blow what ever source you pulled your 12v source from. Its a simple switch, all your doing is turning on or off a 12+ Volt source, the relay has a ground thus completing the circuit when the switch is "switched".
oops, double posted after I edited my great grammar and spelling lol
