How-to DIY RPM switch for 6th ports or VDI

For all you electronic tinkerers, I’m posting a circuit diagram for an adjustable rpm switch. It’s something you can use to activate solenoids for auxiliary ports, VDI, shift light, or anything else you can think of. The circuit is adapted from a rev-limiter circuit for rotaries.In particular, I’d like to thank Rob Weinstock from the fc3s.org list for his help tweaking it. I built and installed two of these switches in June when I did a VDI swap, and so far they’ve been working fine. Parts cost per switch is only about $10 CAD! Note my installed photo, I’ve mounted them away from heat, as I don’t know how that might affect the components. Also, not shown in the circuit layout, I added LED indicators for power, and the ‘switched on’ state.
One other note – I had been looking at the S5 FSM, and noted that the aux. ports and VDI only operate under load. I have a GXL, which came with auto-adjusting suspension. Part of that system is a switch on the accelerator pedal, which sends a 12V signal to the AAS computer above about half throttle. To approximate the ‘under load’ effect, I took the 12V power for the rpm switches from this switch, so they only operate when I ‘floor it’. Just something you might want to try if you’re doing the VDI swap or changing your aux. ports to electronic activation.

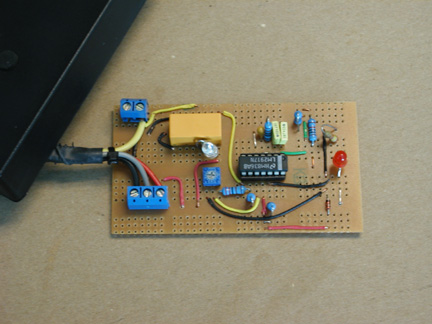

Attached Thumbnails How-to DIY RPM switch for 6th ports or VDI-rpm-switch-board-layout.jpg
Reply
Old Oct 17, 2003 | 12:14 PM
  #2
slvr7's Avatar
Thread Starter
Full Member
Tenured Member 05 Years
iTrader: (1)

Joined: Nov 2001
Posts: 222
Likes: 0
From: Toronto ON

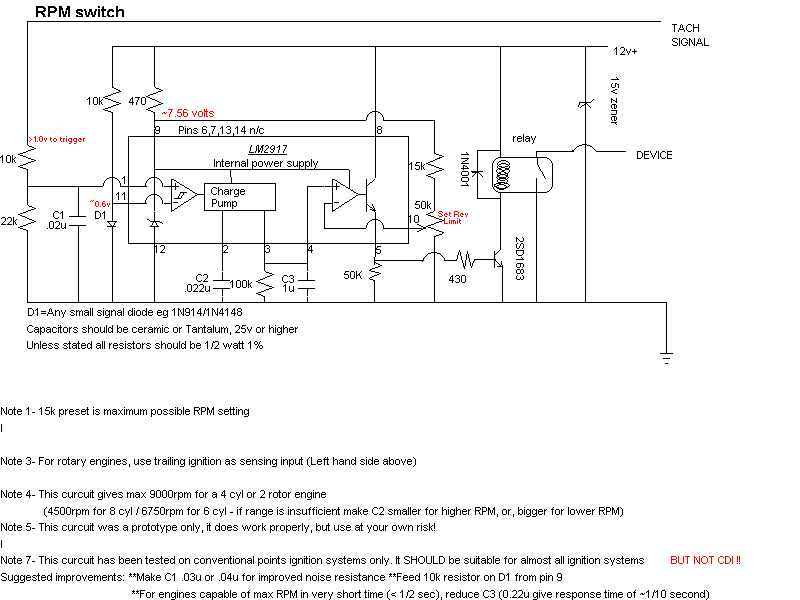

circuit schematic:
Attached Thumbnails How-to DIY RPM switch for 6th ports or VDI-rpm-switch-circuit-v3.gif
Reply
Old Oct 17, 2003 | 01:34 PM
  #3
slvr7's Avatar
Thread Starter
Full Member
Tenured Member 05 Years
iTrader: (1)

Joined: Nov 2001
Posts: 222
Likes: 0
From: Toronto ON

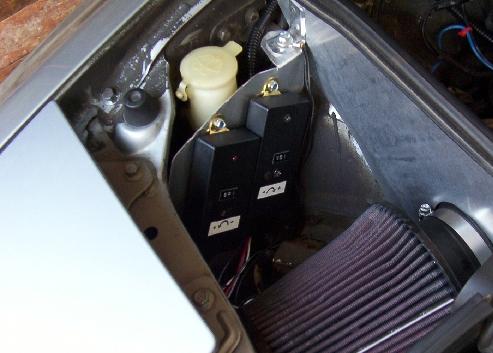

installed switches:
Attached Thumbnails How-to DIY RPM switch for 6th ports or VDI-cone-intake-rpm-switches-3.jpg
Reply
Old Oct 17, 2003 | 01:39 PM
  #4
Liquid Anarchy's Avatar
We come with the Hardcore
Tenured Member 10 Years
iTrader: (2)

Joined: Nov 2001
Posts: 2,456
Likes: 0
From: Springfield, MO
Great Work! I wish this would've came along a while ago when I was looking around for them... $50-70 a pop my ***!
Reply
Old Oct 17, 2003 | 05:21 PM
  #5
Amur_'s Avatar
Refined Valley Dude
Tenured Member 05 Years

Joined: Oct 2001
Posts: 2,283
Likes: 2
From: Kitchener, Ontario (Hamilton's armpit)
Archive! Archive! Archive!
Reply
Old Oct 17, 2003 | 06:23 PM
  #6
BlackIceGuitar's Avatar
Senior Member
Tenured Member 10 Years

Joined: Apr 2003
Posts: 274
Likes: 0
From: Zeeland/Holland ,Michigan
Thumbs up

Nice work
Reply
Old Oct 20, 2003 | 11:06 AM
  #7
Icemark's Avatar
Former Moderator. RIP Icemark.

Joined: Apr 2001
Posts: 25,896
Likes: 24
From: Rohnert Park CA
So which LM2917 are you using???

Your diagram/Circuit design calls for just a LM2917, but it looks like a LM2917N in your pictures.
and if so, is there any reason that you are not using the LM2917N-8 instead of the 14 pin

Reply
Old Oct 20, 2003 | 12:40 PM
  #8
nillahcaz's Avatar
you are missed
Tenured Member: 20 Years
iTrader: (2)

Joined: Dec 2001
Posts: 987
Likes: 1
From: St. Louis
its the lm2917m or n
Reply
Old Oct 21, 2003 | 11:25 AM
  #9
slvr7's Avatar
Thread Starter
Full Member
Tenured Member 05 Years
iTrader: (1)

Joined: Nov 2001
Posts: 222
Likes: 0
From: Toronto ON
I used the 14 pin as per the diagram, left the unused pins 'n/c' (not connected). I can't say if substituting the 8 pin is acceptable, but the 14 pin is only a couple bucks anyway. I'm not presenting myself as an EE, I adapted an existing circuit design into a workable alternate design. Refinements welcomed!!!

Curtis
'86 GXL autox'r
Reply
Old Aug 15, 2005 | 09:53 PM
  #10
Trueblue707's Avatar
Depth is more dangerous!
Tenured Member 05 Years

Joined: May 2005
Posts: 35
Likes: 0
From: Somewhere in Southeast U.S.A
The pics aren't there.
Reply
Old Aug 15, 2005 | 10:40 PM
  #11
HAILERS's Avatar
HAILERS
Tenured Member 10 Years

Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
Originally Posted by Trueblue707
The pics aren't there.
The pictures fade after a couple of years after the initial posting.
Reply
Old Nov 3, 2005 | 04:05 AM
  #12
Euge's Avatar
Junior Member
Tenured Member 05 Years

Joined: May 2005
Posts: 44
Likes: 0
From: Birmingham, England
Why do these things dissapear as you need them

anyone got links to the old diagrams or know where they have dissapeared too?
Reply
Old Nov 3, 2005 | 05:27 PM
  #13
Amur_'s Avatar
Refined Valley Dude
Tenured Member 05 Years

Joined: Oct 2001
Posts: 2,283
Likes: 2
From: Kitchener, Ontario (Hamilton's armpit)
Chopmasta to teh rescue!





Reply
Old Nov 3, 2005 | 09:29 PM
  #14
eyeoutthere's Avatar
Senior Member
Tenured Member: 20 Years

Joined: Nov 2002
Posts: 380
Likes: 1
From: Owego NY
and just for backup...
Attached Thumbnails How-to DIY RPM switch for 6th ports or VDI-d99f69e881.gif
Reply
Old Nov 3, 2005 | 11:50 PM
  #15
uRizen's Avatar
XBL** Ownicus
Tenured Member 15 Years
iTrader: (2)

Joined: Mar 2004
Posts: 1,529
Likes: 0
From: St. Paul, Minnnesota
I wish I knew how to build things off of those cool little diagrams. Time to learn, eh?
