Hey Guys,

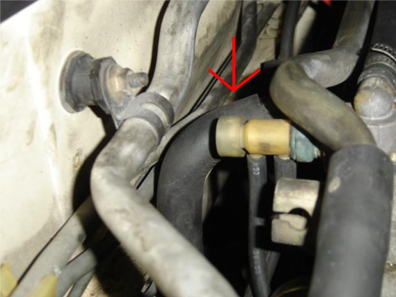

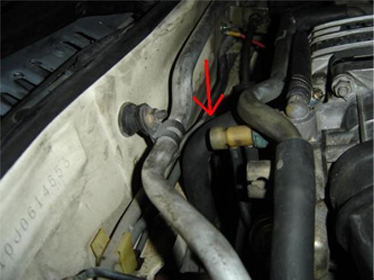

Could you guys please identify this hose and tell me where it leads to. Also does coolant flow through it and with a big enough crack will it cause my car to get hot fast, my car has been losing coolant and the guy that checked it out said it had a huge crack towards the base of it and I was losing alot of coolant through it. I have a racing event on saturday and I want this replaced before that. Thanks alot

-Andrew



Yes, coolant flows from the rear housing to the throttle body through that hose. Might need to pull the intake assy off to change it, unless you've got REALLY small hands...Mazdatrix has 'em, if you're looking for a new one...



Or you could man up and do the throttle body mod and ditch that



Ok guys, I tried taking off the hose today, no luck whatsoever. Tommorow I shall try again, If I can get some detailed help or semi-detailed help on how to get the lower hose off I would greatly appreciate it, I'll paypal you like 10 bucks or something If i can get the car done by tommorow.

-Andrew



Use pliers and grab and twist. Also try using a small flathead and use it to pry it off. I thought it was easier to take it off the TB first and then stick an old spark plug in the hose to stop the coolant from going everywhere so you dont have to drain your coolant if you havent already.



Yeh, this one's the "bitch" among the hoses. If you've got a new one, just cut the old one at the nipples with a razor blade, lengthwise from the end (gently) to free the hose end up from 16 years of gunk...



Hey guys is this is, quick response please, this is the part number 13-680A-N326

heres the site: http://www.mazdatrix.com/bhose2.htm Its towards the middle.

-Andrew



yup that's it
