HELP QUICK! 89 GTU Stuck in reverse!!
01-12-06, 03:53 PM
#1
Rotor7ven
Thread Starter
Join Date: Jun 2005
Location: kissimmee, fl
Posts: 338
Likes: 0
Received 0 Likes
on
0 Posts
HELP QUICK! 89 GTU Stuck in reverse!!
Is there a way to get my tranny outta reverse gear? At a stop light my car was stuck in reverse. Need help! Thanks!
01-12-06, 05:35 PM
#6
Rotary Enthusiast
Join Date: Mar 2004
Location: St Louis
Posts: 1,473
Likes: 0
Received 0 Likes
on
0 Posts
Get the shifter off first. I suspect wasted bushings. I wonder if the roll pin that holds the shifter broke and allowed the shift rod to engage into the 5/R linkage?
01-13-06, 01:48 AM
#7
Rotor7ven
Thread Starter
Join Date: Jun 2005
Location: kissimmee, fl
Posts: 338
Likes: 0
Received 0 Likes
on
0 Posts
well do u guys kno wut i have to do and fix it??? i think i have to take out the shifter cuz that lil pin is broke =/. but if is not then wut?? i need new tranny??
Trending Topics
01-13-06, 01:56 AM
#8
search around, worn out shifter bushings can eventually cause the shifter to completely come out of the shifter bore, the shifter flopping around in there can force the transmission into any single gear and in turn not be able to pull it out of that gear.
do as said, pull the shifter off, it isn't difficult, not even difficult for me to need to explain how to remove it as it is that self explanatory.
do as said, pull the shifter off, it isn't difficult, not even difficult for me to need to explain how to remove it as it is that self explanatory.
01-13-06, 02:04 AM
#9
Rotor7ven
Thread Starter
Join Date: Jun 2005
Location: kissimmee, fl
Posts: 338
Likes: 0
Received 0 Likes
on
0 Posts
i kno i done b4. im just sayin cuz if i have to pull tranny down i wanna wake up early in the morning. but yea i think its that lil u thing inside. and my shiffter is very sloppy i can pull it up and down..
01-13-06, 09:15 AM
#11
Rx-hippie
iTrader: (1)
Join Date: Sep 2003
Location: Torrance CA
Posts: 2,076
Likes: 0
Received 0 Likes
on
0 Posts
Does it still go into the gears.. 1st. 2nd, 3rd, etc but just move in reverse... or does it not go into the gears at all.. shifter won't go to 1st gear postion? As if you hit a wall?
01-13-06, 10:29 AM
#12
Reverse switch is stuck, I've dealt with this on my S5 N/a a couple of times(wierd my two S4s never did that ****)
Remove the tranny cross member and lower the tranny, supporting it with a floor jack.
Unscrew the electronic switch that goes into the tranny and then you will have yo use a small tool to un-jam it from the reverse position. I normally use small/medium hex/alen keys using the short side to probe into the port and the long side as a handle.
Once you are able to free it up it should shift fine. Replace the cross member and you're done.
Some suggested modifications to eliminate future problems is to add an additional washer shim. I used a little gear oil to add some lubrication in an attempt to make it harder for it to jam-up. I couldn't find a washer/shim otherwise I would have used that.
Good Luck,
Santiago
PS- This should normally take around 2 hours if you know what you're doing otherwise it might take around 3-4 if you're a little newbish....
Remove the tranny cross member and lower the tranny, supporting it with a floor jack.
Unscrew the electronic switch that goes into the tranny and then you will have yo use a small tool to un-jam it from the reverse position. I normally use small/medium hex/alen keys using the short side to probe into the port and the long side as a handle.
Once you are able to free it up it should shift fine. Replace the cross member and you're done.
Some suggested modifications to eliminate future problems is to add an additional washer shim. I used a little gear oil to add some lubrication in an attempt to make it harder for it to jam-up. I couldn't find a washer/shim otherwise I would have used that.
Good Luck,
Santiago
PS- This should normally take around 2 hours if you know what you're doing otherwise it might take around 3-4 if you're a little newbish....
01-13-06, 10:50 AM
#14
King of the Loop
^^^ damn good info man, its def a s5 thing too. I had it happen on my s5 tranny, reverse worked and every other gear just stalled. We tried unjamming it but ti was really done, i got a s4 tranny for $65 and have been problem free since(knocks on wood).
01-13-06, 11:15 AM
#15
spunout
Join Date: Dec 2005
Location: Austin
Posts: 1,029
Likes: 0
Received 0 Likes
on
0 Posts
I was going to say that this very thing happened to me on my 90 gtu. I thought that my clutch was fried because mine was stuck in first gear, got it out, and then it would not go into any gear at all. So the next day i did exactly what 87 said and i never had a prob after that. and to think that I was going to pay 450 to have a whole new clutch put in.
01-13-06, 02:29 PM
#17
Rotor7ven
Thread Starter
Join Date: Jun 2005
Location: kissimmee, fl
Posts: 338
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 1987RX7guy
FSM Page number: 7A-4
Chapter 7A
Connector #9
Chapter 7A
Connector #9
01-13-06, 02:30 PM
#18
Rotor7ven
Thread Starter
Join Date: Jun 2005
Location: kissimmee, fl
Posts: 338
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trainwreck517
Does it still go into the gears.. 1st. 2nd, 3rd, etc but just move in reverse... or does it not go into the gears at all.. shifter won't go to 1st gear postion? As if you hit a wall?
i can goin in 1st, 2nd, i cant go in 3rd 4th. and in 5th i have to like jam it really hard like push it! but it goes in. and in reverse it wont go in no matter wut
01-13-06, 02:34 PM
#19
Rotor7ven
Thread Starter
Join Date: Jun 2005
Location: kissimmee, fl
Posts: 338
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by inflatablepets
Get the shifter off first. I suspect wasted bushings. I wonder if the roll pin that holds the shifter broke and allowed the shift rod to engage into the 5/R linkage?
01-14-06, 01:43 AM
#20
Rotor7ven
Thread Starter
Join Date: Jun 2005
Location: kissimmee, fl
Posts: 338
Likes: 0
Received 0 Likes
on
0 Posts

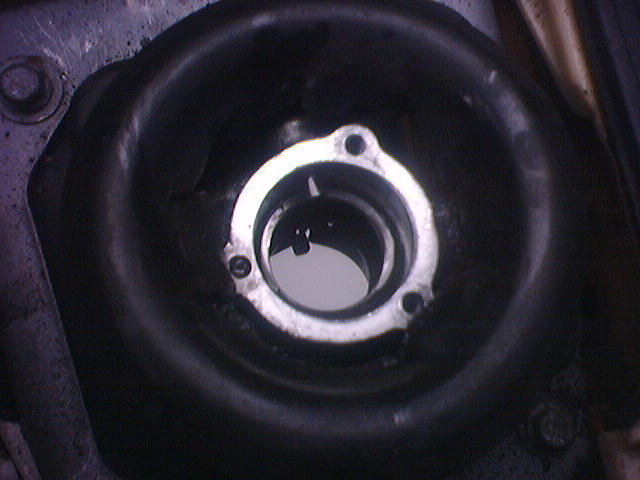

i have pics but when i press the manage attachments tab it wont open a window. so any1 think i need a new tranny?? cuz of the lil hook inside broke?? or is there a way to fix it?
