HELP ! NA Driveshaft to TII Diff - Is this safe?

Thread Tools

Search this Thread

Old 06-20-08, 02:53 PM
  #1
Full Member

Thread Starter
iTrader: (3)

ebdyguy's Avatar

Join Date: Dec 2005
Location: Central New York
Posts: 225
Likes: 0
Received 0 Likes on 0 Posts
NY HELP ! NA Driveshaft to TII Diff - Is this safe?

I just finished upgrading my 87 GXL to a TII diff. I still need to drive the car with the NA motor before I get all the rest of the parts I need for the motor / tranny upgrade.

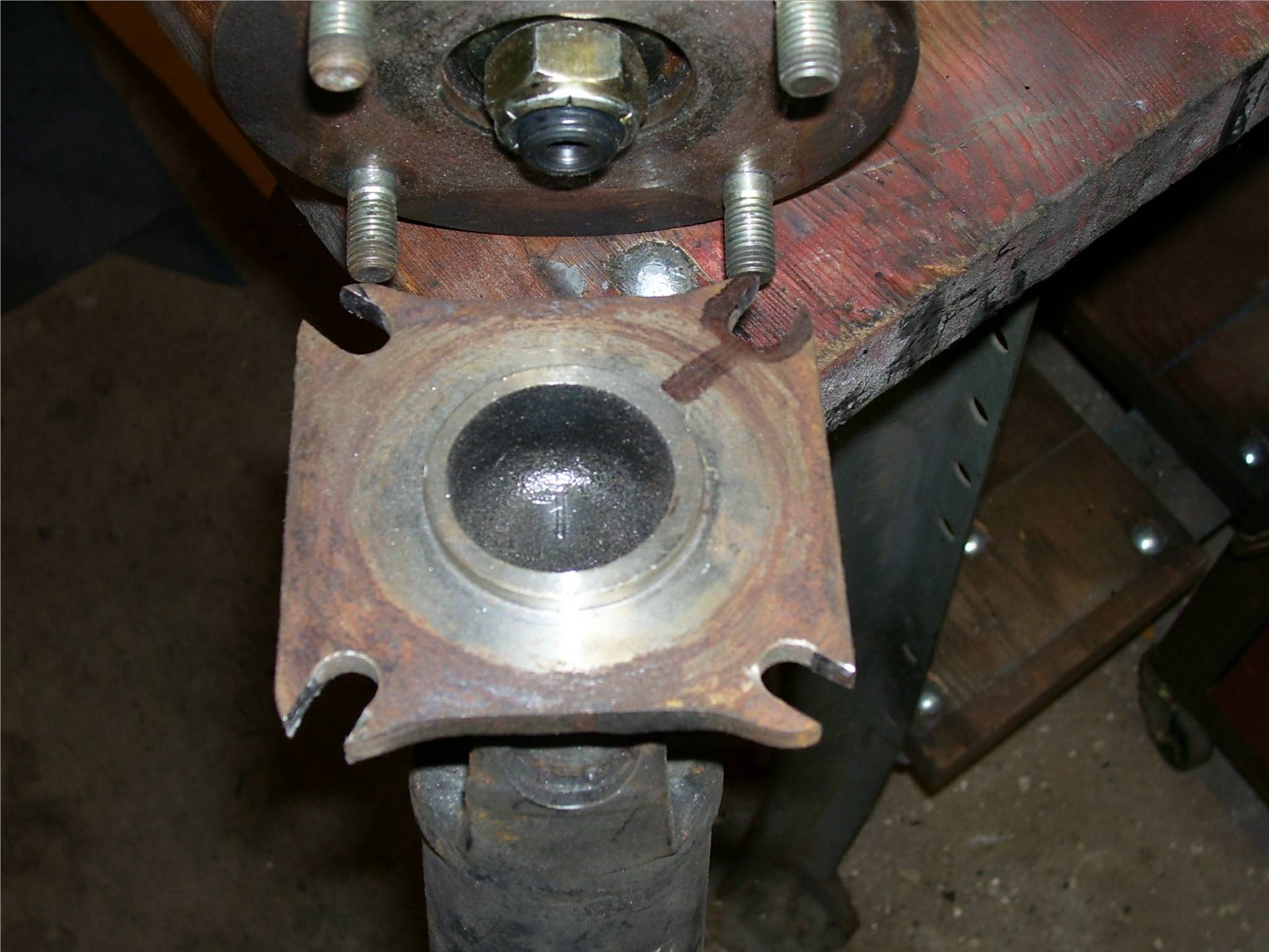

Can I just slot the NA Flange as shown in the pic and get away with this for a few months?

I do not have a donor TII drive shaft to get the right flange from. Has anybody actually run with something like this and if so were there any problems?
Attached Thumbnails HELP ! NA Driveshaft to TII Diff - Is this safe?-driveshaft20003.jpg
Old 06-20-08, 02:57 PM
  #2
dont kill the cones


13.bREW's Avatar

Join Date: Dec 2004
Location: Kennewick, WA
Posts: 361
Received 1 Like on 1 Post
i have always ran my 7 with the na d-shaft and the t2 rear end with no problems, but i didnt open my holes all the way like that so you might run into some strength issues if you shock your drivetrain
Old 06-20-08, 03:02 PM
  #3
Rotary Enthusiast

whereiscarmensandiego's Avatar

Join Date: Feb 2008
Location: tennessee
Posts: 900
Likes: 0
Received 0 Likes on 0 Posts
some people do it u will prolly get away with it.
Old 06-20-08, 06:59 PM
  #4
Zombie Response Team


somebody5788's Avatar

Join Date: May 2007
Location: Warsaw, Indiana
Posts: 396
Likes: 0
Received 0 Likes on 0 Posts
Drilled out that far I would question the strength but it could last a while.
Old 06-20-08, 08:35 PM
  #5
Senior Member

iTrader: (1)

blackball7's Avatar

Join Date: Aug 2007
Location: Indiana
Posts: 526
Likes: 0
Received 0 Likes on 0 Posts
im just going to say, NOT a smart idea...
Old 06-20-08, 10:06 PM
  #6
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
lemme see..you Slot the holes.OK..then you put the Driveshaft on..it Rotates at Say 8,000 Rpm..and since you have no Idea if the Driveshaft was Installed STRAIGHT because the Holes are Slotted,It Wobbles..It would likely take out the Differential seal,and Bearing....SURE.It's Safe...for Awhile..But,why Do things that you Just have to Replace Later?..it's your Nickel.and your Life,But I would get right stuff,and Be Done with it.
Old 06-20-08, 10:55 PM
  #7
Zombie Response Team


somebody5788's Avatar

Join Date: May 2007
Location: Warsaw, Indiana
Posts: 396
Likes: 0
Received 0 Likes on 0 Posts
It can't wobble because it is hub centric (ive used that word for this several times but I still dont know if its the correct way of saying it). Although it could still be off balance from grinding more off one corner but I do not see this as being as big an issue in this case. Now if it was noticeably more on one corner then i would worry.
Old 06-20-08, 11:09 PM
  #8
Senior Member

iTrader: (1)

blackball7's Avatar

Join Date: Aug 2007
Location: Indiana
Posts: 526
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by misterstyx69
lemme see..you Slot the holes.OK..then you put the Driveshaft on..it Rotates at Say 8,000 Rpm..and since you have no Idea if the Driveshaft was Installed STRAIGHT because the Holes are Slotted,It Wobbles..It would likely take out the Differential seal,and Bearing....SURE.It's Safe...for Awhile..But,why Do things that you Just have to Replace Later?..it's your Nickel.and your Life,But I would get right stuff,and Be Done with it.
yes, i agree with you but to correct your facts a little, it actually spins at a more violent 15,000 RPMs...
Old 06-20-08, 11:45 PM
  #9
SLEEPER

iTrader: (3)

siguy2k's Avatar

Join Date: Nov 2005
Location: nebraska
Posts: 1,121
Received 5 Likes on 2 Posts
If you have the replacable u-joint drive shaft you could just change the back yoke to a t2 one.
Old 06-21-08, 10:43 AM
  #10
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
It will be fine for the short term. The shaft is centered on the hub.

The NA shaft is also quite strong.
Old 06-21-08, 12:44 PM
  #11
Senior Member

iTrader: (1)

blackball7's Avatar

Join Date: Aug 2007
Location: Indiana
Posts: 526
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Aaron Cake
It will be fine for the short term. The shaft is centered on the hub.

The NA shaft is also quite strong.
Yes, that is true. but, it is still NOT a recommendable thing to do.
Old 06-22-08, 01:27 AM
  #12
Senior Member

iTrader: (5)

killalot13601's Avatar

Join Date: Sep 2005
Location: New York
Posts: 295
Likes: 0
Received 1 Like on 1 Post
It will last plenty long enough, you're Running the N.A its not like you're putting a N/A shaft to a T2.
Old 06-22-08, 06:54 AM
  #13
87 SE WITH S5 T2 SWAP

iTrader: (11)

joeylyrech's Avatar

Join Date: May 2004
Location: allentown pa
Posts: 2,071
Likes: 0
Received 3 Likes on 2 Posts
i done it on my SE(T2 swapped big turbo and 245/40/17 on the rear)but i didnt open the holes that much and never have any rear end or balacing issues,just line up the driveshaft to the rear end flange(make sure is straight)use a vice or a seaclamp to hold it together and tight the bolts down(its gonna be straight cause is centered by the hub)Now cause you took that much material you should get it rebalance just to make sure that it wont vibrate
