Hey guys! It's been quite awhile. Anyhow my alternator finally died on my 10th ae. Now, a LONG time ago, '02 I think, my buddy gave me his from his from a '92 FC Turbo II, (one of the last models ever made, techically a '92). Anyhow, at the time I had an '88 GTU and planned to use his old alternator to upgrade that car so I had it rebuilt. Now, I'd like to put it on mt 10th AE instead. Here is the thing, I can't be sure exactly what alternator I've got so I'm confused on which wiring diagram I should be looking at and what kind of "pigtail" I should get to properly wire it in.

Could you guys help me to identify what type of ALT I have and where I should look to either get the pigtail or to do all new wiring? Thanks!

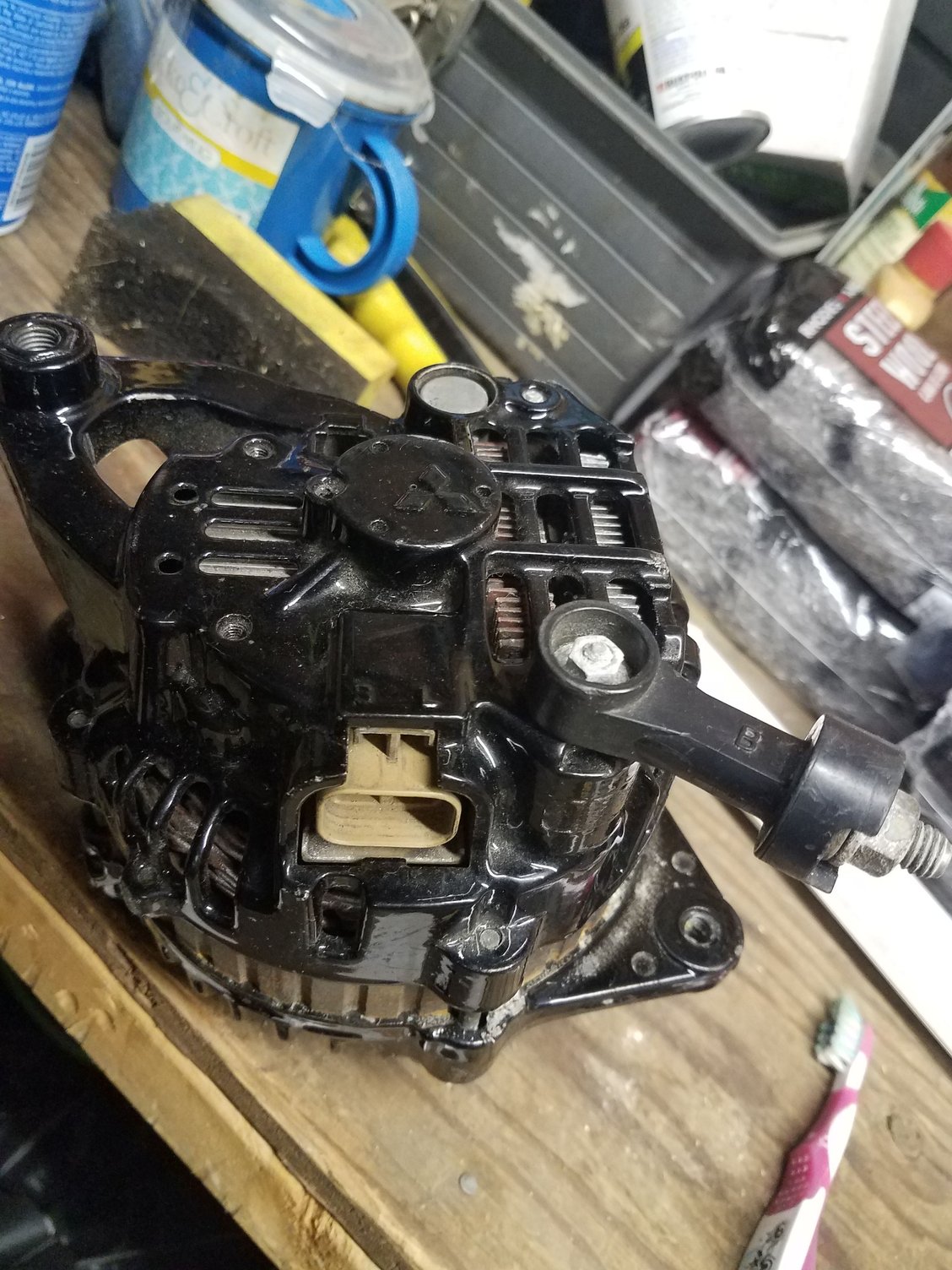

Off of a '92 turbo FC. Looks to be a S6?



2 pin Mitsubishi alternator pigtail



it looks to be for an s5. can be converted if you got a s5 pigtail with a little wiring. people have write-ups on here



Thanks guys. Yeah, I've been looking at those write-ups and they're a bit confusing for now but I think once I get into the car they'll make a little more sense. As for the pigtail, am I to attempt to find a wiring harness from a S5 in a pull-a-part or can I substitute it with that Mitsubishi one Antman mentioned?
