Badmofo3000

iTrader: (5)

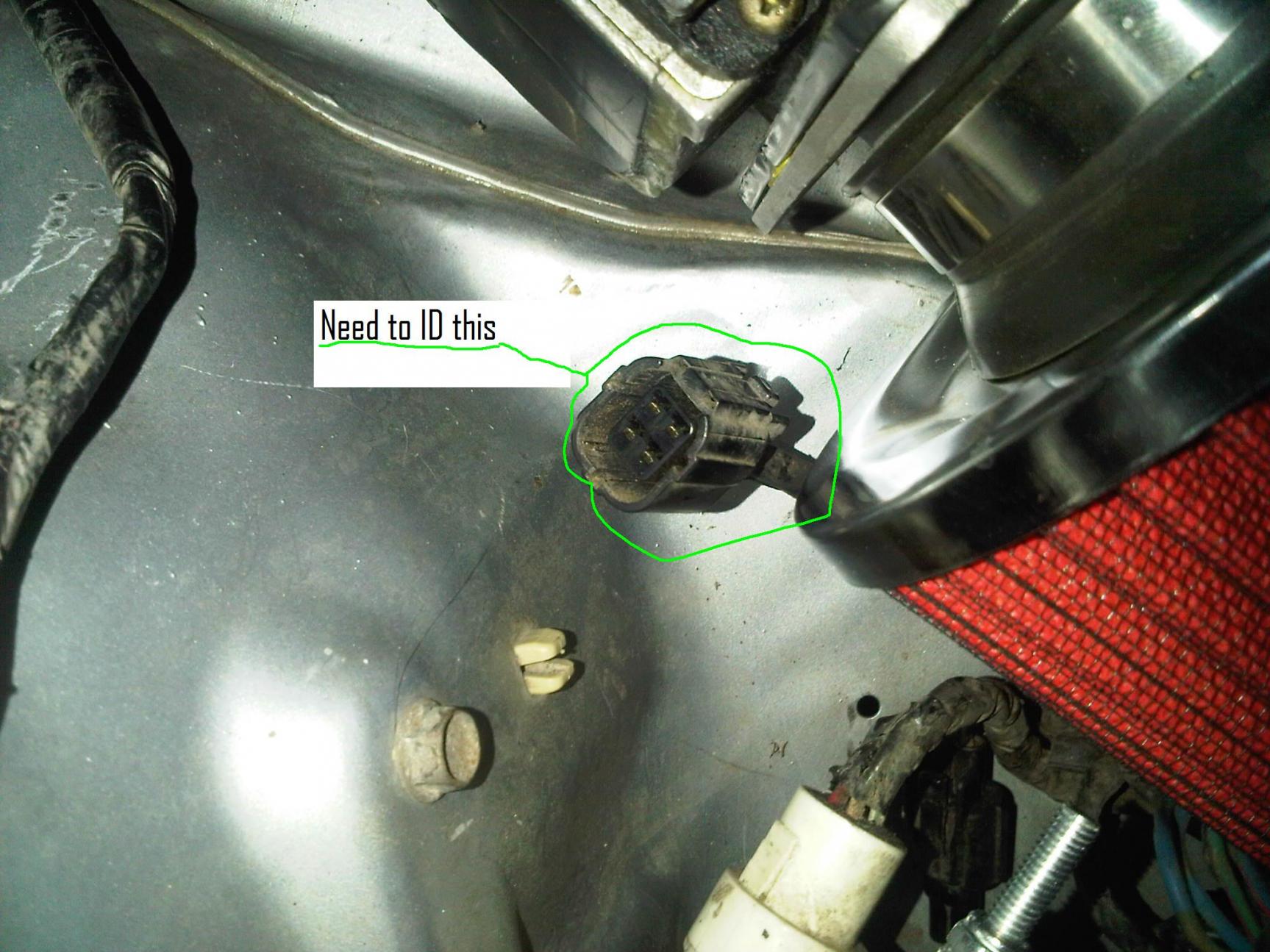

Just noticed this plug. Any help would be great.

Badmofo3000

iTrader: (5)

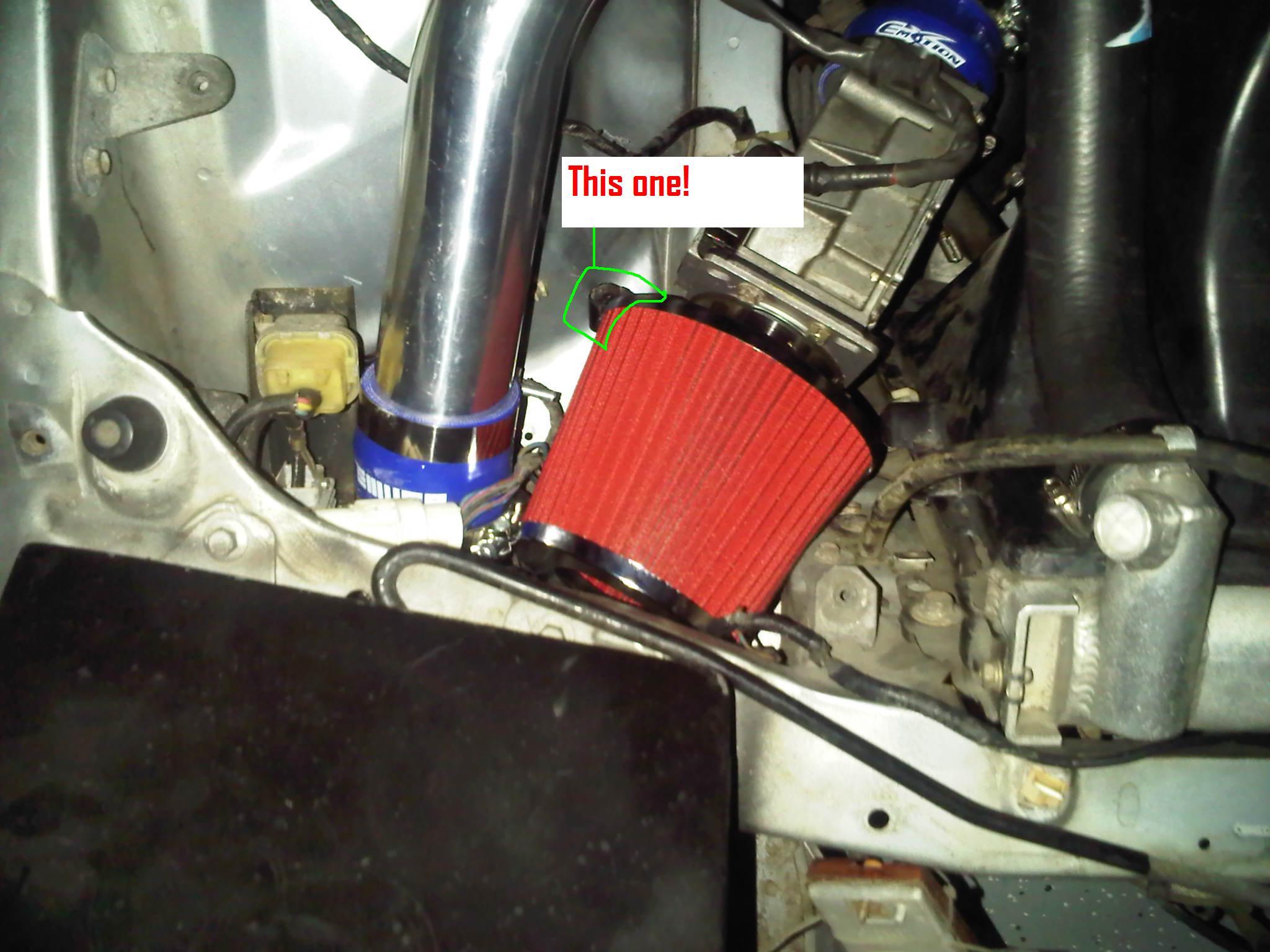

What does this plug connect to? Anybody know...

dwb87

iTrader: (22)

What color wires are associated with this plug?

Is there a reason you've turned your AFM sideways? That can have an effect on the flapper door.

misterstyx69

iTrader: (142)

Sort of looks like a connector for the front signal lights.
..and turn your afm so the door opens like a door.(needs to be flat).

FelixIsGod29X

iTrader: (50)

The front signal lights have a flat 3 wire plug i think. Maybe thats the side marker plug? I have that same plug just hanging around in my bay not plugged into anything and i dont have side markers so i guess thats what its for? Overall i know its not engine related. And yes, please level out your afm. It shouldnt be sideways like shown in your picture.

dwb87

iTrader: (22)

The reason I ask about the wire colors is because the plug may just be for the front windshield washer motor. (Not to be confused with the windshield wiper motor near the firewall.)

Th0m4s

You're right. It's the washer pump. Two pins are for the pump and two are for the signal light for the empty water tank in the idiot light panel.

RotaryRocket88

iTrader: (7)

I'll 3rd that. The washer pump/level sensor connect to that plug. I just used the tank and sensor to finish my AI setup.

Badmofo3000

iTrader: (5)

To all, thank you very much! I can sleep better at night. And I turned my AFM. Again, thank you for the info. I just finished a completed tear down and rebuild and about to turn the key. Forgot I removed the W-washer to install the FMIC.

misterstyx69

iTrader: (142)

Ya,I just noticed that plug is unused on my car too.Then again I took alot of stuff off..heh,heh.
