Guage Wiring/Pic Needed

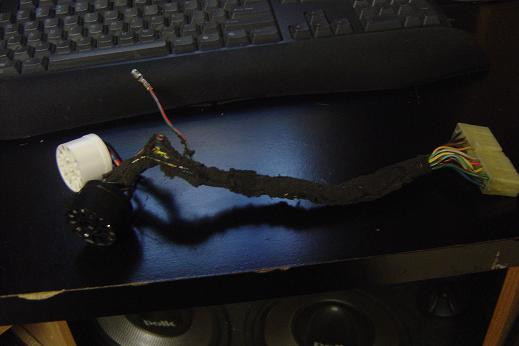

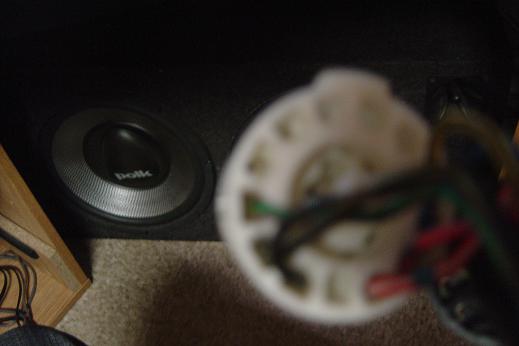

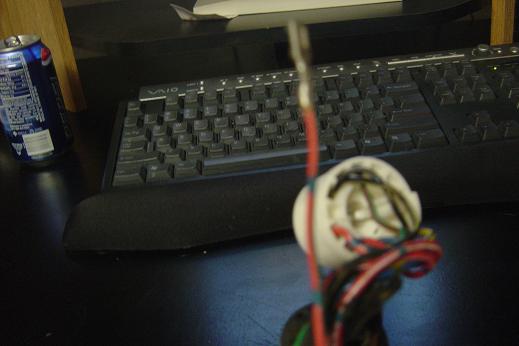

ok well i took out my guage cluster and i found a lose wire on the white circle if anybody would have a pic so i could see where it goes let me know thanks guys or send it to my email SickFc3s@gmail.com
Attached Thumbnails Guage Wiring/Pic Needed-dsc00862.jpg   Guage Wiring/Pic Needed-dsc00863.jpg   Guage Wiring/Pic Needed-dsc00864.jpg
Reply
Old Jan 31, 2006 | 06:37 PM
  #2
RxVertJames's Avatar
Full Member
Tenured Member 10 Years

Joined: Aug 2005
Posts: 122
Likes: 0
From: Ohio
Whats the color of the wire, just to be sure.... I have a Haynes manual to try and help
Reply
Old Jan 31, 2006 | 07:04 PM
  #3
RxVertJames's Avatar
Full Member
Tenured Member 10 Years

Joined: Aug 2005
Posts: 122
Likes: 0
From: Ohio
Smile

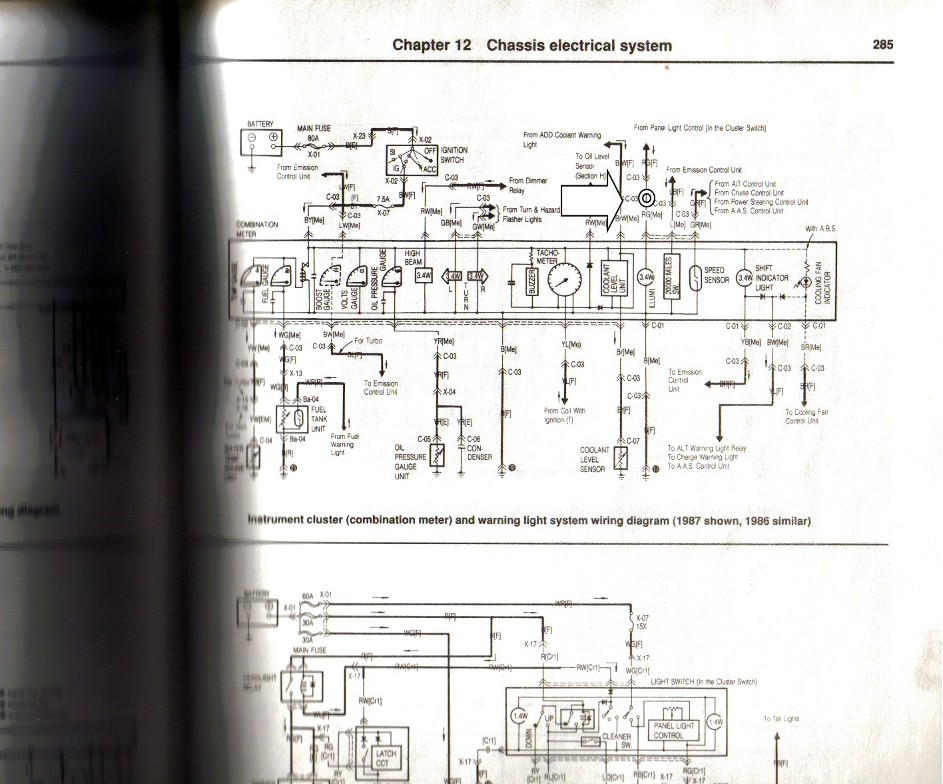

If the wire is red with a green stripe, heres what it does!
Attached Thumbnails Guage Wiring/Pic Needed-project1.jpg
Reply
Old Jan 31, 2006 | 10:16 PM
  #4
LookThatsMe's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 10 Years

Joined: Apr 2004
Posts: 841
Likes: 0
From: NJ
yea its the red wire/green stripe, and blue side stripes... Thanks alot
Reply
Old Jan 31, 2006 | 10:21 PM
  #5
LookThatsMe's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 10 Years

Joined: Apr 2004
Posts: 841
Likes: 0
From: NJ
dammit i hate the Wiring Diagrams I get confused when i see them lol but i dont see anything on where to put it... i got the book too and the wiring dont say anything and where to put it in because i have 1 loose wire and 5 empty spots and spot (D,E,F,G,H) are empty
Reply
Old Feb 1, 2006 | 09:55 AM
  #6
LookThatsMe's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 10 Years

Joined: Apr 2004
Posts: 841
Likes: 0
From: NJ
Anyone has a picture or be able to take one with the wire connected so i could see where it goes?
Reply
Old Feb 1, 2006 | 11:27 AM
  #7
HAILERS's Avatar
HAILERS
Tenured Member 10 Years

Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
,

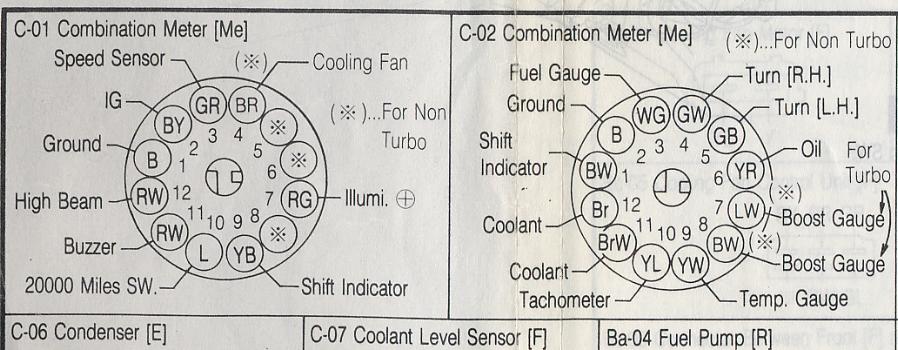

Attached Thumbnails Guage Wiring/Pic Needed-redandgreen.jpg
Reply
Old Feb 1, 2006 | 01:18 PM
  #8
LookThatsMe's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 10 Years

Joined: Apr 2004
Posts: 841
Likes: 0
From: NJ
Thanks alot hailers and everyone else
Reply
Old Feb 1, 2006 | 03:12 PM
  #9
LookThatsMe's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member 10 Years

Joined: Apr 2004
Posts: 841
Likes: 0
From: NJ
Well that figures why my guage cluster lights didnt work... the red a green wire is for the Illumi.
Reply
Old Feb 1, 2006 | 04:22 PM
  #10
HAILERS's Avatar
HAILERS
Tenured Member 10 Years

Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
Originally Posted by LookThatsMe
Well that figures why my guage cluster lights didnt work... the red a green wire is for the Illumi.
I almost asked if you had gauge lighting. Have fun.
