got lsd for free
04-27-05, 05:41 PM
#1
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jan 2005
Location: Bay area, CA
Posts: 318
Likes: 0
Received 0 Likes
on
0 Posts
got lsd for free

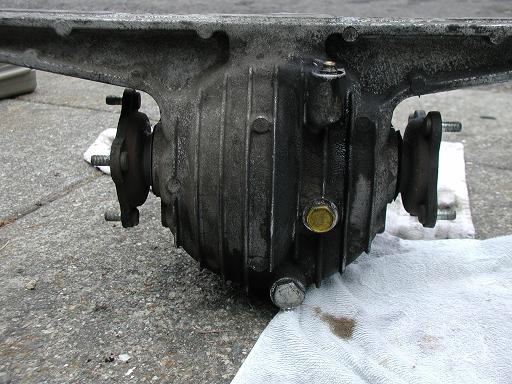

i got an "lsd" for free yesterday, from a s4, i was told it was limited slip diff, but i dont know for sure that it is. is there anyway to tell if it is really an lsd? i know i could open it up and look but i kinda want to avoid that, although it might be fun
04-27-05, 05:51 PM
#2
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
It's missing the tag that came on all of the limited-slip differentials, so it's pretty hard to tell without splitting it or installing it in a car (though you could always try seeing how difficult it is to spin the two outputs in the opposite direction, if it goes easily it's an open diff, if there's some serious force required it's a limited-slip usually)
04-27-05, 06:30 PM
#3
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jan 2005
Location: Bay area, CA
Posts: 318
Likes: 0
Received 0 Likes
on
0 Posts
the outputs did not move very freely at all. they would only move a lil in each direction then lock up, that or im puney as a ****. thanks for that SonicRat
anyone else got some input
anyone else got some input
04-27-05, 08:05 PM
#4
Rotang Enthuesiest!
Join Date: Aug 2004
Location: Victoria B.C. Canada
Posts: 97
Likes: 0
Received 0 Likes
on
0 Posts
lol, if it is a limited slip diff then that was a wicked deal, even if it isnt still a wicked deal!! Just letting you know that putting in a LSD is a nother story its a real SOB to take out the old and put in new if you dont have a proper car lift and or a few friends to help, definatley and all day event!
04-27-05, 10:01 PM
#5
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jan 2005
Location: Bay area, CA
Posts: 318
Likes: 0
Received 0 Likes
on
0 Posts
prob be more like a all weekend event for me. im about to swap out my suspension this weekend, should i swap the differential also while all my suspension is off? ive got plenty of help, but will it be very difficult to do without a lift and uh really good tools? dam i wish i had a ****** shop.
04-27-05, 10:18 PM
#6
it shouldn't lock up when turning the outputs, they should both spin the same direction and have some amount of load on them but definitely not locking up. try spinning the pinion yoke (driveshaft flange) and make sure both axle flanges spin the same direction, if you hold one side it should be impossible to turn the pinion yoke by hand without the differential trying to turn over like a turtle on it's back.
04-27-05, 10:31 PM
#7
BOOSTED Vert
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Karack
it shouldn't lock up when turning the outputs, they should both spin the same direction and have some amount of load on them but definitely not locking up. try spinning the pinion yoke (driveshaft flange) and make sure both axle flanges spin the same direction, if you hold one side it should be impossible to turn the pinion yoke by hand without the differential trying to turn over like a turtle on it's back.
Trending Topics
04-27-05, 10:34 PM
#8
Rotors? What Are Those?
iTrader: (6)
Join Date: Jul 2003
Location: Jefferson City, Tn
Posts: 2,601
Likes: 0
Received 0 Likes
on
0 Posts
easiest way to find you is turn one side of it to the right or to the left if you turn it to the right and the other side turns the same way its LSD if it turns the opposite way its an open diff....
TwEaK
TwEaK
04-27-05, 11:19 PM
#10
BOOSTED Vert
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Karack
even open diffs can spin both tires but when going around turns is when the difference is noticable, an open diff will do a peg leg burnout where a posi will spin *** end around.
to tell for sure jack up the car and do what ^ posted.
to tell for sure jack up the car and do what ^ posted.
I know that when I spin one tire the other spins the opposite. But I notice that on let say my dads truck, when im in grass or sand w.e. and the the tire spins, only one does it, but my car both tires spin when either burn out or launches. i know that lsd wasnt given as an option on the verts, but if it does get the power to the ground then Its the same to me...
04-28-05, 05:20 PM
#14
Senior Member
Thread Starter
iTrader: (1)
Join Date: Jan 2005
Location: Bay area, CA
Posts: 318
Likes: 0
Received 0 Likes
on
0 Posts
alright if anyoneone still cares, i just jacked up my s5 n/a with open diff and spun the rear driversside tire, and only that wheel that i spun moved, but i did notice that the other tire(passenger side) would move in the oppisite direction only a LITLE!, so this helped me clarify that my car currently have as a open diff
were as the differential i got the other day wen spinning 1 of the outputs both would move in the same direction..
so i got a free lsd!
sorry for this dumb thread but im new to the lsd
so can anyone tell me if this lsd needs a rebuild, or some other valuable knowledge they would like to share about lsd's
thanks for all the input everyone
were as the differential i got the other day wen spinning 1 of the outputs both would move in the same direction..
so i got a free lsd!
sorry for this dumb thread but im new to the lsd
so can anyone tell me if this lsd needs a rebuild, or some other valuable knowledge they would like to share about lsd's
thanks for all the input everyone
