gauge install project
oh no! another gauge thread. well it might be interesting to some people.
first, i cut out a panel to replace the climate controls. i've seen a lot of people put panels on the outside of the vent trim, but i thought it would look MUCH better on the inside. unfortunately i didn't have the proper size hole saw so i had to make do with a dremel.
the panel is jbwelded to the trim all along the sides and bottom, but only to the screw housing on top. this way the vents still turn.
then i painted the whole unit semi flat black.
i cut the climate control's harness and extended it about a foot so i could move it to the lower din.
there we go. very nice.
next, i installed the senders. i decided to use the stock locations. had to use an adapter for the water temp.
oil pressure:
water temp:
then wired up the power, and there we go.
first, i cut out a panel to replace the climate controls. i've seen a lot of people put panels on the outside of the vent trim, but i thought it would look MUCH better on the inside. unfortunately i didn't have the proper size hole saw so i had to make do with a dremel.
the panel is jbwelded to the trim all along the sides and bottom, but only to the screw housing on top. this way the vents still turn.
then i painted the whole unit semi flat black.
i cut the climate control's harness and extended it about a foot so i could move it to the lower din.
there we go. very nice.
next, i installed the senders. i decided to use the stock locations. had to use an adapter for the water temp.
oil pressure:
water temp:
then wired up the power, and there we go.
#7
Rabbit hole specialist
iTrader: (11)
Originally Posted by IaMtHeRuThLeSs1
That looks great! Where'd you get the redish light up guages from? how much?
RX-7 Store has the best pricing I can recall seeing on Defi gauges.
http://www.rx7store.net/index.asp?Pa...RODGROUP&ID=38
Great job on the setup. It looks good.
Last edited by JerryLH3; 03-30-05 at 02:12 PM.
Trending Topics
#8
Flame Thrower
Thread Starter
Join Date: Oct 2004
Location: Bay Area
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts

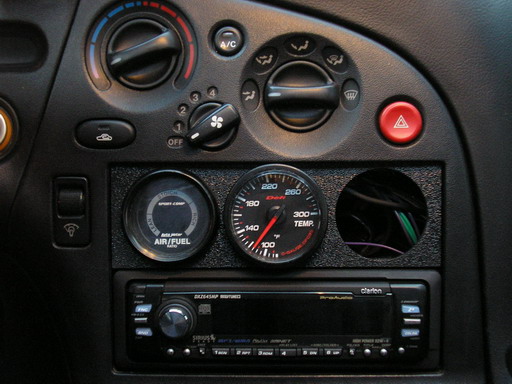

wan, the black trim looks great. i was considering doing that too.
i got the gauges from egauges.com. the prices are the same or very close to rx7store, but free shipping for orders over $200.
i got the gauges from egauges.com. the prices are the same or very close to rx7store, but free shipping for orders over $200.
#12
spending too much money..
iTrader: (2)
very nice looking when guages are installed and it's painted black. ONly problem though, liked mentioned before, is your water temp guage is not going to read the correct temp that the block sees because you installed the sender before the tstat. Also when you use an adapter to fit in the stock location for the oil pressure sensor it will show lower than what it should, at least it did with me. When I had an adapter it showed 20-25 at idle and 50-55 at full throttle however when I took the adapter out I saw 30 at idle and 60 at wot. Nice looking gauge location though.
Last edited by hondahater; 03-30-05 at 08:21 PM.
#13
Flame Thrower
Thread Starter
Join Date: Oct 2004
Location: Bay Area
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
temp reads about 181 after 20 minutes of driving. i would definately prefer to have the sender in the block though. i may move it in the future.
i'm getting 60psi on cold startup and around 20 at warm idle. i thought it should be higher than that! that sender may have to move too.
these are good for now at least though
i'm getting 60psi on cold startup and around 20 at warm idle. i thought it should be higher than that! that sender may have to move too.
these are good for now at least though
