Functional Hood Scoops
ok, last year i bought a beat up gen2 turbo II for parts. so im thinking it would be nice to get the turbo hood onto my n/a car and make it completely functional. if you are familiar with the turbo car, there is a rubber boot where the intercooler used to sit on the underside of the hood. what could i use to get air from the scoop to the stock air box set up? any ideas??
#3
very sleepy!!
Join Date: Jan 2005
Location: Tampa, FL
Posts: 1,052
Likes: 0
Received 0 Likes
on
0 Posts
use the tII engine?!?!? or you can use the tII intakes with the intercooler w/o the turbo but you wont get any gains with that (if that is possible). it'll be really hard to make the scoop functional for the n/a. you can make a box inside the scoop and route it to the throttle body but then you'll have to customize the inlet.
#6
1 miracle from sainthood
Join Date: Dec 2004
Location: Massachusetts / Osaka Japan
Posts: 455
Likes: 0
Received 0 Likes
on
0 Posts
probably your best bet would be to fabricate some box type tubing that is actually attached to the hood. this would have to have the dimentions of your hood scoop inlet, the height and width. it's about 2" X 12"-14". this will keep your piping as low profile as possible and still give you maximum flow because of the placement of the T2 hood scoop it's a high pressure zone and will take in alot of air.
hope that helps,
TR
hope that helps,
TR
#7
very sleepy!!
Join Date: Jan 2005
Location: Tampa, FL
Posts: 1,052
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Sideways7
Don't carb setups have the intake on top?
Trending Topics
#8
Doin a rebuild.
iTrader: (1)
Join Date: Aug 2004
Location: Roswell (atl ) Georgia
Posts: 539
Likes: 0
Received 0 Likes
on
0 Posts
move air flow meter
if you moved the air flow meter up to the front of the throttle body and then instantly without disrupting airflow went to a sealed section from the hood scoop you'd effectively have a very short ram intake with reasonably cool air. Moving the air flow meter closer to the throttle body should help throttle response also.
#9
very sleepy!!
Join Date: Jan 2005
Location: Tampa, FL
Posts: 1,052
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by sar
if you moved the air flow meter up to the front of the throttle body and then instantly without disrupting airflow went to a sealed section from the hood scoop you'd effectively have a very short ram intake with reasonably cool air. Moving the air flow meter closer to the throttle body should help throttle response also.
and the only reason i say tII intakes is because the n/a inlet is in the passengers side and the scoop is offcenter towards the drivers side as the inlet for the tII intakes are. i figured that would be the easiest setup if tried.
#10
1 miracle from sainthood
Join Date: Dec 2004
Location: Massachusetts / Osaka Japan
Posts: 455
Likes: 0
Received 0 Likes
on
0 Posts

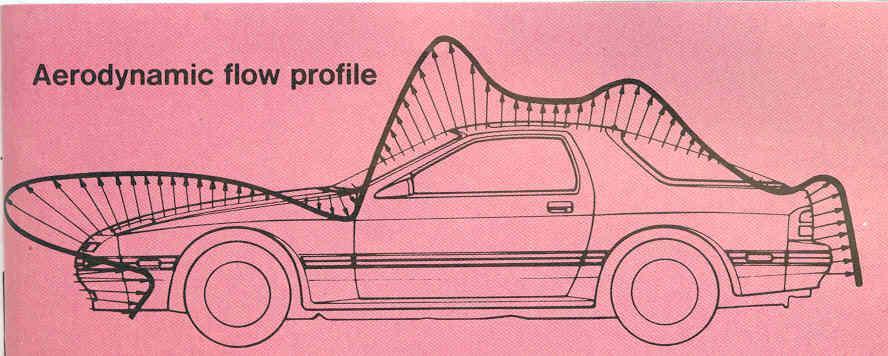

the picture displays high and low pressure areas. working from front to back you see if the car were in a wind tunnel you would have high pressure hitting the front air dam and bumper where the headlights are. the arrows pointing in show air movement into and through the radiator and oil cooler area. the arrows pointing out show the resistance of the bumper and hood, this is causing the airstream to be pushed away from the car slightly (high pressure area)
thats why the little vents in the headlight cover work so well, the air is hitting it rather hard and looking for a place to go. when someone installs that vent the air during forward motion rushes into that opening.
pressure decreases as the airstream moves up the hood, but again you see more high pressure at the windshield because the airstream need to be redirected again. on the roof there is a low pressure where the sunroof is on some cars. due to that low pressure the airsream will try to fill that and colide with the top of the rear hatch indicated by another higher pressure area.
I hope this all helps,
TR
thats why the little vents in the headlight cover work so well, the air is hitting it rather hard and looking for a place to go. when someone installs that vent the air during forward motion rushes into that opening.
pressure decreases as the airstream moves up the hood, but again you see more high pressure at the windshield because the airstream need to be redirected again. on the roof there is a low pressure where the sunroof is on some cars. due to that low pressure the airsream will try to fill that and colide with the top of the rear hatch indicated by another higher pressure area.
I hope this all helps,
TR
#11
very sleepy!!
Join Date: Jan 2005
Location: Tampa, FL
Posts: 1,052
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by takahashiRyosukeFC3S
the picture displays high and low pressure areas. working from front to back you see if the car were in a wind tunnel you would have high pressure hitting the front air dam and bumper where the headlights are. the arrows pointing in show air movement into and through the radiator and oil cooler area. the arrows pointing out show the resistance of the bumper and hood, this is causing the airstream to be pushed away from the car slightly (high pressure area)
thats why the little vents in the headlight cover work so well, the air is hitting it rather hard and looking for a place to go. when someone installs that vent the air during forward motion rushes into that opening.
pressure decreases as the airstream moves up the hood, but again you see more high pressure at the windshield because the airstream need to be redirected again. on the roof there is a low pressure where the sunroof is on some cars. due to that low pressure the airsream will try to fill that and colide with the top of the rear hatch indicated by another higher pressure area.
I hope this all helps,
TR
thats why the little vents in the headlight cover work so well, the air is hitting it rather hard and looking for a place to go. when someone installs that vent the air during forward motion rushes into that opening.
pressure decreases as the airstream moves up the hood, but again you see more high pressure at the windshield because the airstream need to be redirected again. on the roof there is a low pressure where the sunroof is on some cars. due to that low pressure the airsream will try to fill that and colide with the top of the rear hatch indicated by another higher pressure area.
I hope this all helps,
TR
actually it does. i've always wondered why they've never made a cowl induction hood but from the looks of the pic there isnt and high pressure for the hood to induct from. also wouldnt be more efficient if mazda moved the hood scoop about 3-4 inches towards the front?
#13
very sleepy!!
Join Date: Jan 2005
Location: Tampa, FL
Posts: 1,052
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by jeff_rx7
titos toy... do you think my car would still be n/a if i had the tII engine??? it was only the body and trans.... no engine
#15
1 miracle from sainthood
Join Date: Dec 2004
Location: Massachusetts / Osaka Japan
Posts: 455
Likes: 0
Received 0 Likes
on
0 Posts
i think it's a good idea to have the air intake on the front of the bumper for maximum efficiancy like this boddy kit does. http://www.raceonusa.com/index.asp?P...ROD&ProdID=975
jana,
TR
jana,
TR
#17
mattg prob nt coming back
iTrader: (3)
Join Date: Feb 2005
Location: OrangePark FL
Posts: 1,933
Likes: 0
Received 0 Likes
on
0 Posts
i think it could work but it would have to be like a mustang shaker hood scoop. where one intake rest where stock location is and another is at the vent. but even the mustang guys say that it only really helps when your already going pretty fast (60 to 70 mph)
#18
very sleepy!!
Join Date: Jan 2005
Location: Tampa, FL
Posts: 1,052
Likes: 0
Received 0 Likes
on
0 Posts
looks alot like the mariah front bumper. but that is a good one to have an air intake installed
#20
Senior Member
all i know is that when i put my fmic on i had cooling problems..... i am thinking this is because the hood scoop was creating a high pressure zone in the engine bay and not letting air flow easily in from the front of the car
it wasnt a stock hood, it was a N/A hood with a summit scoop rivited to it with hole cut beneath (jspec swap) as soon as i turned the scoop around so the intake of it was facing back towards the window, the problem was gone...........really helped alot.... i guess kinda of like how the v-mount hood setup helps with overall cooling
zac
it wasnt a stock hood, it was a N/A hood with a summit scoop rivited to it with hole cut beneath (jspec swap) as soon as i turned the scoop around so the intake of it was facing back towards the window, the problem was gone...........really helped alot.... i guess kinda of like how the v-mount hood setup helps with overall cooling
zac
Last edited by zbrown; 01-10-06 at 10:16 PM.
