fuel system
so i jumped the fuel check connector. then turned key on n went by fuel pump n i heard a whinning noise coming from it. but it kept sounding. i replaced the fuel filter, mine was clogged still nothing. so im thinking im not gettin any pressure in my fuel system. gotta get a gauge n see. im pretty sure there are no leaks anywhere. could it jus be my fuel pump?
#4
"Royal Flush 2o9"
Thread Starter
Join Date: Sep 2010
Location: modesto ca
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
Alright so my lines were crossed switched those. Still nothin I can hear my fuel pump working but not pumping gas throu checked all the relays and all those are good can't figure it out
#7
Rotary Freak
IF the pump runs theres no problem with relay etc. Right? Right.
The second post on this thread suggested doing what you should do. Remove the Return line from the engine interface.
Jumper the fuel pump check connector. Key ON. Fuel should flood the floor and should be coming from the engine return hard line.
If it does not, then pull the Pressure line off and put it in a container. Jupmper the fuel pump check connector and turn the key ON. Fuel should pour out of the line attached to the fuel filter.
If fuel comes out of the fuel filter but did NOT come out the return line on the engine when you tried that earlier................you have the fuel routed wrong on the engine somehow.
The last thing on the engine prior to the fuel going into the fuel reurn line is.........the FPR. If you have the return line going to anything other than the FPR then the fuel routing is wrong on the engine.

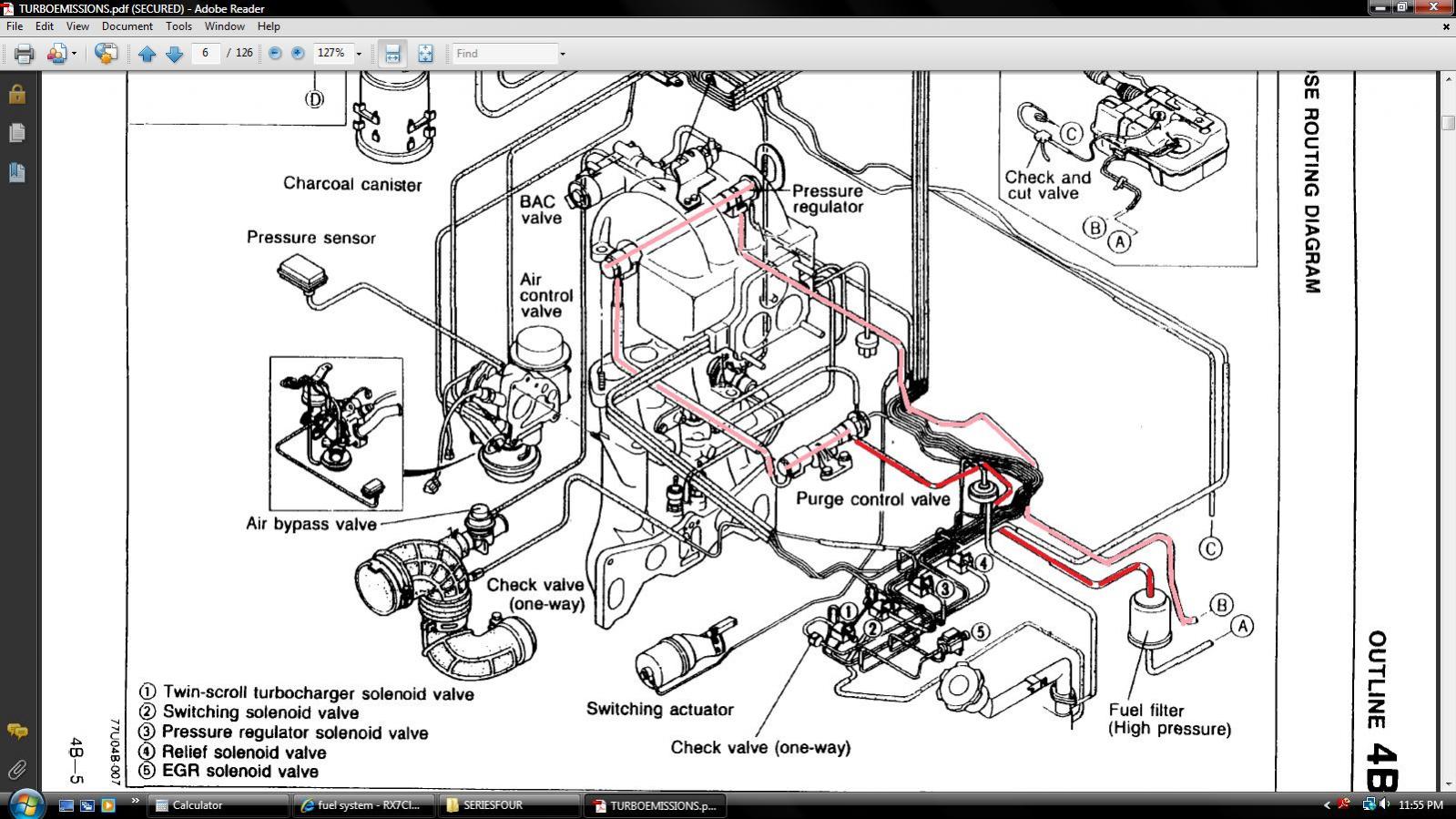

Typical fuel path for na and turbo shown in the jpgs.
The second post on this thread suggested doing what you should do. Remove the Return line from the engine interface.
Jumper the fuel pump check connector. Key ON. Fuel should flood the floor and should be coming from the engine return hard line.
If it does not, then pull the Pressure line off and put it in a container. Jupmper the fuel pump check connector and turn the key ON. Fuel should pour out of the line attached to the fuel filter.
If fuel comes out of the fuel filter but did NOT come out the return line on the engine when you tried that earlier................you have the fuel routed wrong on the engine somehow.
The last thing on the engine prior to the fuel going into the fuel reurn line is.........the FPR. If you have the return line going to anything other than the FPR then the fuel routing is wrong on the engine.
Typical fuel path for na and turbo shown in the jpgs.
Trending Topics
#8
"Royal Flush 2o9"
Thread Starter
Join Date: Sep 2010
Location: modesto ca
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
Ok. Well wat I did was disconnected the lines rite off the pump itself. Turned key on n no gas coming out. Also did this while had the check connector jumped. I can hear the pump n can feel it virbrate.
#9
Rotary Freak
Like someone mentioned earlier...............remove the pump from the gas tank and see if the hose clamps fell off the pump or??? on the bottom is that filter/strainer that might be clogged. Sometimes those will varnish over and you can't tell they are clogged up or not.
On the other hand you could remove the pump and find a gas tank that is full of rust/corrosion causing the clogging up of the bottom filter/pump.
Just remove the ???? ten or so screws and lift the pump up and out. Takes some manipulation of the pump to get it out.
Always bothersome to me to have a gas tank with a large oval opening in it's top open to god knows what. Some danger involved but we all do it.
On the other hand you could remove the pump and find a gas tank that is full of rust/corrosion causing the clogging up of the bottom filter/pump.
Just remove the ???? ten or so screws and lift the pump up and out. Takes some manipulation of the pump to get it out.
Always bothersome to me to have a gas tank with a large oval opening in it's top open to god knows what. Some danger involved but we all do it.
#10
"Royal Flush 2o9"
Thread Starter
Join Date: Sep 2010
Location: modesto ca
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
ive taken the pump out a few times already. everything is still intact. the tank looks really clean still i jus put about 3 gallons in the thing. next thing ill replace the sock maybe that will do it. is there a way to test the pump at all b4 i buy a new 1?
#11
Rotary Freak
I guess you could put it in a bucket of water and jumper power and gnd to it..........but its probably easier to rip the sock off and just put it back in the tank with a few screws and turn it on with the output line in a ???? container? to see if that helped or not. No output .......new pump.
I believe the pwr wire is black/white on the pumps pigtail and black for gnd. But like I said......just as easy to just pull the sock off and reinstall temp and turn the pump on.
I believe the pwr wire is black/white on the pumps pigtail and black for gnd. But like I said......just as easy to just pull the sock off and reinstall temp and turn the pump on.
#12
"Royal Flush 2o9"
Thread Starter
Join Date: Sep 2010
Location: modesto ca
Posts: 90
Likes: 0
Received 0 Likes
on
0 Posts
Ok well i put it.in water n hooked it up found out it was.spinning backwards. We swichted power n ground n got it to work. so some how my power is ground n ground is power. so wat i did was switch them on the pigtail n now it works. Wow this was weird.
#15
Rotary Freak
Yep. Odd. Sounds like a *first* for this forum.
The Black/White wire on the pigtail harness on the pump itself should be power and black the gnd.
The Black/white wire on the pigtail harness should mate with a pure blue wire at the connector that mates with the rear body harness.
The Black/White wire on the pigtail harness on the pump itself should be power and black the gnd.
The Black/white wire on the pigtail harness should mate with a pure blue wire at the connector that mates with the rear body harness.
