Front End Damage, is it fixable?

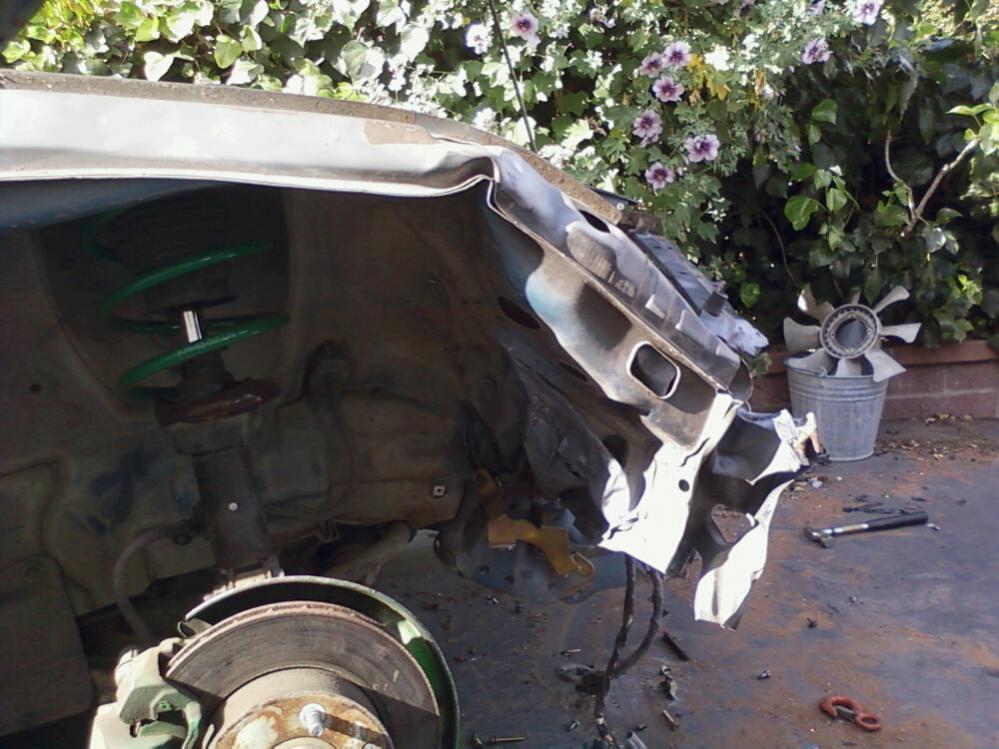

Give me some good news! haha, got into a crash and my frame got a little bent in the front, mostlly all on the passenger side, the steering was not affected, which im guessing is a good sign, but i want some advice from people who have crashed like this before or know about body work.
Attached Thumbnails Front End Damage, is it fixable?-photo165.jpg   Front End Damage, is it fixable?-photo166.jpg
Reply
Old Mar 13, 2012 | 12:54 PM
  #2
RotaryEvolution's Avatar
Sharp Claws
Tenured Member 15 Years
iTrader: (30)

Joined: Oct 2003
Posts: 5,107
Likes: 50
From: Central Florida
don't focus so much on the support structure but the frame itself. was the frame bent or look out of whack? did the car pull after the accident? a frame shop can probably tell you with a reasonable estimate if it's worth trying to fix.

the support structure can be cut from another car and welded in, how much is anyone's guess. whether it shifted the strut tower or not is the real question.
Reply
Old Mar 13, 2012 | 01:01 PM
  #3
Tofuman FC3S's Avatar
Like a G6
Tenured Member 10 Years
iTrader: (1)

Joined: Dec 2007
Posts: 713
Likes: 0
From: In the Dutch Mountains
See my build topic in my sig for your awnser. After that, measure to see if everything from the subframe and back is straight.

Riz.
Reply
Old Mar 13, 2012 | 01:02 PM
  #4
REAmemiya_fan's Avatar
Passion for Racing

Joined: Aug 2010
Posts: 1,066
Likes: 2
From: Crown Point, Indiana
IMHO, it is not worth the hassle. Look for my build thread, it wasn't as bad as yours, but equally a pain. The way the frame is bent like that, It literally is not worth it. I would just source a better shell and swap things over. S4 shells are a dime a dozen. Bought mine with simply no engine or trans for $500. And it was a GXL with everything working.
Reply
Old Mar 13, 2012 | 04:35 PM
  #5
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
its fixable, but it needs the whole front radiator support and a frame pull, so its probably not worth the money/time
Reply
Old Mar 13, 2012 | 06:24 PM
  #6
PvillKnight7's Avatar
Rotary Freak
Tenured Member: 20 Years
iTrader: (16)

Joined: May 2002
Posts: 2,597
Likes: 3
From: Maryland
Definitely fixable and definitely worth the time if you can do the repair yourself. The fender gaps may never be perfect but if the rest of the car is stout, I'd do the repair and run it into the ground.

Do you have a porta power? Mig welder? You might have to drill some spot welds, straighten the metal, then re weld them.
Reply
Old Mar 13, 2012 | 06:38 PM
  #7
Rob XX 7's Avatar
FC guy
Tenured Member 20 Years
iTrader: (8)

Joined: Oct 2002
Posts: 8,713
Likes: 17
From: Long Island, New York
Originally Posted by PvillKnight7
Definitely fixable and definitely worth the time if you can do the repair yourself. The fender gaps may never be perfect but if the rest of the car is stout, I'd do the repair and run it into the ground.

Do you have a porta power? Mig welder? You might have to drill some spot welds, straighten the metal, then re weld them.
I would say if he is asking if it can be fixed he isnt comfortable doing it himself
Reply
Old Mar 13, 2012 | 09:41 PM
  #8
GregW's Avatar
~!@#$%^&*()_+
Tenured Member 10 Years

Joined: Oct 2001
Posts: 461
Likes: 0
From: Mpls, MN
That made me laugh
Originally Posted by Rob XX 7
I would say if he is asking if it can be fixed he isnt comfortable doing it himself
To fix it the car needs to go on a frame bench and as stated above needs some major donor parts. To do a good job would cost more than the car is worth monetarily
Reply
Old Mar 14, 2012 | 01:44 AM
  #9
GregW's Avatar
~!@#$%^&*()_+
Tenured Member 10 Years

Joined: Oct 2001
Posts: 461
Likes: 0
From: Mpls, MN
https://www.rx7club.com/members/nocorx7-84294-albums-red-resurrection-4105/
Reply
Old Mar 14, 2012 | 10:08 AM
  #10
PvillKnight7's Avatar
Rotary Freak
Tenured Member: 20 Years
iTrader: (16)

Joined: May 2002
Posts: 2,597
Likes: 3
From: Maryland
Originally Posted by GregW
That made me laugh


To fix it the car needs to go on a frame bench and as stated above needs some major donor parts. To do a good job would cost more than the car is worth monetarily
It doesn't need a good job and I agree it's not worth the time and money to do a good job.

I recommend doing a fair job. Beat that frame straight so the headlight closes and force the fender and bumper cover back into place and call it a day.
Reply
Old Mar 14, 2012 | 06:18 PM
  #11
Rob XX 7's Avatar
FC guy
Tenured Member 20 Years
iTrader: (8)

Joined: Oct 2002
Posts: 8,713
Likes: 17
From: Long Island, New York
that area is like paper, lining up the fender, hood, headlight, and bumper is tougher then you think.

done poorly it will look awful if it even bolts together
Reply
Old Mar 14, 2012 | 08:16 PM
  #12
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
Originally Posted by Rob XX 7
that area is like paper, lining up the fender, hood, headlight, and bumper is tougher then you think.

done poorly it will look awful if it even bolts together
+1, can't tell you how many FC's have an overbite cause the bumper support got bent, and they tried to pull it instead of replace it
Reply
Old Mar 14, 2012 | 09:58 PM
  #13
sbrmechanic's Avatar
Thread Starter
Senior Member

Joined: Jun 2011
Posts: 259
Likes: 0
From: California
Well im planning on pulling it myself and if that doesnt work cutting it and welding a new one on
Reply
Old Mar 14, 2012 | 10:15 PM
  #14
sbrmechanic's Avatar
Thread Starter
Senior Member

Joined: Jun 2011
Posts: 259
Likes: 0
From: California
Originally Posted by j9fd3s
+1, can't tell you how many FC's have an overbite cause the bumper support got bent, and they tried to pull it instead of replace it
Call me a noob but what is overbite? and at this point i dont give a **** about looks just wanna get it back on the road!
Reply
Old Mar 15, 2012 | 09:50 AM
  #15
REAmemiya_fan's Avatar
Passion for Racing

Joined: Aug 2010
Posts: 1,066
Likes: 2
From: Crown Point, Indiana
Where the top of the bumper extends further than the bottom, causing it to look as though it has an 'overbite.'
Reply
Old Mar 15, 2012 | 11:10 AM
  #16
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,833
Likes: 3,232
From: https://www2.mazda.com/en/100th/
Originally Posted by REAmemiya_fan
Where the top of the bumper extends further than the bottom, causing it to look as though it has an 'overbite.'
yes, thanks!
Reply
Old Mar 15, 2012 | 04:50 PM
  #17
Bamato's Avatar
S5 T2
iTrader: (6)

Joined: Jun 2010
Posts: 948
Likes: 0
From: Mesa, AZ
I was also going to mention that the lines up front (especially with pop up headlights) are never going to look the same...
Reply
Old Mar 15, 2012 | 04:55 PM
  #18
sbrmechanic's Avatar
Thread Starter
Senior Member

Joined: Jun 2011
Posts: 259
Likes: 0
From: California
Well if it doesnt rain this weekend ill try out the ome along and post pics of how it went
