Andrizzanizz

iTrader: (1)

anybody have one?

SouthSideSlider

i think Cips FC still has PS cause he said is was almost impossoble to mget to the spark plus with the IC attached and the PS in. you'll have to ask him though.

staticguitar313

iTrader: (2)

plenty of people do, the tubing DOES fit, its just a tight squeeze.

boostedfc3s

iTrader: (2)

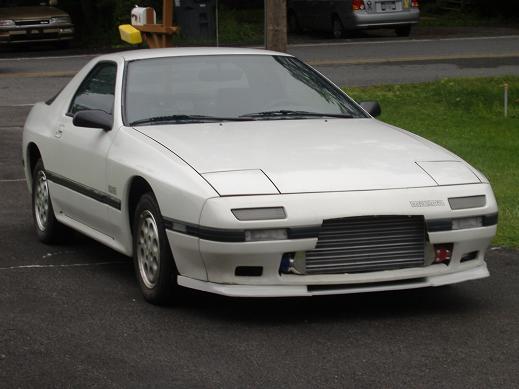

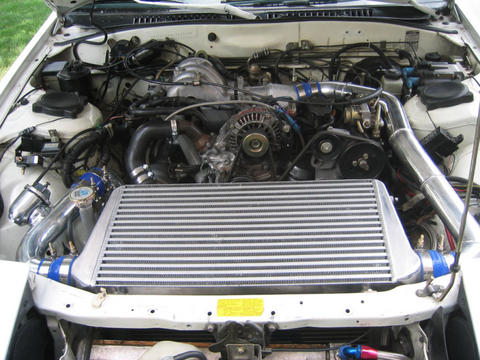

This is as close as I've ever seen to what you want but it's v-mount and this is all custom built, not a kit. Good luck.

Andrizzanizz

iTrader: (1)

well i was thinking about going v-mount but i heard its more expensive. and by the tight squeeze do you mean that my tubing might be pushing up against my front bumper?

FC3Sdrift

iTrader: (5)

just get a set of the old school greddy pipes and intercooler.....theres some for sale on the for sale forum

my motor came with the pipes and i bought a godspeed knock off of the old greddy intercooler....the horns and p/s cooler can stay in their original spots
and you can keep the p/s and a/c because both pipes stay on turbo side of the motor

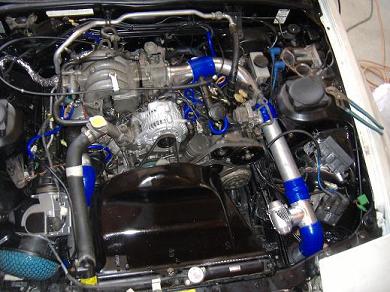

heres a picture of what i'm talkin about

boostedfc3s

iTrader: (2)

I'm not really sure if going v-mount is more exspensive or not. I'm not sure if you can use the stock radiator or if you have to change it do to size ( that pic is of a buddy of mines car, not mine ). I think the " tight squeeze " means getting between the PS and the strut tower. My FMIC piping goes under the PS but I removed my AC.

dawicka2

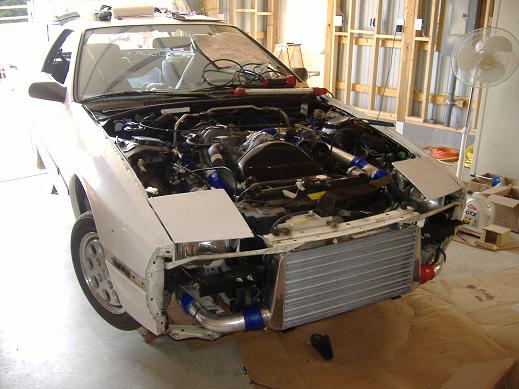

here is my setup. I had to notch the shock tower and welded in a piece of 3.5 inch pipe. Intercooler is an ebay special with 2.5 inch ebay tubing. It was funny because the top intercooler fastening bolts lined up with factory mazda holes in the core support area. I also welded angle iron to replace the old bumper. so it is semi safe. Yup rims are 14 inch 4 lug phone dials, with my old miata tires. Zero traction can be fun sometimes, Plus it keeps my factory se trans, driveshaft, rear and axles happy, for now.

john ny

arghx

iTrader: (3)

Kevin Landers has a discontinued HKS kit I believe that keeps A/C and P/S

classicauto

iTrader: (3)

Its very simple to do.

The current Greddy kit can be made to fit around the PS pump, and there's all kinds of ways to go in between the pump/compressor, the pump and shock tower etc. You're only limited by you imagination if your building it yourself.

Short answer is its been done, very frequently, and with great success.

BrettLinton7

iTrader: (33)

ABCDEfb bought his piping already made to fit for the a/c and p/s. Here's a link to a thread of his...

https://www.rx7club.com/2nd-generation-non-technical-pictures-198/there-56k-blow-away-694444/

Jager

iTrader: (10)

Based off the TeamFC3S site (updated like 5+ years ago), the core is 400X260x65, which is what HKS still has listed on their site. And I haven't seen anyone buy the "new kit" and have it on their car.

So the question is, did anything really change?

I know that in Japan the HKS kit has a different part number then ours and I found THAT kit available at RHD Japan.com.

https://www.rhdjapan.com/jdm/HKS-Typ...45&submit.y=11

And a guy who claims to have THAT kit:
http://forum.teamfc3s.org/attachment...2&d=1086862209

http://forum.teamfc3s.org/attachment...8&d=1086862077

The size also doesn't correspond with HKS USA (vs HKS Japan).

So my question is, is that kit really discontinued? I really want to find out, but shelling out $1300 to be wrong could suck .

Thanks,
Christopher

Jager

iTrader: (10)

That was the anti-helpful.
