Fixing My Warning buzzer

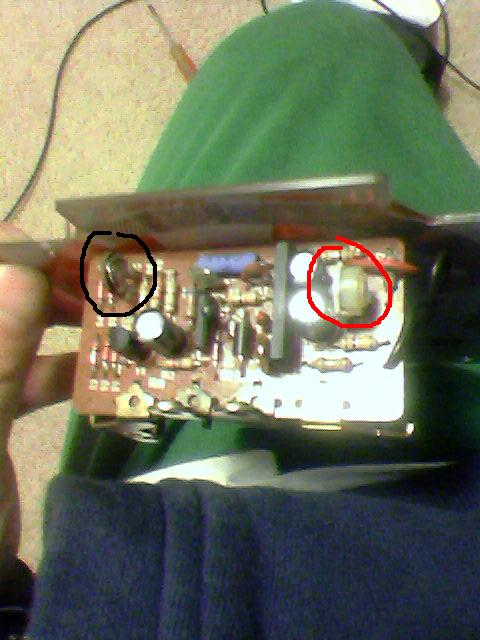

Ive had my 89 GTUs for 5 months now without a working buzzer. So I finally found the time to fix it. According to my search, I found out that the buzzer is located behind the tach on a circuit board which I have already taken out. My question is which one is the buzzer on the board? The one circled red or the other one circled black (in the pic)?
They both seem to have 3 pins soldered to the board. Those are (+),(-), and what is the purpose of the third one?
The one circled in red seems to have some kind of an adjusting screw. Does anybody know the function of that?
They both seem to have 3 pins soldered to the board. Those are (+),(-), and what is the purpose of the third one?
The one circled in red seems to have some kind of an adjusting screw. Does anybody know the function of that?
#2
FD pro licensed driver
iTrader: (3)
Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 2 Likes
on
2 Posts
I have no clue what you have there.. but that is not the main board behind the gauges... there is no buzzer there...
OHHH I see now u think its actually connected to the TACH no no no no
its the green board that u took like 30 screws out of 2 get to the tach. That board.....
hope that helps. and btw its labled buzzer haha its white and square.
OHHH I see now u think its actually connected to the TACH no no no no
its the green board that u took like 30 screws out of 2 get to the tach. That board.....
hope that helps. and btw its labled buzzer haha its white and square.
#5
Junior Member
Thread Starter
Join Date: May 2007
Location: Olympia
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Ok, I ve located the buzzer. Makes much more sense now appearance wise.

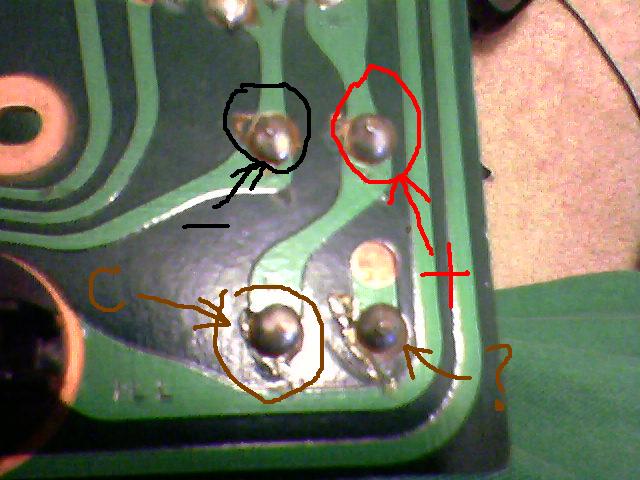

So there are 4 soldering points + - C and the last one i dont know what....
If I get a pizzo buzzer from radio shack and solder it to + and - , the buzzer should be working, correct?
Just want to make everything clear so everything would go smoothly.
So there are 4 soldering points + - C and the last one i dont know what....
If I get a pizzo buzzer from radio shack and solder it to + and - , the buzzer should be working, correct?
Just want to make everything clear so everything would go smoothly.
#6
Lives on the Forum
Why don't you find a good, used unit and just swap them out?
If you want to keep your original OD (i.e. mileage display), can't you just swap that part of the instrument cluster out?
There are always cars being parted out, and instrument clusters are not one of those high-in-demand items that other want.
I think you're asking for trouble just trying to match something Radio Shack has in stock (i.e. wrong voltage? wrong current? wrong impedence?)...
-Ted
If you want to keep your original OD (i.e. mileage display), can't you just swap that part of the instrument cluster out?
There are always cars being parted out, and instrument clusters are not one of those high-in-demand items that other want.
I think you're asking for trouble just trying to match something Radio Shack has in stock (i.e. wrong voltage? wrong current? wrong impedence?)...
-Ted
#7
FD pro licensed driver
iTrader: (3)
Join Date: Feb 2006
Location: Renton/Bellevue/Seattle WA
Posts: 2,897
Likes: 0
Received 2 Likes
on
2 Posts
nope its easy, just get a 12V pizzo buzzer and connect it to the - and + dont worry about the C and other one. Good job.
But like I Said, while you are in there you should put a relay and install a shift light (LED) also.. really helps AND I see the LEDs before I can hear the pizzo. (the buzzer has a slight delay) Also it would allow you to mount the pizzo in a different location if you want to hear it better. (if you have a loud exhaust or you race/drift a lot and have a helmet on.
But like I Said, while you are in there you should put a relay and install a shift light (LED) also.. really helps AND I see the LEDs before I can hear the pizzo. (the buzzer has a slight delay) Also it would allow you to mount the pizzo in a different location if you want to hear it better. (if you have a loud exhaust or you race/drift a lot and have a helmet on.
