fixing my sunroof...so far (pictures)
ok so the other day i took down my headliner and started to look at my sunroof. it didnt look like fun. it made a click when i tried to open it and it didnt open... today i just started unbolting things and this is what i came to.
the picture show what i have found so far.
http://www.fortresshalo.com/wlan/gal...rk-In-Progress
one of the cables gear mechanism wrap thing is bent where it meets the motor gear. from trying to open it it just bent these little gear things on the cable. the gear thats on the motor is in good condition, but needs to be cleaned and re greased. I need to free up the cable, or get a new one somehow. let me know if you have any suggestions on what to do about it...
thanks,
matt
ill be adding more photos later in the day as i make progress.
the picture show what i have found so far.
http://www.fortresshalo.com/wlan/gal...rk-In-Progress
one of the cables gear mechanism wrap thing is bent where it meets the motor gear. from trying to open it it just bent these little gear things on the cable. the gear thats on the motor is in good condition, but needs to be cleaned and re greased. I need to free up the cable, or get a new one somehow. let me know if you have any suggestions on what to do about it...
thanks,
matt
ill be adding more photos later in the day as i make progress.
06-08-05, 09:54 PM
#2
Full Member
Join Date: Dec 2001
Location: Canada
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts

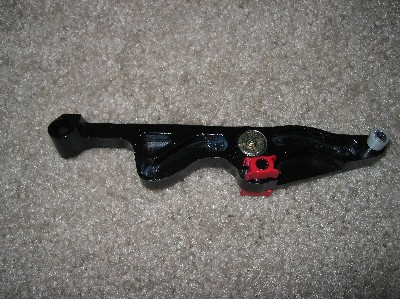

I'm fixing my sunroof this weekend. Was wondering can you remove the guide from the track without removing the interior? Or must you unbolt the track from underneath to remove the guide/link on one side? The link I'm refering to is the piece that attatches to the piece in the guide and tilts before the sunroof opens. Oh here I have a picture. Can I remove the following piece without taking out the headliner. I know this is quite wordy but home you can understand it.
06-08-05, 10:47 PM
#3
MattB
Thread Starter
Join Date: Apr 2005
Location: Haverhill, MA
Posts: 1,124
Likes: 0
Received 0 Likes
on
0 Posts
if your sunroof opens up you might be able to. the sunroof itself its only held on by a c-clip on both sides. if you can get the sunroof part out you might be able to figure out the rest. let me know how it goes because i might have to do the same. i need help freeing up the cable so if anyone can help me with that PLEASE LET ME KNOW!!!
06-09-05, 09:27 AM
#5
Senior Member
Join Date: Oct 2001
Location: new jersey
Posts: 691
Likes: 0
Received 0 Likes
on
0 Posts
To remove the cable, you'll have to slide the cable all the way back until the two black pieces at the forward end of the cable come out of the track. Then pull the cable forward and it'll slide out of the guide tubes. Pay attention to how those two black pieces go into the track and how they fit into each other. I believe that you have to remove the track in order to get those pieces out. You should be able to straighten the bent cable, as long as the gear/wrap thing on the cable isn't worn down/stripped.
06-09-05, 01:29 PM
#6
MattB
Thread Starter
Join Date: Apr 2005
Location: Haverhill, MA
Posts: 1,124
Likes: 0
Received 0 Likes
on
0 Posts
yeah im pretty sure its fixable...i just need the weekend so that i have time to work on it before i have to go to school the next day and its gonna rain. i have a garage but at school i have to park like everyone else and i dont want a wet interior. this weekend i will hopfully get it all working right.
06-09-05, 05:17 PM
#7
MattB
Thread Starter
Join Date: Apr 2005
Location: Haverhill, MA
Posts: 1,124
Likes: 0
Received 0 Likes
on
0 Posts
someone should do a write up on exactly how to take the whole thing apart because i couldnt find one and the FSM isnt clear enough. a lot of people would probably appreciate it.
-Matt
-Matt
Trending Topics
06-09-05, 05:30 PM
#8
Full Member
Join Date: Jun 2004
Location: Pleasanton, CA
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
06-09-05, 11:27 PM
#11
Full Member
Join Date: Dec 2001
Location: Canada
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Matt since you have your whole sunroof assebmly out, can you please take some pictures for me? I'm looking for detailed pictures of how the piece I posted fits into the track. Still deciding if I need to take out the whole assembly. Thanks.
06-10-05, 02:19 AM
#12
R.I.P. Monte Negro FD
iTrader: (1)
Join Date: Feb 2004
Location: NYC & Davie, FL
Posts: 1,099
Likes: 0
Received 0 Likes
on
0 Posts
mines ******* leaks water. well this happend after the 3 hurricans hit me while living in florida. i cleaned the tracks, made sure the water lines were free of debris and ****, but still i get this crazy water leak. well i have a glass moonroof. and i also noticed that it is sitting higher than normal when closed.
06-10-05, 02:13 PM
#13
MattB
Thread Starter
Join Date: Apr 2005
Location: Haverhill, MA
Posts: 1,124
Likes: 0
Received 0 Likes
on
0 Posts
yeah ill take some pictures of how the sunroof goes in and comes out to make it easier for people to figure it out. i thought it was pretty complicated but i started unbolting things and it wasnt too tough
-Matt
-Matt
06-10-05, 03:46 PM
#16
R.I.P. Monte Negro FD
iTrader: (1)
Join Date: Feb 2004
Location: NYC & Davie, FL
Posts: 1,099
Likes: 0
Received 0 Likes
on
0 Posts
yeah well, this glass moonroof when the sun hits it just right, your top of the skull starts to cook jajajajaja. and its heavy too, so i have to always assist the motor in pushing the glass up to open it. lol today i figured out, hopefully what the stupid water leak was. well after the hurricans, i guess the paint cracked just where the front window seal is at. the black strip, well i put a very light bead of silicon and waited for about 2 hours, then i took a hose and sparyed the roof and window.... and booooooowhooooohhhaaaahhhaaaaaa. its works goddamit. lol now i need a new headliner since in my foul mood i ripped the **** to hell lol
sureshot, didnt you see my car at the jacksonville meet like 1 year ago.
i rode up there with the orlando crew, went to some park near a lake i think.
sureshot, didnt you see my car at the jacksonville meet like 1 year ago.
i rode up there with the orlando crew, went to some park near a lake i think.
Last edited by nyc_scorpio; 06-10-05 at 03:53 PM.
06-20-05, 06:49 PM
#18
MattB
Thread Starter
Join Date: Apr 2005
Location: Haverhill, MA
Posts: 1,124
Likes: 0
Received 0 Likes
on
0 Posts
well...i kinda got lazy and worked on engine stuff instead. i had some major problems with my idle and im still have a TPS problem. cant get it adjusted correctly and its a bitch when i have to take my intercooler off each time i have to readjust it...frustrating
06-20-05, 07:01 PM
#19
I R SAD PANDA W/O BAW
Originally Posted by MattB
well...i kinda got lazy and worked on engine stuff instead. i had some major problems with my idle and im still have a TPS problem. cant get it adjusted correctly and its a bitch when i have to take my intercooler off each time i have to readjust it...frustrating
