Hello all, the odometer gremlin got me recently. First it was intermittent flashing, and now my speedo and tach died. Power fc will show rpm still but no speed as well.

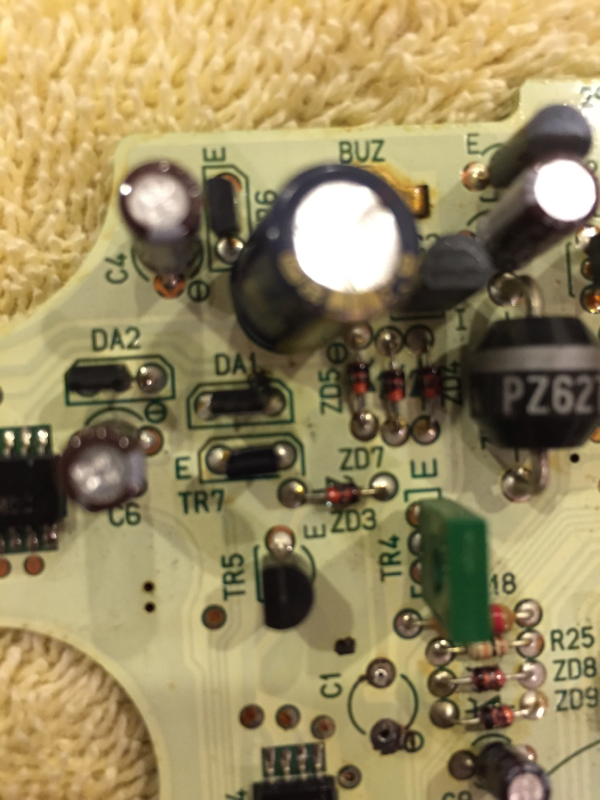

Read the speedo fix threads bought caps etc. once I cracked it open. I noticed part DA1 next to the C3 big cap that goes out also had a 'burn'.

Can anyone have the navigation skills to ID this part on digi key? I didn't see it on any of the big linked threads.






Thanks.



I actually just had mine apart resoldering some things and wrote down the numbers on DA1, DA2, and TR7. The lines are going to represent the edges of the part. 2 of them have 2 lines and the last one I couldn't read the bottom line.

DA1 - |P209|
|S C|

TR7 - |C144|
| ESB |

DA2 - |A218|
| |



Without better pictures of what it looks like, it's difficult to identify. Try using this as a guide to identify what it is. Electronic component ID guide. After you determine what it is, usually you can search the standardized part number to figure out its breakdown and specs. Once you know exactly what it is, I usually head to Mouser to buy my components. I find the website slightly easier to use.

Matt
