FD Calipers on a FC Turbo II

Old 01-14-13, 03:40 PM
  #1
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post
MD FD Calipers on a FC Turbo II

Ok so i just got these FD Calipers Front and Rear,And was wondering a couple thing's i no the Calipers up front will bolt right on no mods needed,And im running the FC rotors up front so there should be no Problem with fitment as far as that's concerned,My Qusetion is will the rear calipers bolt up? And im going to upgrade to Stainless Lines so id need to Know if i need the FD Stainlees Lines or the FC Lines when going about buying,I Know i no of a couple peolpe whom have done this on here but i couldnt find anything on the rears or the lines being the same,Any Help would be Great.
streetport 7 is offline
Old 01-15-13, 11:51 AM
  #2
Beast Mode
10 Year Member
iTrader: (8)

trueimport's Avatar

Join Date: Mar 2002
Location: USA!
Posts: 820
Likes: 0
Liked 0 Times in 0 Posts
I was just thinking about this same upgrade and would like to know the same thing. Would the rotors be a direct swap too?
trueimport is offline
Old 01-15-13, 01:12 PM
  #3
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,394
Likes: 0
Liked 108 Times in 98 Posts
the front calipers are almost the same, so they just go right on. the rears i'm not sure about, but they use the same pad and caliper piston size, so i don't think there would be any difference, or advantage to using Fd calipers in the rear.

the FD has a different offset on the rotors so they won't swap over
j9fd3s is offline
Old 01-15-13, 03:54 PM
  #4
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post
Yeah i talked with someone at Mazda Trix yesterday and he said pretty much the same thing the Fronts were a directed Swap but the rear's are not so,My plan is to use the front FD calipers up Front and used the FC rotors up front and leave the back the way it is except for upgrading the Lines and running some Hawk HPS pads!
streetport 7 is offline
Old 01-15-13, 05:58 PM
  #5
talking head
5 Year Member

bumpstart's Avatar

Join Date: Apr 2008
Location: Perth, WA, OZ
Posts: 2,775
Likes: 0
Liked 2 Times in 2 Posts
i thought the FD caliper has a different PCD.. so doesnt bolt to the same mounts
.. the main change has the internal crossover port now built into the raised pad that has the mazda font.. when in FC it was a small cast lump.. which limited some wheel choices
bumpstart is offline
Old 01-15-13, 11:56 PM
  #6
Senior Member
iTrader: (1)

NYsNumba1Man's Avatar

Join Date: Jun 2009
Location: NYC
Posts: 371
Likes: 0
Liked 0 Times in 0 Posts
What are the advantages of FD calipers? I'm about to upgrade my stock brakes but if FD brakes are better I may just swap the fronts
NYsNumba1Man is offline
Old 01-16-13, 05:41 AM
  #7
Cake or Death?
iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,168
Liked 22 Times in 19 Posts
The casting looks different.
FD/FC calipers use the same brake pads and rebuild kits, so there's no mechanical advantage either way.
clokker is offline
Old 01-16-13, 09:17 PM
  #8
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post
Il Post some pics here soon of the install before and after!
streetport 7 is offline
Old 01-30-13, 07:15 PM
  #9
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post
MD rx7 fd calipers on a fc

He are the pics as promised,The FD Calipers bolted right up,No modifacations needed.
Attached Thumbnails FD Calipers on a FC Turbo II-rx-7-fd-front-calipers-001.jpg   FD Calipers on a FC Turbo II-rx-7-fd-front-calipers-002.jpg   FD Calipers on a FC Turbo II-rx-7-fd-front-calipers-003.jpg
streetport 7 is offline
Old 01-30-13, 08:02 PM
  #10
Retired Moderator, RIP
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,758
Likes: 0
Liked 96 Times in 83 Posts
Is there full pad contact?
I though the Fd calipers would have an overlap onto the outer edge of the rotor.
misterstyx69 is offline
Old 01-31-13, 09:45 AM
  #11
Apprentice Tech.
5 Year Member
iTrader: (5)

marshall13B's Avatar

Join Date: Nov 2005
Location: Marysville, Wa
Posts: 484
Likes: 0
Liked 0 Times in 0 Posts
Well they definitely look better than the FC. Much cleaner/modern look to them.
marshall13B is offline
Old 12-30-13, 03:43 PM
  #12
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post
I no This post is a bit old but havnt drove the car all that much since the Caliper swap and I been noticeing a faint line on the front rotors its not grooved but its like the front caliper pads aren't making full contact with the rotors up front it stops fine just not sure whats causing this problem any help or suggestions to fix this problem would be great!
streetport 7 is offline
Old 12-30-13, 05:33 PM
  #13
Tui
Banned. I got OWNED!!!
iTrader: (2)

Join Date: Oct 2013
Location: California
Posts: 315
Likes: 0
Liked 0 Times in 0 Posts
Pictures?
Tui is offline
Old 12-30-13, 06:59 PM
  #14
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post
I"ll get some here tonight or Tomorrow.
streetport 7 is offline
Old 12-30-13, 07:19 PM
  #15
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post

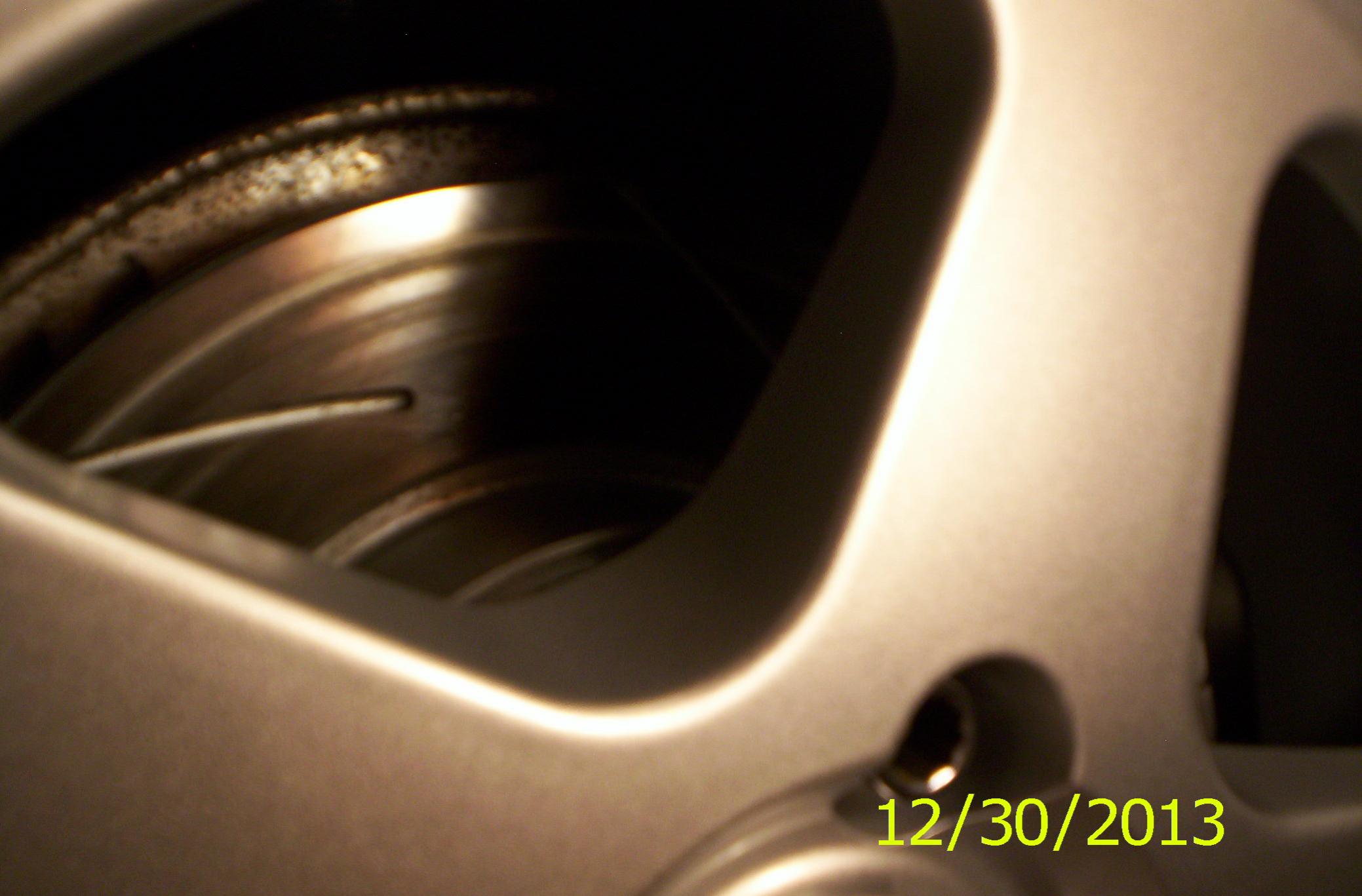

MD FD Front Brake Caliper Issues

FD Front Brake Calipers issues
Attached Thumbnails FD Calipers on a FC Turbo II-rx7-fc-brake-issues-003.jpg
streetport 7 is offline
Old 12-30-13, 07:22 PM
  #16
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post
Heres the pic! Like I said its not grooved as in if you run your hand over it,You cant feel it. Just trying to figure out why this is happening. car brakes fine no squeals or noise at all.
streetport 7 is offline
Old 12-30-13, 07:59 PM
  #17
Senior Member

Join Date: Apr 2009
Location: Lynchburg, VA
Posts: 293
Liked 0 Times in 0 Posts
Looks like you have something wedged or a hard spot in the pad. Is the spot raised or is it recessed into the rotor?
Craze8 is offline
Old 12-30-13, 08:13 PM
  #18
HKS obsessed
5 Year Member
iTrader: (7)

blackedoutFC3S's Avatar

Join Date: Mar 2008
Location: OP, KS
Posts: 1,529
Likes: 0
Liked 0 Times in 0 Posts
Is it happening on both rotors? Just bought a pair of FD front calipers for my 5 lug swap so hoping this is not the case.
blackedoutFC3S is offline
Old 12-30-13, 08:23 PM
  #19
FC guy
iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,663
Liked 9 Times in 9 Posts
Check the clips
Rob XX 7 is offline
Old 12-30-13, 08:42 PM
  #20
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post
Its not Raised it recessed but you cant feel it when you run your finger over it. It's on both front rotors as well.i don't understand everything bolts up just like the FC Calipers ***** got me puzzeled lol. All the clips are on.
streetport 7 is offline
Old 12-30-13, 08:47 PM
  #21
Senior Member
iTrader: (1)

FC3S driver's Avatar

Join Date: Nov 2002
Location: Olympia, WA
Posts: 277
Likes: 0
Liked 0 Times in 0 Posts
has to be something with the pads. I have had fd calipers on my car for years now with out any problems
FC3S driver is offline
Old 12-30-13, 09:05 PM
  #22
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post
Im running Hawk HPS Pads as well.
streetport 7 is offline
Old 12-31-13, 05:58 AM
  #23
FC guy
iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,663
Liked 9 Times in 9 Posts
Originally Posted by streetport 7 View Post
Its not Raised it recessed but you cant feel it when you run your finger over it. It's on both front rotors as well.i don't understand everything bolts up just like the FC Calipers ***** got me puzzeled lol. All the clips are on.
Ive had clips shift a little bit and make slight contact with the rotor, sometimes only when the brakes were applied and they would shift over a little bit, peening them over would lock them in place better
Rob XX 7 is offline
Old 01-01-14, 05:53 PM
  #24
Street port-7
Thread Starter
iTrader: (71)

streetport 7's Avatar

Join Date: Dec 2007
Location: Maryland
Posts: 400
Liked 1 Time in 1 Post
Ok Thanks Bro, I'll check that out and see if that is what the problem is.
streetport 7 is offline
Old 01-02-14, 07:00 PM
  #25
NASA-MW ST3
iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Chicagoland
Posts: 3,796
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Rob XX 7 View Post
Ive had clips shift a little bit and make slight contact with the rotor, sometimes only when the brakes were applied and they would shift over a little bit, peening them over would lock them in place better
This happens to me all the time when I install the pads on the wrong sides on single sided calipers.
farberio is offline
