Exhaust sleeve swap, sleeve won't fit into housing
So the plan was to swap an S4 T2 exhaust sleeve into an S5 NA housing, cause the S4 housing was junk and the other one was an S5 T2. So I got em out, dropped everything off to get ported, and now the guy porting the housing, jacob cartmill, is saying the sleeves are a different size. Do I need to use an S5 T2 sleeve or just have something machined? I'll get a pic up when I recieve it from him.
TehMonkay is offline
Reply Like
Old 01-27-09, 07:48 PM
  #2
Back in the game

Thread Starter
iTrader: (-1)

TehMonkay's Avatar

Join Date: Nov 2005
Location: Louisville KY
Posts: 2,456
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by TehMonkay
So the plan was to swap an S4 T2 exhaust sleeve into an S5 NA housing, cause the S4 housing was junk and the other one was an S5 T2. So I got em out, dropped everything off to get ported, and now the guy porting the housing, jacob cartmill, is saying the sleeves are a different size. Do I need to use an S5 T2 sleeve or just have something machined? I'll get a pic up when I recieve it from him.
Ok, dont have pictures up yet. The flange on the sleeve is what's too thick though, the back side of it, i'm thinking i might need to just go to a machine shop?
TehMonkay is offline
Reply Like
Old 01-27-09, 07:59 PM
  #3
NASA-MW ST4

iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Norcal, Bay Area
Posts: 3,800
Likes: 0
Received 3 Likes on 3 Posts
Bingo, bring the housing along and they will figure it out.

Just make sure that the roll pin holes line up before you accept their work.
farberio is offline
Reply Like
Old 01-28-09, 05:13 AM
  #4
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,825
Received 308 Likes on 180 Posts
Originally Posted by Samuel L Jackson

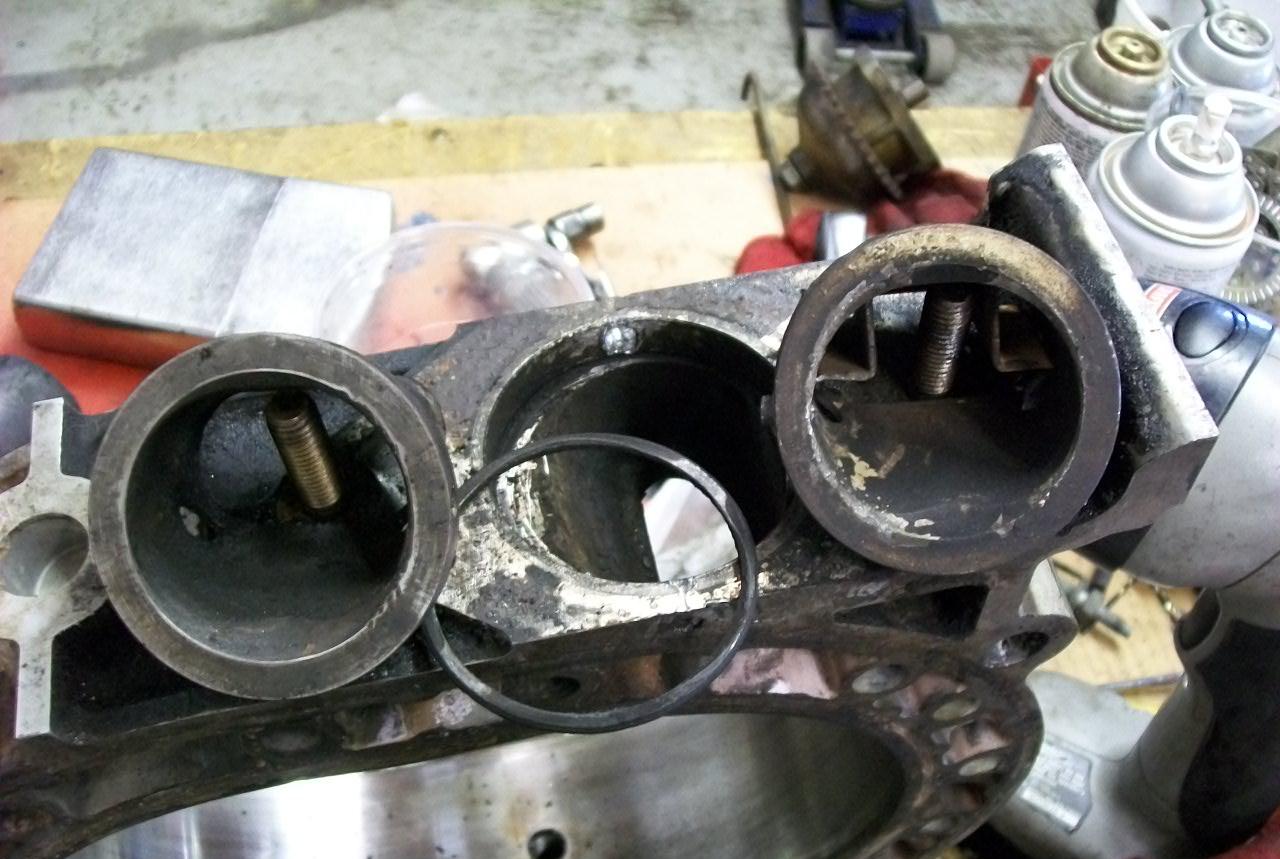

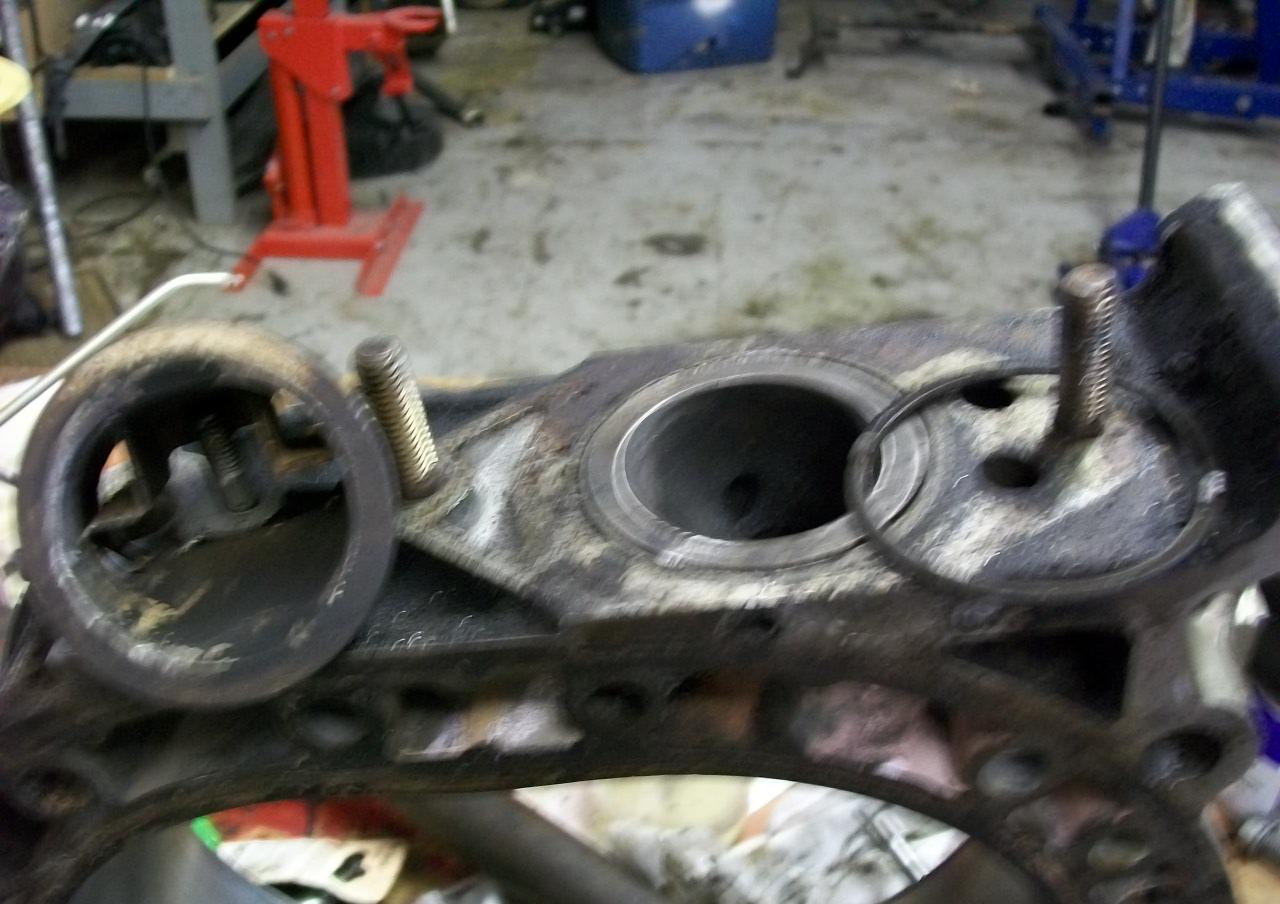

There's a thin spacer ring in the NA housings behind the sleeves that also has to come out before the turbo sleeve can fit in.
Exactly. It is usually held in with a bunch of carbon. Just tap it with a screwdriver and it will pop right out. Then the TII sleeve will fit flush.
Banzai-Racing is offline
Reply Like
Old 08-11-09, 01:27 PM
  #5
My job is to blow **** up

iTrader: (8)

lastphaseofthis's Avatar

Join Date: Jan 2005
Location: palmyra Indiana
Posts: 2,900
Received 3 Likes on 3 Posts
Archive This! And Thanks banzai!
Attached Thumbnails Exhaust sleeve swap, sleeve won't fit into housing-100_0260.jpg   Exhaust sleeve swap, sleeve won't fit into housing-100_0261.jpg
