Excessive rear tire wear, stumped!
08-31-13, 07:04 AM
#1
Excessive rear tire wear, stumped!
I have been burning through rear tires like crazy. I get maybe 1000 miles from a set of good used tires before there are wires showing. I refuse to buy new tires until I figure it out.
They wearing on the inside edges(camber wear). I've been under the car and can't see anything obvious or loose.
Relevant things to mention, shocks were replaced last year, running 17'' mustang rims with centering rings.
There is a light vibration coming from the rear and I haven't been able to figure out what it was. I found that my driveshaft bolts were loose/missing, and that's been addressed but there is still something going on back there. Like I said, can't feel/see anything obvious under the car. I'll be taking the car to get a full alignment tonight, but as far as I know the only factory adjustment in the rear is toe in/out.

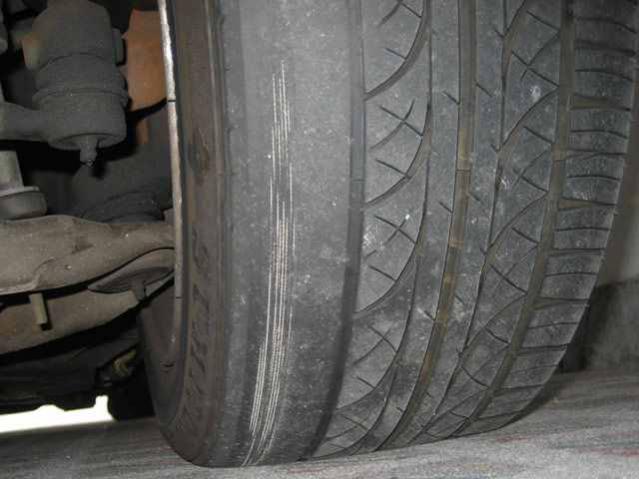

Attached is a pic of what my wear looks like. It's not my pic, but it's identical to how my tires are wearing. Thanks for any advice.
They wearing on the inside edges(camber wear). I've been under the car and can't see anything obvious or loose.
Relevant things to mention, shocks were replaced last year, running 17'' mustang rims with centering rings.
There is a light vibration coming from the rear and I haven't been able to figure out what it was. I found that my driveshaft bolts were loose/missing, and that's been addressed but there is still something going on back there. Like I said, can't feel/see anything obvious under the car. I'll be taking the car to get a full alignment tonight, but as far as I know the only factory adjustment in the rear is toe in/out.
Attached is a pic of what my wear looks like. It's not my pic, but it's identical to how my tires are wearing. Thanks for any advice.
08-31-13, 09:09 AM
#5
I'm pretty easy on her actually. Stock ride height too.
I replaced the bushings on the toe adjusters when I did the shocks last year also.
Trending Topics
08-31-13, 11:15 PM
#8
Anti-Hero
It's your wheels. With you having wider wheels with spacers it is putting your wheels out more putting most of the weight on the inside edge of the tire.
. I've been an alignment tech about three years.
. I've been an alignment tech about three years.
09-01-13, 09:32 AM
#12
Anti-Hero
Alignment with weight in car. Many guys are using specs with their suspension manufactures sent them. Your using stock specs which include stock height, weight, wheels, and tire size.
09-01-13, 10:41 AM
#13
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
you need to have the alignment of the car checked, otherwise you are just guessing.
09-01-13, 12:10 PM
#14
i would check the rear steer bushings before the alignment.
jack up the car and push/pull the wheel horizontally/vertically to see if there is any play in any direction. if there is horizontal play then the DTSS bushings are probably gone.
wider/more offset wheels do not create this problem, worn components do. i have 285X9.5 +35s on my car and there is no discernable amount of additional wear.
jack up the car and push/pull the wheel horizontally/vertically to see if there is any play in any direction. if there is horizontal play then the DTSS bushings are probably gone.
wider/more offset wheels do not create this problem, worn components do. i have 285X9.5 +35s on my car and there is no discernable amount of additional wear.
09-01-13, 01:01 PM
#15
Full Member
iTrader: (1)
Join Date: Jun 2009
Location: Phoenix
Posts: 149
Likes: 0
Received 0 Likes
on
0 Posts
Toe related problems are about the only thing that can shred tires that fast, well except non stop burn outs. Camber will cause faster inside wear but no where near 1000 miles a set of tires bad.
09-01-13, 01:07 PM
#16
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
keep in mind he is starting with used tires, so this isn't 1000miles from new, its 1000 miles from ???
09-01-13, 01:26 PM
#18
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,835
Received 2,604 Likes
on
1,847 Posts
09-01-13, 02:01 PM
#19
Answered already. No.
Seeing as the camber is out equally on both sides, I think I'm going to install the adjustment rod from Mazdatrix. Hope that solves it...
All the rear vibration disappeared after fixing the toe, it's like night and day difference. Still got some upfront, that's from a blown shock and one bad tie rod end.
Seeing as the camber is out equally on both sides, I think I'm going to install the adjustment rod from Mazdatrix. Hope that solves it...
All the rear vibration disappeared after fixing the toe, it's like night and day difference. Still got some upfront, that's from a blown shock and one bad tie rod end.
09-01-13, 06:12 PM
#21
Full Member
iTrader: (1)
Join Date: Jun 2008
Location: Delaware
Posts: 112
Likes: 0
Received 0 Likes
on
0 Posts
Mine doesn't wear the rears out quite that fast, but with 133,000 on it the rear camber was right around -1.9 degrees. That's on a 90 GXL with stock AAS. I'm planning on going in and replacing the DTSS bushings and adding in an adjustable camber link.
