Ever a 200 HP NA?
06-17-04, 05:07 PM
#76
Lives on the Forum
Originally posted by wpgrexx
I have a dyno sheet he gave me that showed it having 161 hp and 159 torque but the funny thing is the corresponding A/F ratio for the same pull has it running very rich. Lots of room for improvement. the torque and hp are almost identical lines.
I have a dyno sheet he gave me that showed it having 161 hp and 159 torque but the funny thing is the corresponding A/F ratio for the same pull has it running very rich. Lots of room for improvement. the torque and hp are almost identical lines.
What kinda exhaust are you running?
There is only so much you can do with the porting, and I have a feeling the exhaust system has a lot to do with the high torque numbers...
-Ted
06-18-04, 09:35 AM
#77
Rotary Enthusiast
Join Date: Dec 2001
Location: not in winterpeg anymore
Posts: 1,350
Likes: 0
Received 0 Likes
on
0 Posts
I will post it in a minute. The setup when it was in Jimi325i's car when he dynoed it was collected header, single exhaust no cats, gasket matched intake manifolds and a cone filter. Apexi safc set at - 3% across the board. He sadi the dyno operator was a moron and kept adding dinking around with the safc and didn't know what he was doing.
06-18-04, 09:54 AM
#78
06-18-04, 10:00 AM
#79
Rotary Enthusiast
Join Date: Dec 2001
Location: not in winterpeg anymore
Posts: 1,350
Likes: 0
Received 0 Likes
on
0 Posts

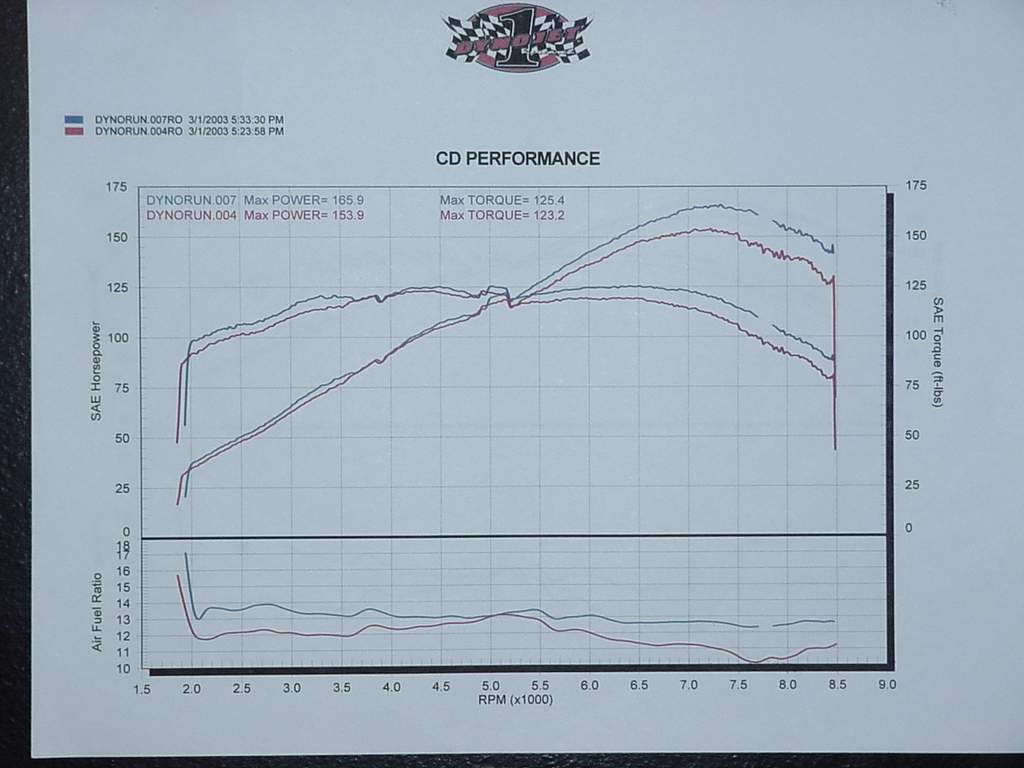

no mistake bro! Here is a dyno sheet, the only one I have with a/f ratios, I have another run sheet with a little different numbers, but really close to this one.
http://www.teamfc3s.org/forum/member...hp?img_id=3975
http://www.teamfc3s.org/forum/member...hp?img_id=3975
06-18-04, 02:17 PM
#80
casio isn't here.
Join Date: Sep 2002
Location: Greenpoint, Brooklyn
Posts: 3,332
Likes: 0
Received 0 Likes
on
0 Posts
that dyno sheet looks to show two horsepower and a/f readings, no torque. i'm just glad your car stayed on the dyno with the earthquake that occured at 4500rpm.
06-18-04, 06:02 PM
#81
Lives on the Forum
Originally posted by wpgrexx
I will post it in a minute. The setup when it was in Jimi325i's car when he dynoed it was collected header, single exhaust no cats, gasket matched intake manifolds and a cone filter. Apexi safc set at - 3% across the board. He sadi the dyno operator was a moron and kept adding dinking around with the safc and didn't know what he was doing.
I will post it in a minute. The setup when it was in Jimi325i's car when he dynoed it was collected header, single exhaust no cats, gasket matched intake manifolds and a cone filter. Apexi safc set at - 3% across the board. He sadi the dyno operator was a moron and kept adding dinking around with the safc and didn't know what he was doing.
What size was the pipes on the rest of the exhaust system?
-Ted
06-18-04, 07:13 PM
#82
Rotary Enthusiast
Thread Starter
Join Date: Oct 2002
Location: California, Bay Area
Posts: 1,165
Likes: 0
Received 0 Likes
on
0 Posts
theres no torque on that dyno run.......and based on the power curve he's not making crazy torque.. i checked 3 rpm points and he's not making over 125 ft/lbs.. and he's got a crazy lean spike at the secondary injector switch over point...
06-18-04, 07:31 PM
#83
Rotary Enthusiast
Join Date: Dec 2002
Location: Darwin, NT, Australia
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
I know you said PP's don't count in this thread drago86, but come on, this is quite impressive none the less.
a quote from pp13bnos, i just stumbled across this in This thread.
"I was making 130ish rwhp@4,500rpms and nearly 150ftlbs of torque@4,500rpms.. Thats more than a stock 2nd gen puts down at peak power.
CJ"
130rwhp@only 4.5kRpms is pretty damm good I think...
I think i've just decided i'm going to stop wasting my dremel pieces on my irons and start killing some hole saws instead for this rebuild i'm doing now.
FWIW, it's also interesting what was said about bucking problems..
"Not to mention, with a full PP motor, you don't get a low RPM "bucking" as with alot of large bridge ported motors. "
Sounds like that'll be a go instead of a bridgeport I think.
a quote from pp13bnos, i just stumbled across this in This thread.
"I was making 130ish rwhp@4,500rpms and nearly 150ftlbs of torque@4,500rpms.. Thats more than a stock 2nd gen puts down at peak power.
CJ"
130rwhp@only 4.5kRpms is pretty damm good I think...
I think i've just decided i'm going to stop wasting my dremel pieces on my irons and start killing some hole saws instead for this rebuild i'm doing now.
FWIW, it's also interesting what was said about bucking problems..
"Not to mention, with a full PP motor, you don't get a low RPM "bucking" as with alot of large bridge ported motors. "
Sounds like that'll be a go instead of a bridgeport I think.
06-19-04, 10:34 AM
#84
Rotary Enthusiast
Join Date: Dec 2001
Location: not in winterpeg anymore
Posts: 1,350
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by casio
that dyno sheet looks to show two horsepower and a/f readings, no torque. i'm just glad your car stayed on the dyno with the earthquake that occured at 4500rpm.
that dyno sheet looks to show two horsepower and a/f readings, no torque. i'm just glad your car stayed on the dyno with the earthquake that occured at 4500rpm.
Yes thats quite the spike at 4500. Jimmi told me that the operator really had no clue what to tune.
Ted- I have no idea what brand header it was, or the pipe diameter. You would have to check with Jimmi325i. I did not use his exhaust system, in na trim I used true duals.
06-19-04, 10:50 AM
#85
casio isn't here.
Join Date: Sep 2002
Location: Greenpoint, Brooklyn
Posts: 3,332
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by wpgrexx
If you read it said that that is the sheet showing a/f ratios.
If you read it said that that is the sheet showing a/f ratios.
06-19-04, 01:22 PM
#86
Full Member
iTrader: (1)
Join Date: Feb 2003
Location: Campbell, CA
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
As far as the cost of a standalone ecu being somewhat of a road block for the average person wanting to make a fast NA, MegaSquirt might be the answer. I'm pretty sure Mazdaspeed7 has built one already. I'm waiting for the UltraMegaSquirt, then its go time.
06-19-04, 02:01 PM
#88
Rotary Enthusiast
Join Date: Dec 2001
Location: not in winterpeg anymore
Posts: 1,350
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by casio
i did read it, you said it was the only dyno with a/f ratios. everyone is curious about the torque, so i thought that's what you were trying to post. when i think of a dyno sheet, i think of a horsepower line and a torque line. that's all.
i did read it, you said it was the only dyno with a/f ratios. everyone is curious about the torque, so i thought that's what you were trying to post. when i think of a dyno sheet, i think of a horsepower line and a torque line. that's all.
Again these were done when Jimmi325i had the motor so please don't ask me about the runs.
here is the only other I can find from Jimmi325i
http://www.teamfc3s.org/forum/member...hp?img_id=3974
06-19-04, 03:13 PM
#89
casio isn't here.
Join Date: Sep 2002
Location: Greenpoint, Brooklyn
Posts: 3,332
Likes: 0
Received 0 Likes
on
0 Posts
hah, okay man, i read it the first time, then i read your and his replies again. A/Fs weren't mentioned that much. not enough to be called a "discussion" in my opinion. i dont really care though, so i'm dropping it.
as for your dynosheet, it says 155 for max tq, but that refers to the catastrophic spike, the actual torque seems to peak around 130.
as for your dynosheet, it says 155 for max tq, but that refers to the catastrophic spike, the actual torque seems to peak around 130.
10-20-04, 02:04 PM
#90
No longer cares
Join Date: Apr 2002
Location: just a bit north of your business
Posts: 1,345
Likes: 0
Received 0 Likes
on
0 Posts
2.5" straight pipe off the RB collected streetable header.
3pts rich across the board too boys... She was making those numbers being flooded.
3pts rich across the board too boys... She was making those numbers being flooded.
10-20-04, 02:23 PM
#91
Originally Posted by drago86
Just wondering, for the people who have been around longer then me, has there ever been an NA to hit 200 rwhp? Highest ive seen has been 182 from 13bppnos, and 174 from Icemark. Others have looked promising, like Mazdaspeed7, jimi (forgot whole name) and Judge Ito's full bridge 6-port (crashed before dyno, but it beat a t2..), and various other people, but not dynos ever turn up. So whats the official Rx7club verifyed NA rwhp record? (RETed's 3 rotor and the PP's doent count)
I believe it was around 274bhp on a 2 rotor PP with a carb setup.
10-20-04, 03:08 PM
#93
i am not a girl
iTrader: (13)
Join Date: Aug 2001
Location: CT
Posts: 1,916
Likes: 0
Received 0 Likes
on
0 Posts

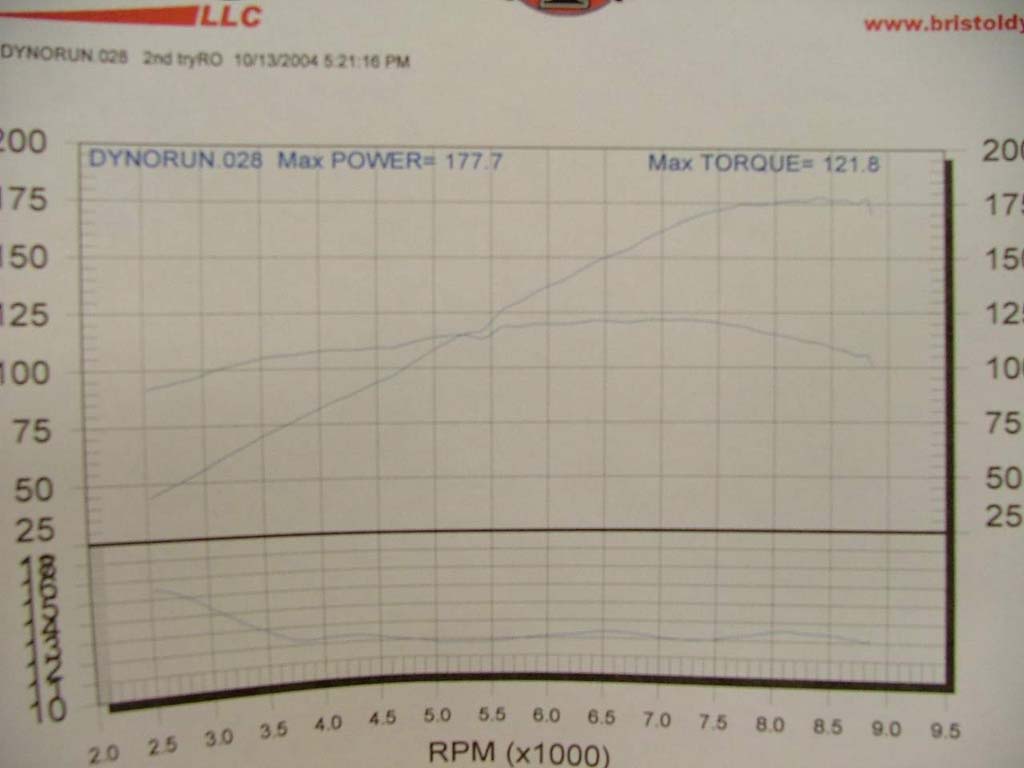

custom intake manifold, stock ports, haltech e6k, stock header, 2.5 inch exhaust, 87 octane, NOT finished tunning and yet to get a real header.
stay tuned, until the next dyno
stay tuned, until the next dyno
