Diff. Identification
#1
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Diff. Identification

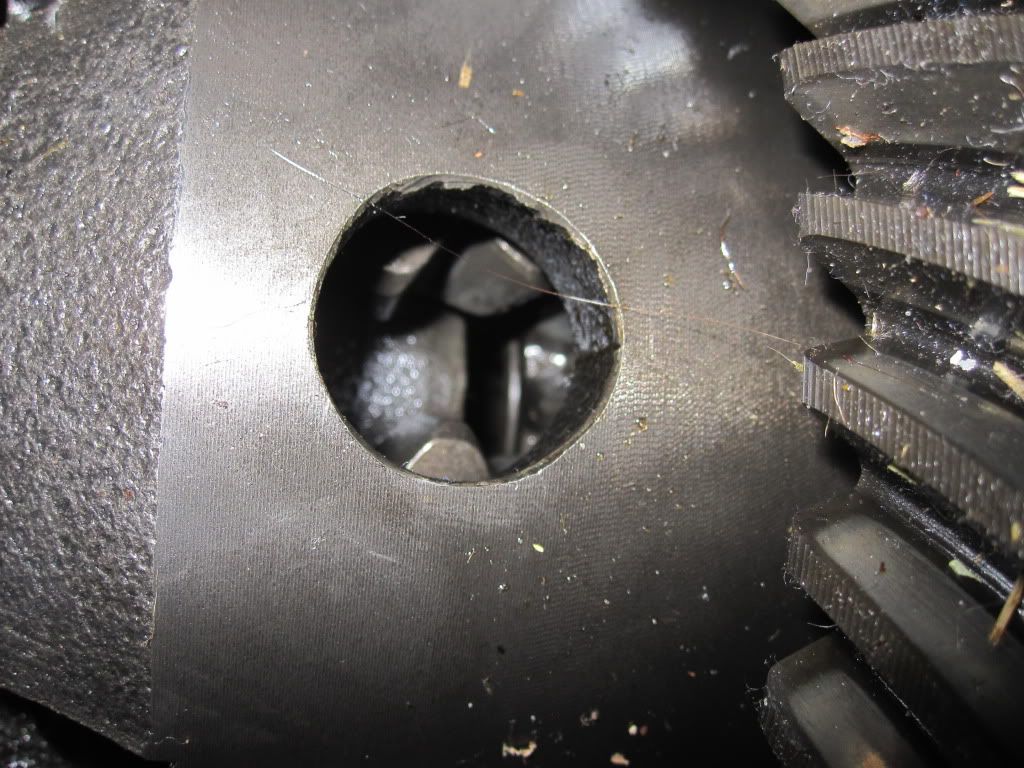

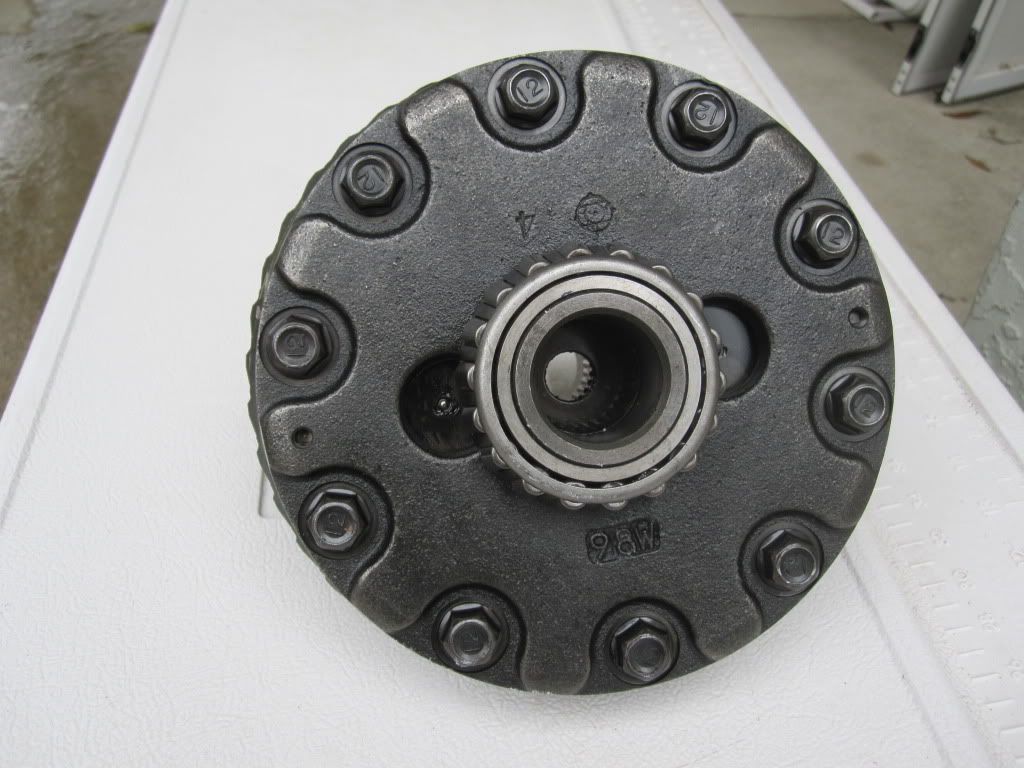

Wondering if anyone could identify this diff. for me. Was told it was an S4 TII Limited slip. Please Help me before i actually install it. Thanks!
#2
Sharp Claws
iTrader: (30)
the hair tells me that it looks like a viscous, since there is nowhere to pull it apart to to change the clutches.
but honestly i'm not sure. that part is interesting though, as i recall i thought the clutch type had windows like most domestics for side gear installation.
nm, it's rear loaded. i'm seeing if i can find any other identifying markings on later model units.
but honestly i'm not sure. that part is interesting though, as i recall i thought the clutch type had windows like most domestics for side gear installation.
nm, it's rear loaded. i'm seeing if i can find any other identifying markings on later model units.
#3
Sharp Claws
iTrader: (30)
since i can't remember exactly what the differences were from externally visual, it's been a while, i just am linking to a clutch type rebuild thread with detailed pictures. it may be for a GSL-SE but the general assembly should look almost identical to those pictured.
https://www.rx7club.com/1st-gen-archive-71/drivetrain-lsd-shot-need-rebuild-kit-581550/
https://www.rx7club.com/1st-gen-archive-71/drivetrain-lsd-shot-need-rebuild-kit-581550/
#4
#6
Sharp Claws
iTrader: (30)
did you even look at the thread i linked and look for the clutch "sandwich"? it does look like a clutch type S4, an n/a won't fit in the case, it's too small.
in all honesty you shouldn't be tossing it in anyways without doing the suggestions in that thread. even at low mileage these clutch diff's have weak spring tension on the clutch packs due to age and will be fairly weak for traction. what you do need is to verify that it is a turbo diff case and not an n/a. i don't have exact ring and pinion measurements but i'm sure there should be something in the FSM to help you identify it such as ring dimensions.
this is especially important since i'm sure this is being upgraded from the weaker torsen type diff due to power restraints. the more you slip the clutches due to power and launching the faster it will wear to the point that it will need a full rebuild and these diffs aren't cheap to rebuild(no aftermarket clutch suppliers that i have heard of, OE parts are $550-700 for just the simple clutch pack). mine has made it over 200k miles and still somewhat grips but it sure isn't happy when i do get on the throttle, i do dread going into it so you may as well think of doing it before installing it.
in all honesty you shouldn't be tossing it in anyways without doing the suggestions in that thread. even at low mileage these clutch diff's have weak spring tension on the clutch packs due to age and will be fairly weak for traction. what you do need is to verify that it is a turbo diff case and not an n/a. i don't have exact ring and pinion measurements but i'm sure there should be something in the FSM to help you identify it such as ring dimensions.
this is especially important since i'm sure this is being upgraded from the weaker torsen type diff due to power restraints. the more you slip the clutches due to power and launching the faster it will wear to the point that it will need a full rebuild and these diffs aren't cheap to rebuild(no aftermarket clutch suppliers that i have heard of, OE parts are $550-700 for just the simple clutch pack). mine has made it over 200k miles and still somewhat grips but it sure isn't happy when i do get on the throttle, i do dread going into it so you may as well think of doing it before installing it.
#7
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
I did scan through the thread you linked and it does appear to be a clutch type diff, what I would like to know is whether or not it's from a T2. It's definitely a low mileage unit and does not need to be rebuilt.
I can't believe that no one in the entire FC universe has a picture of their s4 t2 diff? There used to be a great write up on a miata site full of pics but it's unfortunately down.
I can't believe that no one in the entire FC universe has a picture of their s4 t2 diff? There used to be a great write up on a miata site full of pics but it's unfortunately down.
